High Sensitivity ±30g Accelerometer Sensor For Industrial Applications

Product Description:

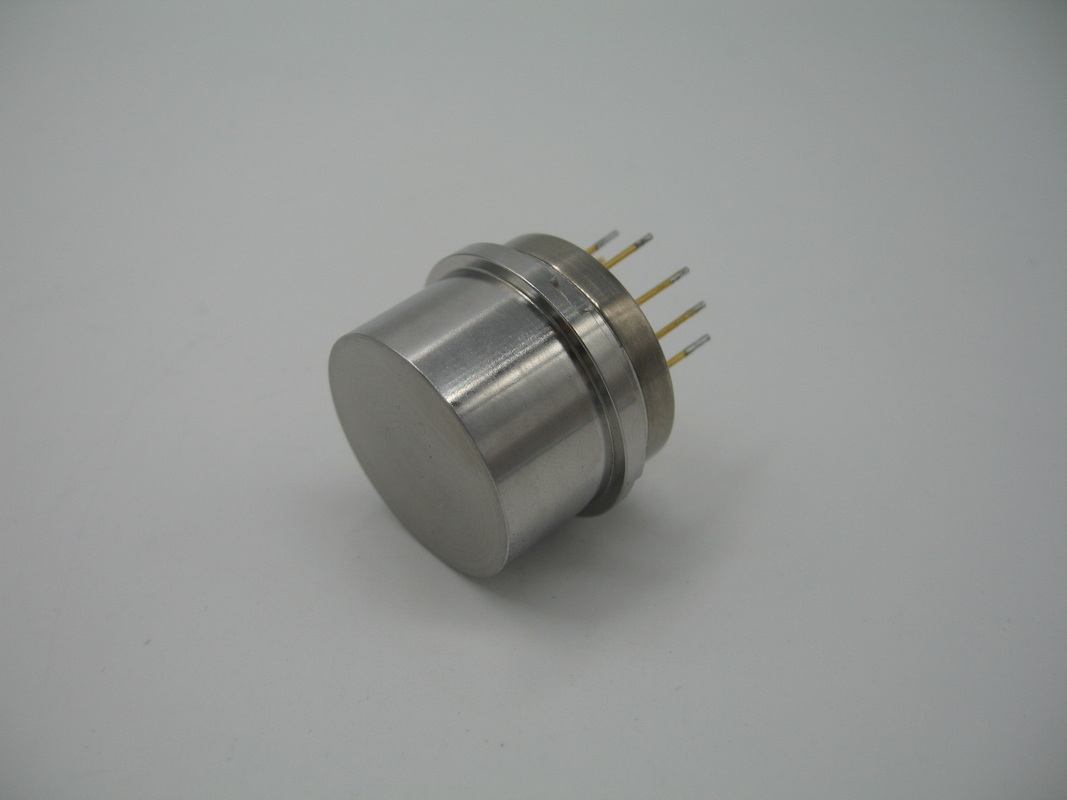

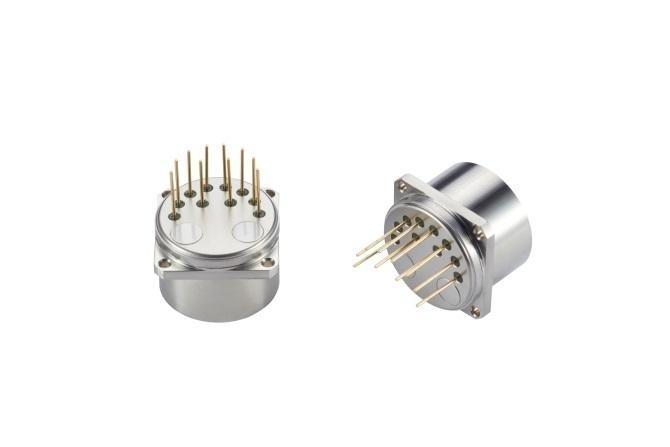

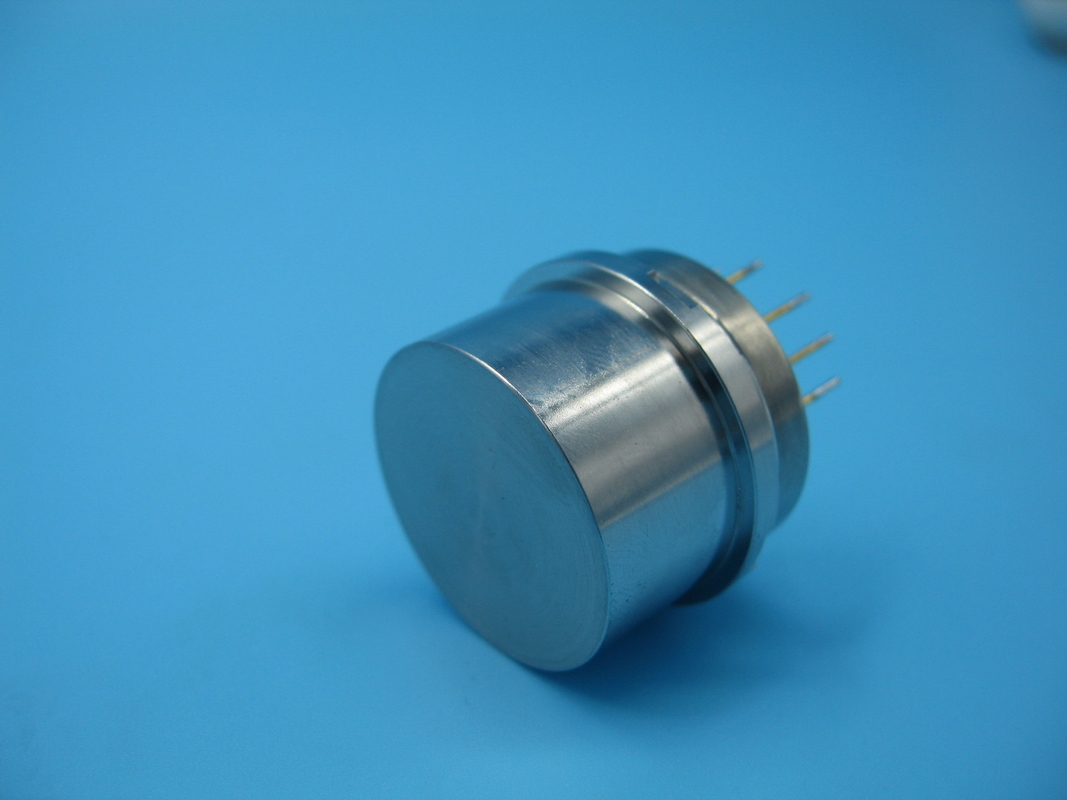

KSJB4 series quartz flexible accelerometer is a kind of high temperature and vibration resistance accelerometer, the product has excellent repeatability, start-up performance, high temperature resistance and high reliability, can be used for static test or dynamic test, is also a standard vibration sensor.

The product adopts unique high temperature and seismic design, packaging technology and special circuit, the output current of the product is proportional to the measured acceleration, providing static and dynamic acceleration measurement, users can choose the appropriate sampling resistance through calculation, to achieve high precision output, and can be built in temperature sensor according to user needs, for offset and scale factor compensation. Reduce the impact of ambient temperature. We can replace QA650, T185, T160, JAE series products in place, but we use double torque structure, which is different from other companies' products, can make the accelerometer offset value and scale factor more stable, and have independent intellectual property rights. This product has been launched since 2010, and the number of deliveries has reached thousands. After years of application, it has become a mature product, especially for the measurement while drilling of oil drilling

Application fields: bridge, dam, oil well, coal mine inclination test, high-speed railway control, ship stability control.

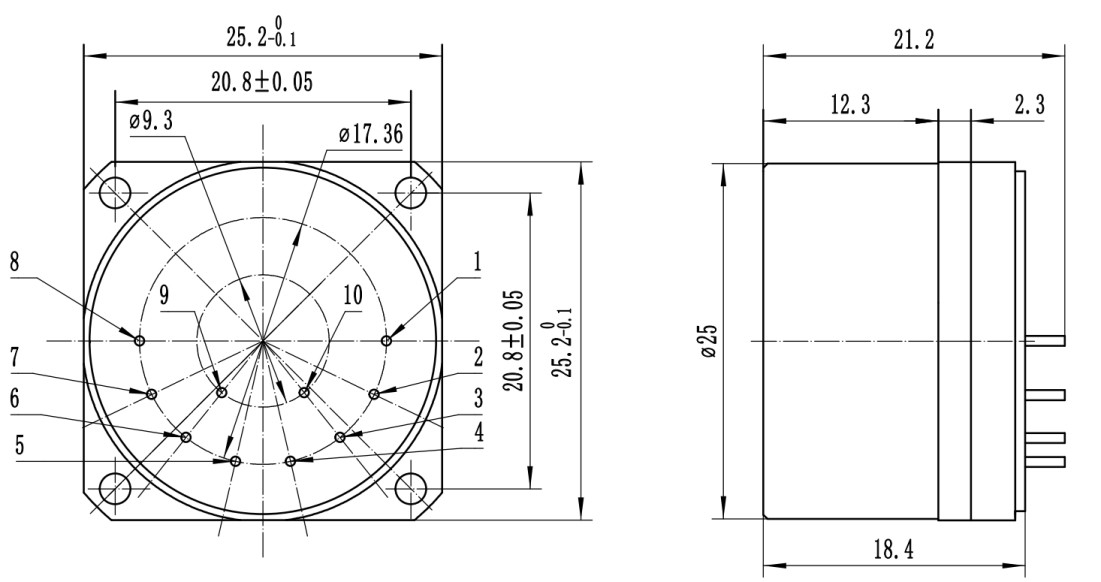

1. JB4-01 Structural dimensions and pin definition

2. JB4-02A and JB4-03A Structural dimensions and pin definitions

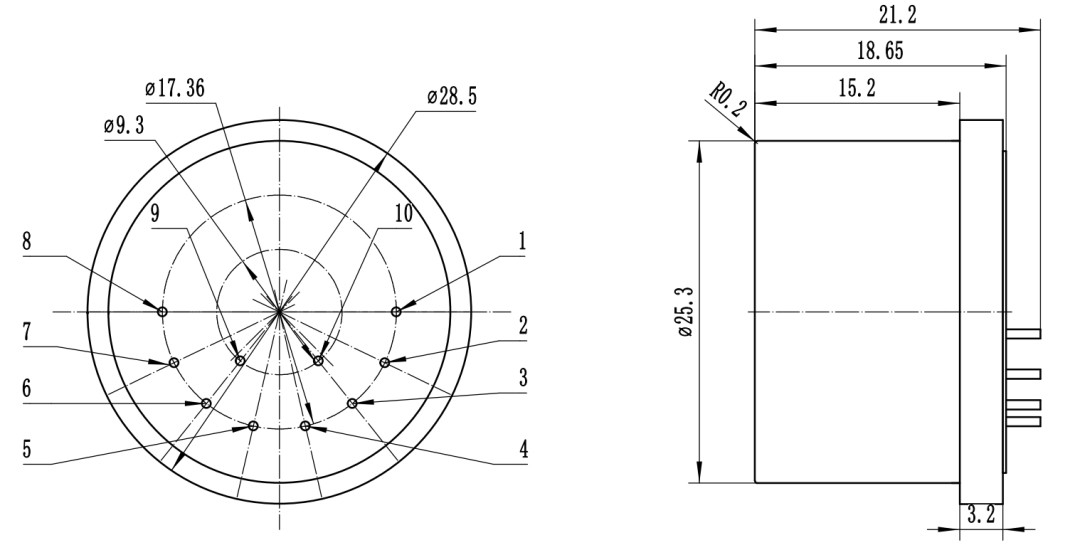

3. JB4-02B and JB4-03B structural dimensions and pin definitions

(Type B product outline figure 1)

(B type product outline figure 2)

4. JB4-02C and JB4-03C structural dimensions and pin definitions

5. JB4-02D and JB4-03D structure size and pin definition

Pin definition:

1, Signal output

2, air

3, power -15V

4, power +15V

5, power and signal ground

6, 7, 8, empty

9, -9V or pt1000

10, +9V or pt1000

Technical Parameters:

Applications:

The Kacise KSJB4 Accelerometer Sensor is an ideal choice for all linear acceleration measurements, vibration detection systems, and gravity force monitoring. It is certified with a certificate of explosion-proof and CE, and its noise level is less than 3000μg-rms (0-10000Hz). It is also compact in size, measuring Ф25mm, and has a wide operating temperature range of -55 to 180 degrees Celsius. It features a power supply of 13V-18V and a range of ±30g. The minimum order quantity for this product is 1 piece, and is delivered within 5 to 8 working days. It is available with various payment terms such as T/T, Western Union, and MoneyGram. The Kacise KSJB4 Accelerometer Sensor can supply up to 1000 pieces per week, and each unit is packed in an individual box with standard packaging or as per customers' requests.

Support and Services:

Packing and Shipping:

Accelerometer Sensor Packaging and Shipping

• The Accelerometer Sensor will be securely packaged in a foam lined box.
• The box will be sealed with heavy-duty tape.
• The box will be labeled with the Accelerometer Sensor’s name and model number.
• The box will be shipped with a tracking number.
• The box will be shipped with a signature required upon delivery.
