| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSJB4 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Power Supply: | 13V-18V | Weight: | ≤55g |
|---|---|---|---|
| Size: | Ф25mm | Deviation Value K0/K1: | ≤±10 Mg |
| Operating Temperature: | -55～180℃ | Range: | ±30g |
| Product Name: | Accelerometer Sensor | Noise: | ＜3000µg-rms (0-10000Hz) |

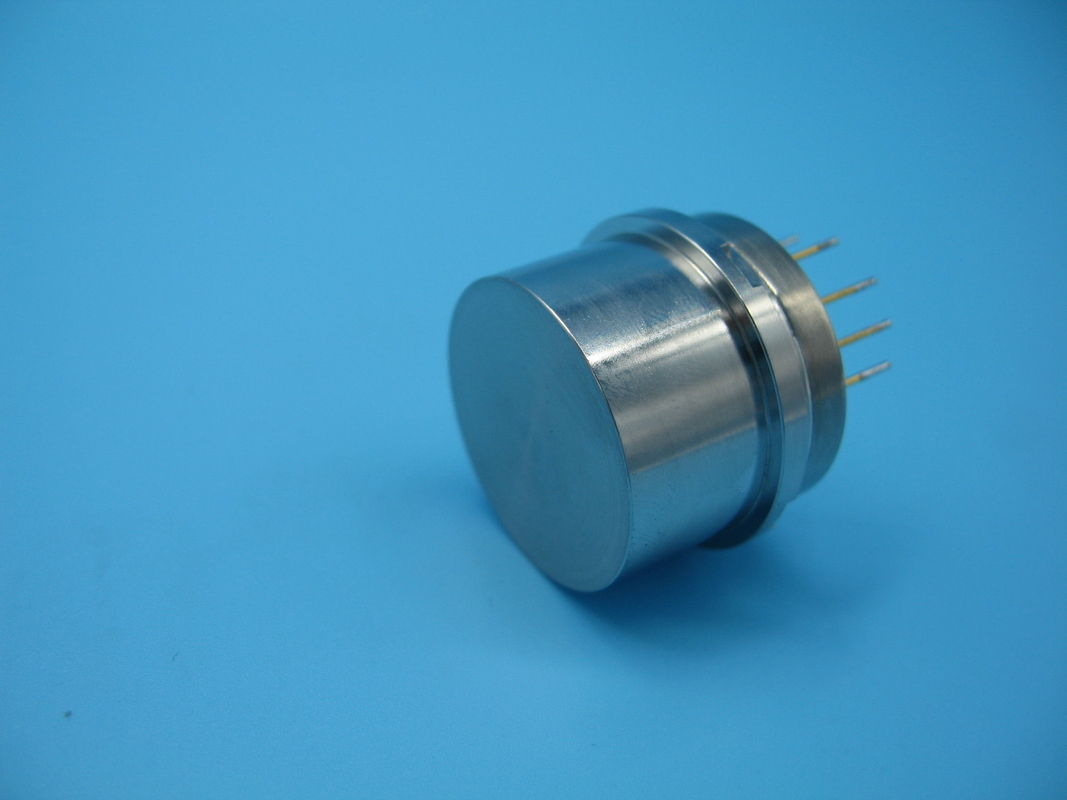

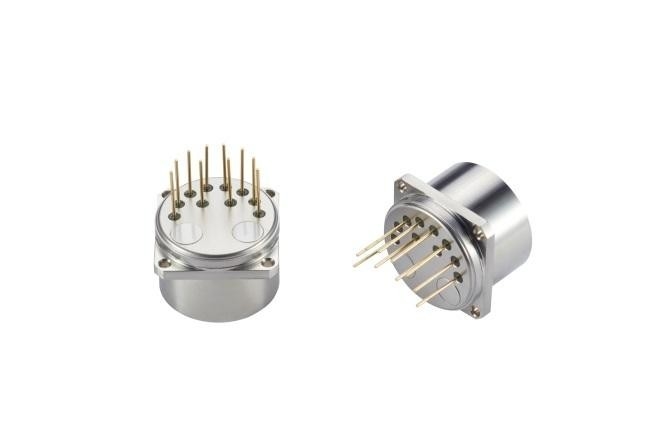

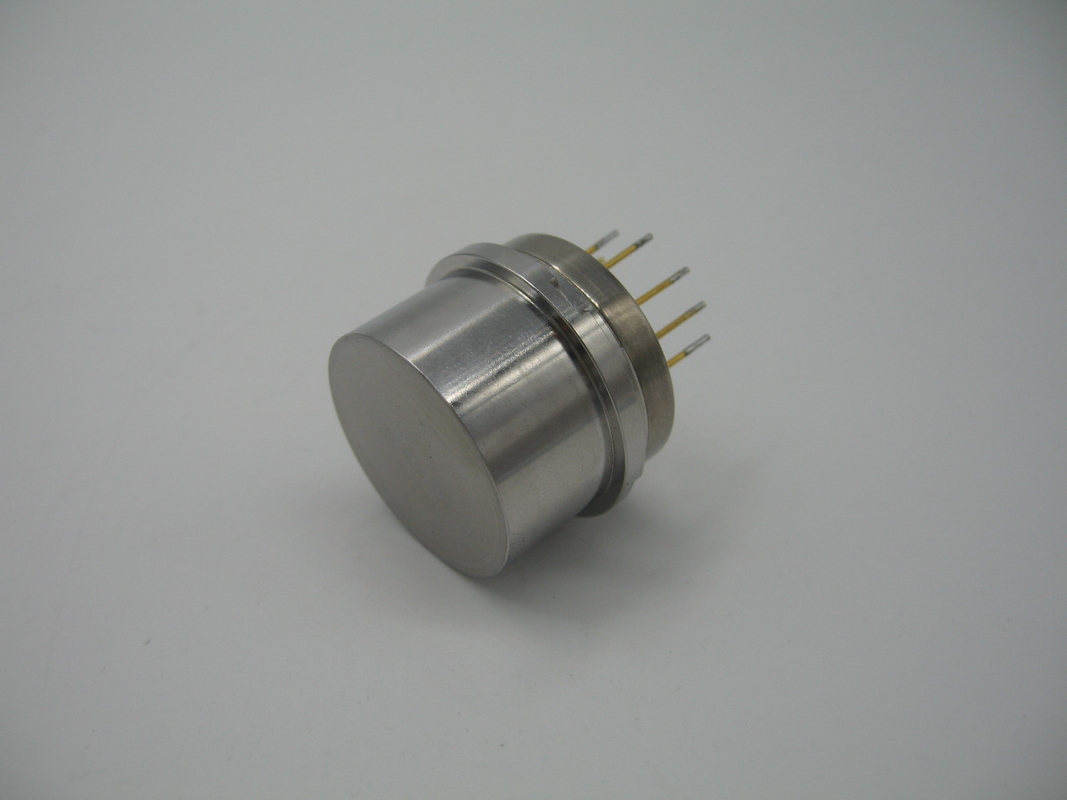

The KSJB4 series quartz flexible accelerometer is specifically designed for high-temperature and vibration resistance. This advanced accelerometer offers exceptional repeatability, start-up performance, high-temperature resistance, and unparalleled reliability. It is suitable for both static and dynamic testing and serves as a standard vibration sensor.
The product adopts unique high temperature and seismic design, packaging technology and special circuit, the output current of the product is proportional to the measured acceleration, providing static and dynamic acceleration measurement, users can choose the appropriate sampling resistance through calculation, to achieve high precision output, and can be built in temperature sensor according to user needs, for offset and scale factor compensation. Reduce the impact of ambient temperature. We can replace QA650, T185, T160, JAE series products in place, but we use double torque structure, which is different from other companies' products, can make the accelerometer offset value and scale factor more stable, and have independent intellectual property rights. This product has been launched since 2010, and the number of deliveries has reached thousands. After years of application, it has become a mature product, especially for the measurement while drilling of oil drilling
Application fields: bridge, dam, oil well, coal mine inclination test, high-speed railway control, ship stability control.
1. JB4-01 Structural dimensions and pin definition
2. JB4-02A and JB4-03A Structural dimensions and pin definitions
3. JB4-02B and JB4-03B structural dimensions and pin definitions
(Type B product outline figure 1)
(B type product outline figure 2)
4. JB4-02C and JB4-03C structural dimensions and pin definitions
5. JB4-02D and JB4-03D structure size and pin definition
Pin definition:
1, Signal output
2, air
3, power -15V
4, power +15V
5, power and signal ground
6, 7, 8, empty
9, -9V or pt1000
10, +9V or pt1000
Note:
1. Scale factor is adjusted according to user requirements;
2.Temperature sensor: divided into AD590, pt1000,
3. Test cycle: divided into 1 month, 3 months, 6 months, 12 months, according to user requirements for testing;
4. Install according to user requirements; The dimensions can be slightly adjusted according to user requirements, and other test requirements can be carried out according to customer requirements. |
|---|
We offer technical support and services for our Accelerometer Sensor product. Our team of experts is available to advice on product specifications, installation, troubleshooting and maintenance.
Our technical support also includes product training, free software updates and maintenance services. We also provide customised solutions and consultancy services tailored to individual customer requirements.
We are committed to providing the highest level of customer service and satisfaction. If you have any questions or require assistance, please do not hesitate to contact us.
The Accelerometer Sensor is a precision instrument, so it must be handled and packaged with care. The proper packaging and shipping of the Accelerometer Sensor is essential to ensure that it is received in perfect working order.
The Accelerometer Sensor must be packed to protect against damage during shipping. It should be placed in a static shielding bag, then surrounded with foam or similar cushioning material. The package should then be securely sealed and labeled as containing sensitive electronic equipment.
The Accelerometer Sensor must be shipped using a reliable shipping carrier that provides tracking and insurance. The package must be clearly labeled with the sender and recipient's information. It is also recommended to have the package arrive with a "signature required" designation.
