Place of Origin:
China (Mainland)
Brand Name:
Kacise
Certification:
certificate of explosion-proof, CE
Model Number:
KSJB5

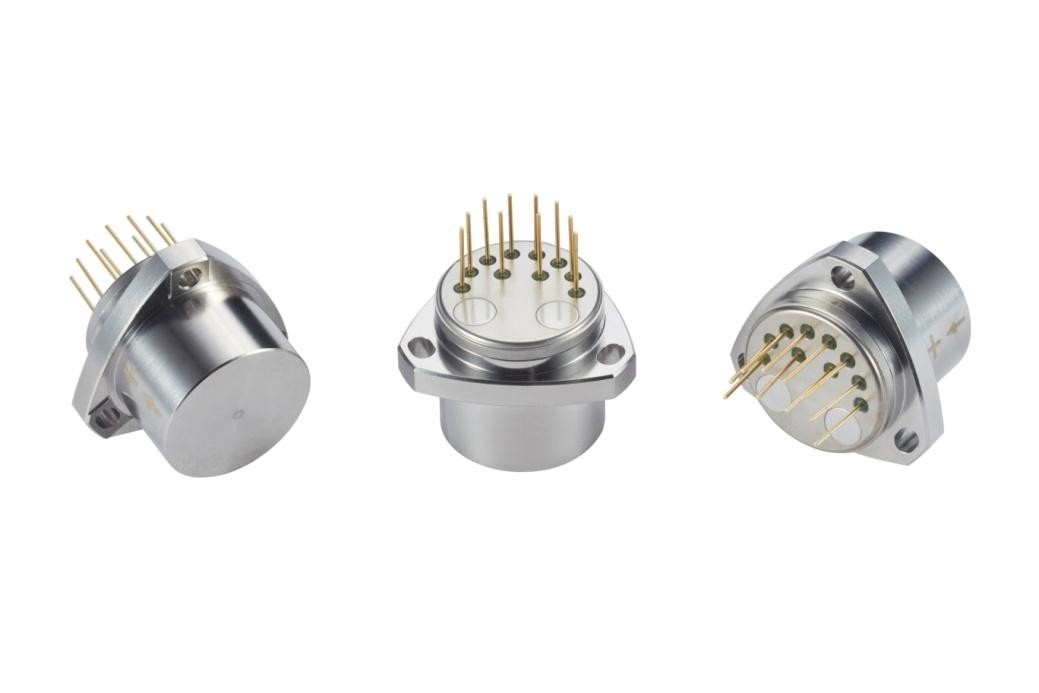

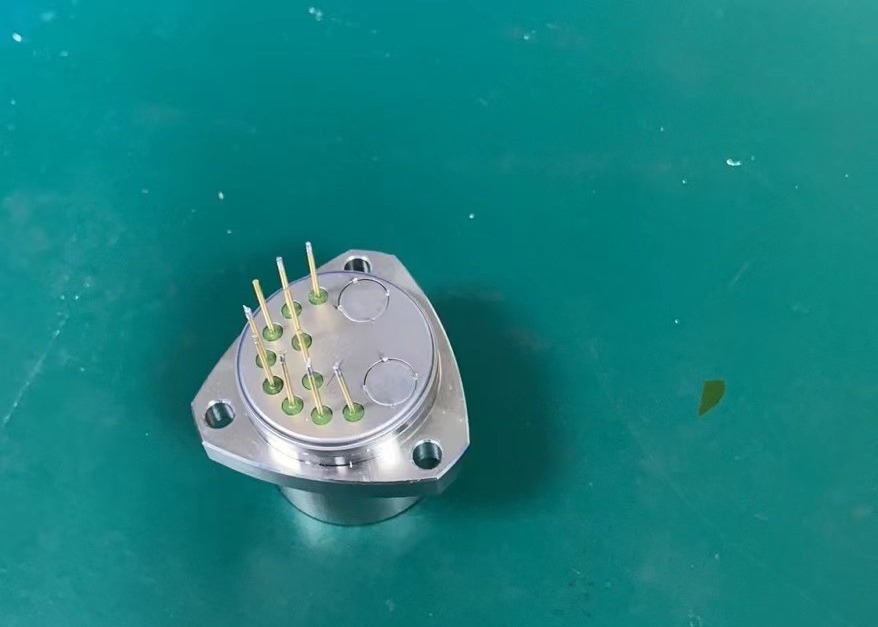

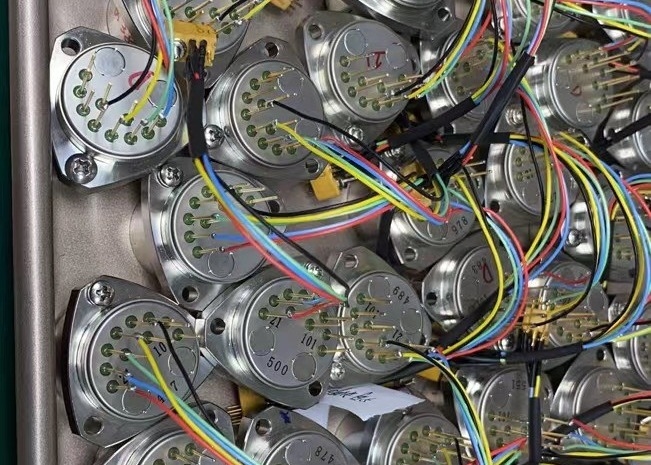

The KSJB5 series quartz flexible accelerometer is a medium-precision sensor featuring a unique compact design. It stands out for its excellent long-term stability, repeatability, dynamic response performance, robust vibration shock resistance, and high reliability. This versatile sensor is ideal for both static and dynamic testing and serves as a standard vibration and inclination sensor.
This product features a distinctive structural design and employs a specialized circuit. The product's output current maintains a linear relationship with the applied force or acceleration. Users can achieve high-precision output by selecting the appropriate sampling resistance through calculation. Additionally, it offers the convenience of an integrated temperature sensor, allowing users to compensate for offset values and scale factors, effectively minimizing the influence of ambient temperature based on their specific requirements.
1. Outline size and pin definition of JB5-A
2. Outline size and pin definition of JB5-B
3. Outline size and pin definition of JB5-C
Pin definition:
1, Signal output
2, air
3, power -15V
4, power +15V
5, power and signal ground
6, 7, 8, empty
9, -9V or pt1000
10, +9V or pt1000
| Number | Parameters | KSJB5-01 | KSJB5-02 | KSJB5-03 |
| 1 | Scope | ±50g | ±50g | ±50g |
| 2 | resolution ratio | ＜5µg | ＜5µg | ＜5µg |
| 3 | deviation value K0/K1 | ＜5mg | ＜7mg | ＜10mg |
| 4 | scale factor K1 | 1.1～1.3 mA/g | 1.1～1.3 mA/g | 1.1～1.3 mA/g |
| 5 | Second order nonlinear coefficient K2 | ≤±20μg /g2 | ≤±20μg /g2 | ≤±20μg /g2 |
| 6 | deviation value synthesis repeatability σK0 (1σ,one month) | ＜30µg | ＜50µg | ＜80µg |
| 7 | Scale factor integrated repeatability σK1/K1 (1σ,one month) | ＜50 ppm | ＜80 ppm | ＜100 ppm |
| 8 | Comprehensive repeatability of nonlinear coefficients K2/K1(1σ,one month) | ≤±20 μg /g2 | ≤±20 μg /g2 | ≤±20 μg /g2 |
| 9 | Comprehensive repeatability of nonlinear coefficients K2/K1(1σ,one month) | ＜20µg/℃ | ＜30µg/℃ | ＜40µg/℃ |
| 10 | deviation value Temperature coefficient(The mean value of the whole temperature zone) | ＜40ppm | ＜50ppm | ＜80ppm |
| 11 | Noise(The sampling resistance is 840Ω) | ≤5mv | ≤5mv | ≤5mv |
| 12 | bandwidth | ＞300 Hz | ＞300 Hz | ＞300 Hz |
| 13 | Vibration rectification error | ＜30µg/g2rms (50-500Hz) | ＜30µg/g2rms (50-500Hz) | ＜30µg/g2rms (50-500Hz) |
| 14 | Random vibration | 20g@20-2000Hz | 20g@20-2000Hz | 20g@20-2000Hz |
| 15 | strike | 250g 4.5ms | 250g 4.5ms | 250g 4.5ms |
| 16 | installation error | ＜1500µrad | ＜1500µrad | ＜1500µrad |
| 17 | Operating temperature range | -55～96℃ | -55～96℃ | -55～96℃ |
| 18 | Power supply | ±13 ~±18V | ±13 ~±18V | ±13 ~±18V |
| 19 | Current consumption | ＜20 mA | ＜20 mA | ＜20 mA |
| 20 | Temperature sensor | User customizable | User customizable | User customizable |
| 21 | weight | ＜55g | ＜55g | ＜55g |
| 22 | Mounting diameter | Ф25mm | Ф25.3mm | Ф25mm |
| 23 | Shell materials | 300 series Stainless steel | 300 series Stainless steel | 300 series Stainless steel |
Note:
1. Scale factor is adjusted according to user requirements;
2.Temperature sensor: divided into AD590, pt1000,18B20,
3. Test cycle: divided into 1 month, 3 months, 6 months, 12 months, according to user requirements for testing;
4. Install according to user requirements; The dimensions can be slightly adjusted according to user requirements, and other test requirements can be carried out according to customer requirements.
Applications
The Kacise KSJB5 is ideal for motion control and monitoring gravity force in a variety of applications. It is ideal for motion velocity sensing, and can be used in a wide range of industries, including automotive, aerospace, robotics, manufacturing, medical, and more. It is also suitable for different environments, including low-temperature, high-temperature, high-acceleration, and vibration applications. The Kacise KSJB5 is a reliable and efficient device that can be used to accurately measure and monitor gravity force and motion.
