| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Model Number: | KSFG-3x36 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Resistance Of Insulation(MΩ): | ＞100MΩ | Zero Bias Repeatability（1，10s） (°/h): | ≤0.5/≤1°/h |
|---|---|---|---|
| Zero Bias Stability At Full Temperature（1，10s） (°/h): | ≤1/≤2°/h | Scale Factor Nonlinearity (ppm): | ≤50/≤100ppm |
| Temperature Of Storage(℃): | -50~+75℃ | Bandwidth(Hz): | 500Hz |
| Weight(g): | ≤300g | Zero Bias Stability（1，10s） (°/h): | ≤0.5/≤1°/h |
| High Light: | Electronic Fiber Optic Gyro,High Precision Electronic Gyroscope Sensor,500Hz Electronic Gyroscope Sensor |
||

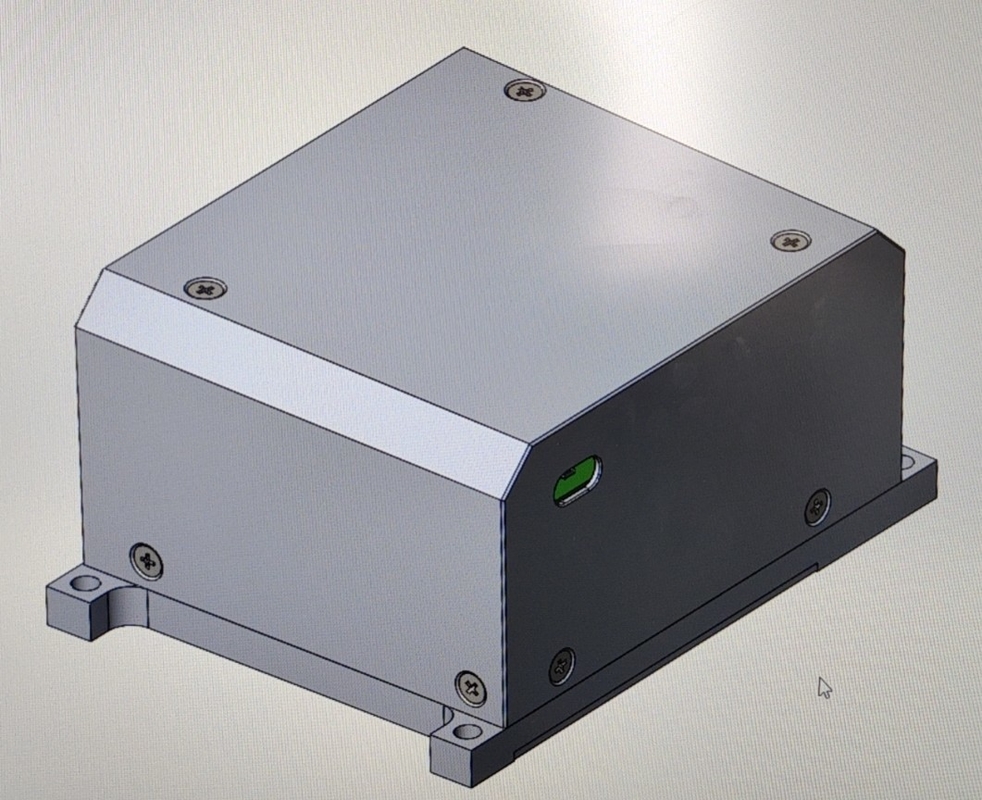

The KSFG3X36-1 fiber optic gyro, as illustrated in the figure, is a low-precision three-axis gyro featuring a compact design, lightweight structure, lack of moving components, high reliability, and extended lifespan. Its digital output is conveniently integrated with systems, making it applicable in aviation, aerospace, naval operations, defense, coal mine measurements, automotive electronics, and other varied fields.
Based on optical principles, the fiber optic gyroscope principle is employed in inertial navigation instruments. By leveraging the optical properties of fibers, it accurately measures rotational angular speed, allowing for precise determination of directions like heading, pitch, and roll. The rotation of the optical loop causes changes in the optical path, and detecting these changes in terms of phase difference or interference fringe enables the measurement of rotation angular speed.
| Number | Parameter | Units | I | II |
| 1 | Zero bias stability(1s,10s) | °/h | ≤0.5 | ≤1 |
| 2 | Zero bias repeatability(1s,10s) | °/h | ≤0.5 | ≤1 |
| 3 | Zero bias stability at full temperature(1s,10s) | °/h | ≤1 | ≤2 |
| 4 | Random walk coefficients | °/h1/2 | ≤0.01 | ≤0.1 |
| 5 | Scale factor nonlinearity | ppm | ≤50 | ≤100 |
| 6 | Scale factor asymmetry | ppm | ≤50 | ≤100 |
| 7 | Repeatability of the scale factor | ppm | ≤50 | ≤100 |
| 8 | Full temperature scale factor change | ppm | ≤250 | ≤500 |
| 9 | Range of measurement | °/s | -500~+500 | -500~+500 |
| 10 | bandwidth | Hz | ³500 | ³500 |
| 11 | Steady-state power consumption | W | ≤5.0 | ≤5.0 |
| 12 | Resistance of insulation | MΩ | ＞100 | ＞100 |
| 13 | Operating temperature | ℃ | -40~+60 | -40~+60 |
| 14 | Temperature of storage | ℃ | -50~+75 | -50~+75 |
| 15 | weight | g | ≤300 | ≤300 |

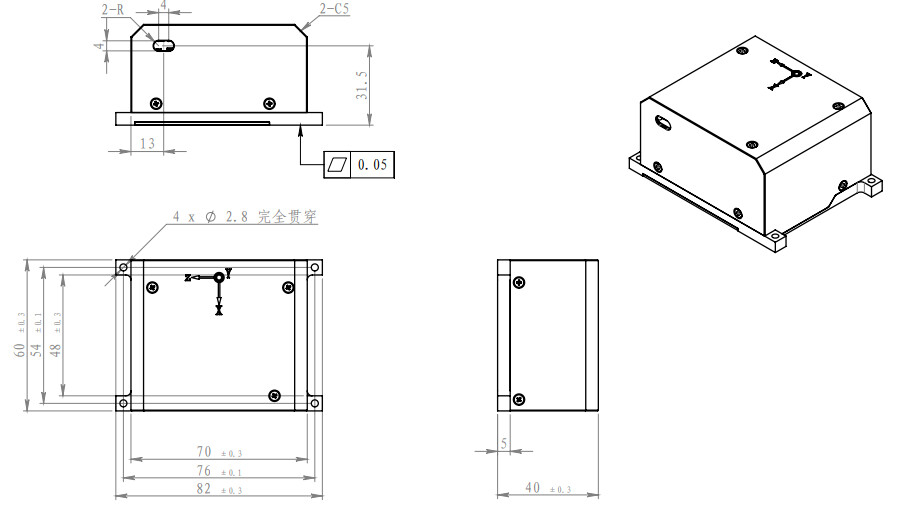

| 16 | Dimensions | mm | 60*70*40 | 60*70*40 |
We offer technical support and service for our Electronic Gyroscope Sensor. Our knowledgeable and experienced staff are available to answer any of your questions. Our support staff is here to help you get the most out of your product.
For technical support, please contact us at support@example.com.
For service, please contact us at service@example.com.
We ensure that all of our Electronic Gyroscope Sensors are securely packaged and shipped with care. Each package is designed to protect the product from any external damage during transit.
We use the following packaging materials:
We ship our Electronic Gyroscope Sensors via trusted carriers such as UPS, FedEx, and DHL. We also offer expedited shipping options for faster delivery.
