| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |

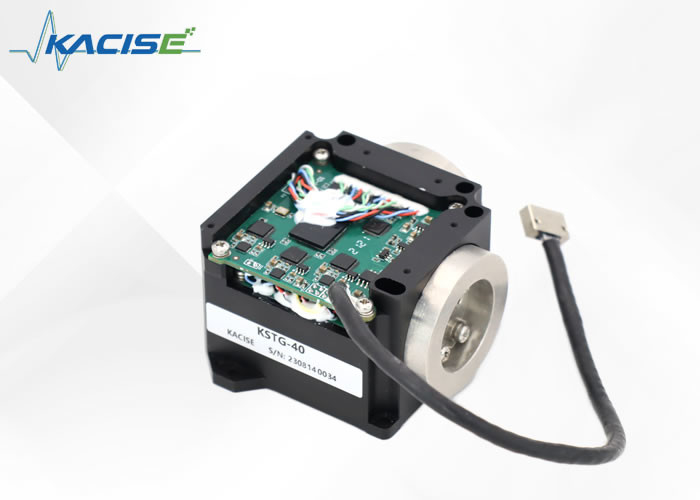

| Model Number: | KSTG-40 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | kacise |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Dimensions: | 71.5×68×45(mm) | Bias Drift(10s Smooth, Fix Temperature): | ≤0.1(°)/h |
|---|---|---|---|
| Dynamic Range: | ±500 (°) / S | Operate Temperature: | -45～+70(℃) |
| Steady-state Power Consumption (full Temperature): | <4(W) | Start Time: | 3 (s) |
| Random Walk Coefficient: | ≤0.01 (°)/h1/2 | Scale Factor Non-linearity: | ≤20(ppm) |
| Scale Factor Repeatability: | ≤10 (ppm) | Weight: | ＜320 (g) |

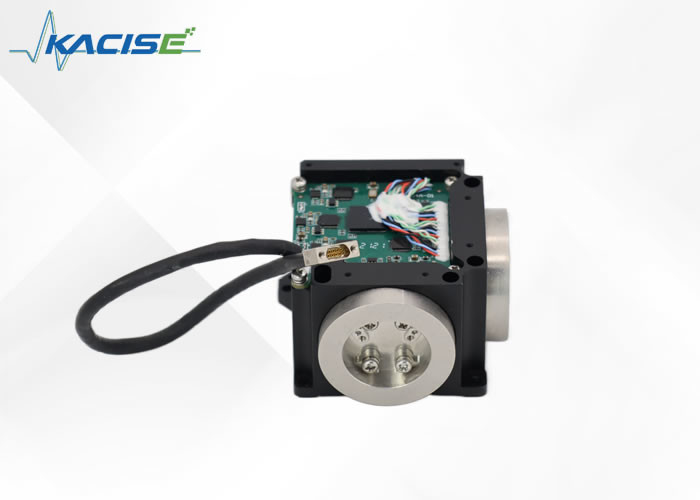

This product is an inertial angle rate sensor based on the optical Sagnac effect for measuring the rotational angular velocity of the carrier along the sensitive axis. The digital closed-loop detection circuit is used to extract the optical path difference of the clockwise light caused by the external physical angular speed, and the voltage signal of the optical path signal is modulated and demodulation, and the closed loop feedback and control are realized to achieve the purpose of real-time angular velocity signal detection.
Function: This product consists of two parts: optical angular velocity sensitive unit and signal detection, providing uniaxial angle increment information and internal temperature information.
Application scope: The products are mainly suitable for photoelectric crane / crane / flying platform / inertial navigation / inertial measurement system / optical / photographic instrument / platform stabilization device / inertial measurement instrument and other applications.
Three-axis gyroscope
Small size and light weight
High Reliability
RS422 Digital output
Wide range of available areas
| Sn# | Test item | H |
| 1 | Dimensions (mm) | 71.5×68×45 |
| 2 | start time (s) | 3 |
| 3 | Bias drift (°) / h (10s smooth, fix temperature) | ≤0.1 |
| 4 | Bias drift (°) / h (10s smooth) -45~ + 70℃ | ≤0.5 |
| 5 | Bias repeatability (°) / h | ≤0.1 |
| 6 | Random walk coefficient(º)/h1/2 | ≤0.01 |
| 7 | Scale factor non-linearity (ppm) | ≤20 |
| 8 | Scale factor repeatability (ppm) | ≤10 |
| 9 | Operate temperature ℃ | -45～+70 |
| 10 | Storage temperature of (℃) | -50～+80 |
| 11 | Dynamic range (°) / s | ±500 |
| 12 | Supply voltage (V) | +5 |
| 13 | Steady-state power consumption (full temperature) (W) | <4 |
| 14 | weight (g) | ＜320 |
The Kacise KSFG-3x36 Electronic Gyroscope Sensor is an advanced Fiber Optic Gyro designed for high-precision applications. It is a reliable Digital Inclinometer Sensor with a weight of ≤300g and operating temperature range from -40 to +60℃. The Kacise KSFG-3x36 offers excellent zero bias repeatability of ≤0.5/≤1 (1, 10s) (°/h) and wide temperature range (-50~+75℃) for storage. It also features a range of measurement from -500~+500/-500~+500 (°/s).
This Electronic Gyroscope Sensor is perfect for applications requiring high accuracy, such as navigation, guidance, and attitude control. It is widely used in various industries, including aerospace, automotive, industrial automation, and robotics. With its superior performance, it can provide reliable and repeatable measurements in any environment.
The Kacise KSFG-3x36 Electronic Gyroscope Sensor is ideal for applications where precision and reliability are essential. It is an excellent choice for applications requiring accurate and reliable measurements of angular velocity and acceleration. Its small size, low weight, and wide operating temperature range make it perfect for use in any environment. With its superior performance, it is an excellent choice for applications that require high accuracy and reliability.
We offer technical support and service for our Electronic Gyroscope Sensor. To ensure the highest level of quality, we offer detailed technical documentation and detailed instructions on how to properly install and maintain your Electronic Gyroscope Sensor. Additionally, we provide professional customer service and technical support staff who are available to answer any questions you may have.
Our technical support team is available 24/7 to provide assistance with any technical issues you may have. We understand that your time is valuable, so we make sure to provide prompt responses to any inquiries you may have. Our customer service staff is always available to provide helpful advice and solutions to any problems you may encounter.
If you have any questions or concerns, please do not hesitate to contact us. We look forward to hearing from you and helping you make the most of your Electronic Gyroscope Sensor.
We will ensure the safe packaging of the Electronic Gyroscope Sensor. It will be packed in an anti-static bag with bubble wrap to ensure that it is not damaged during shipping. The package should also include the necessary instructions for installation and operation.
We offer different shipping options, depending on the customer's needs and preferences. We can provide fast shipping with tracking number, so that the customer can track their shipment. We also offer international shipping, with customs clearance and customs duties.
