| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Model Number: | KSTG-40 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Dimensions: | 71.5×68×45 (mm) | Start Time: | 3 (s) |
|---|---|---|---|
| Bias Drift (10s Smooth, Fix Temperature): | ≤0.1 (°) / H | RanBias Drift (°) / H (10s Smooth) -45~ + 70℃dom Walk Coefficients: | ≤0.5 (°/h1/2) |
| Bias Repeatability: | ≤0.1(°) / H | Random Walk Coefficient: | ≤0.01 (°)/h1/2 |
| Scale Factor Non-linearity: | ≤20(ppm) | Scale Factor Repeatability: | ≤10 (ppm) |
| Weight: | ＜320 (g) | Supply Voltage: | +5 (V) |
| Dynamic Range: | ±500 (°) / S | Operate Temperature: | -45～+70 (℃) |

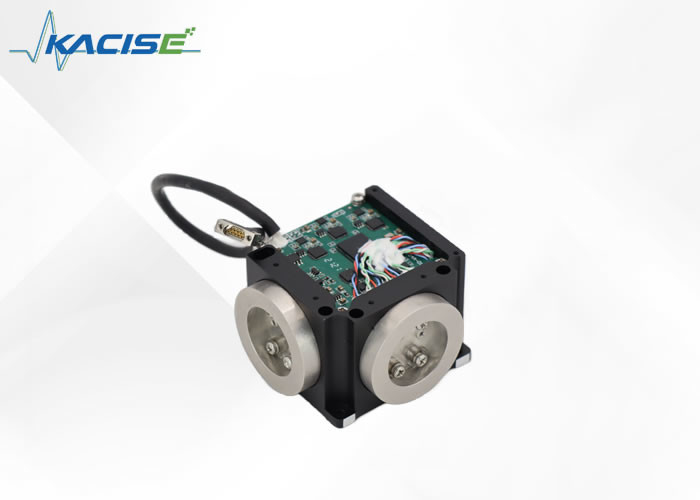

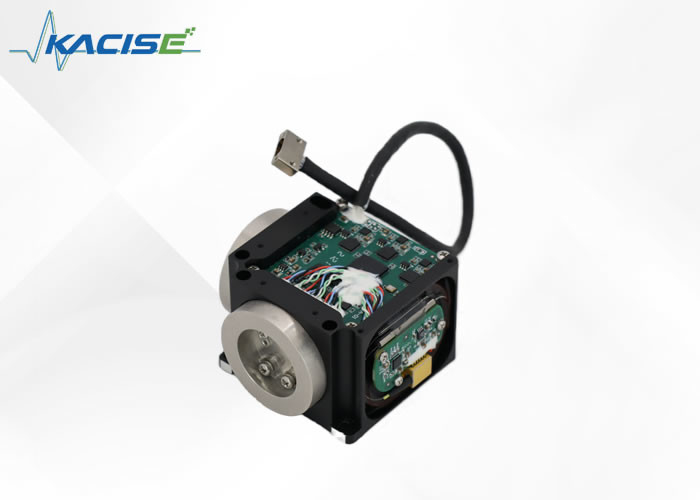

This product is an inertial angle rate sensor based on the optical Sagnac effect for measuring the rotational angular velocity of the carrier along the sensitive axis. The digital closed-loop detection circuit is used to extract the optical path difference of the clockwise light caused by the external physical angular speed, and the voltage signal of the optical path signal is modulated and demodulation, and the closed loop feedback and control are realized to achieve the purpose of real-time angular velocity signal detection.
Function: This product consists of two parts: optical angular velocity sensitive unit and signal detection, providing uniaxial angle increment information and internal temperature information.
Application scope: The products are mainly suitable for photoelectric crane / crane / flying platform / inertial navigation / inertial measurement system / optical / photographic instrument / platform stabilization device / inertial measurement instrument and other applications.
Three-axis gyroscope
Small size and light weight
High Reliability
RS422 Digital output
Wide range of available areas
| Sn# | Test item | H |
| 1 | Dimensions (mm) | 71.5×68×45 |
| 2 | start time (s) | 3 |
| 3 | Bias drift (°) / h (10s smooth, fix temperature) | ≤0.1 |
| 4 | Bias drift (°) / h (10s smooth) -45~ + 70℃ | ≤0.5 |
| 5 | Bias repeatability (°) / h | ≤0.1 |
| 6 | Random walk coefficient(º)/h1/2 | ≤0.01 |
| 7 | Scale factor non-linearity (ppm) | ≤20 |
| 8 | Scale factor repeatability (ppm) | ≤10 |
| 9 | Operate temperature ℃ | -45～+70 |
| 10 | Storage temperature of (℃) | -50～+80 |
| 11 | Dynamic range (°) / s | ±500 |
| 12 | Supply voltage (V) | +5 |
| 13 | Steady-state power consumption (full temperature) (W) | <4 |
| 14 | weight (g) | ＜320 |
This Electronic Gyroscope Sensor will be shipped in a secure, anti-static bubble wrap packaging with all the required labeling.
The product will be shipped in a cardboard box, with a secure cushioning material inside for added protection. The box will be labeled with the product’s name, the company name, and the destination address.
The product will be shipped through a reliable shipping company, with tracking and insurance services to ensure safe and timely delivery.
