| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Model Number: | KSTG-40 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Operating Temperature: | -45～+70(℃) | Dynamic Range: | ±500 (°) / S |
|---|---|---|---|
| Scale Factor Non-linearity: | ≤20 (ppm) | Weight: | ＜320(g) |
| Steady-state Power Consumption (full Temperature): | <4 (W) | Bias Drift (10s Smooth, Fix Temperature): | ≤0.1 (°) / H |
| Bias Drift (10s Smooth) -45~ + 70℃: | ≤0.5 (°) / H | Bias Repeatability: | ≤0.1(°) / H |
| Random Walk Coefficient: | ≤0.01(°)/h1/2 | Interface: | RS422 |

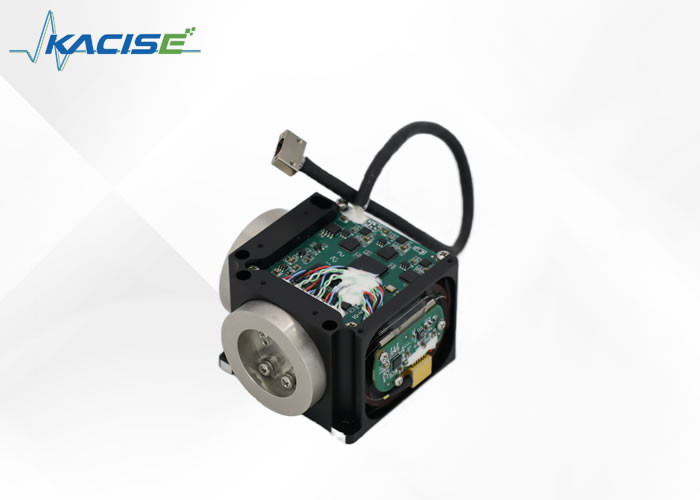

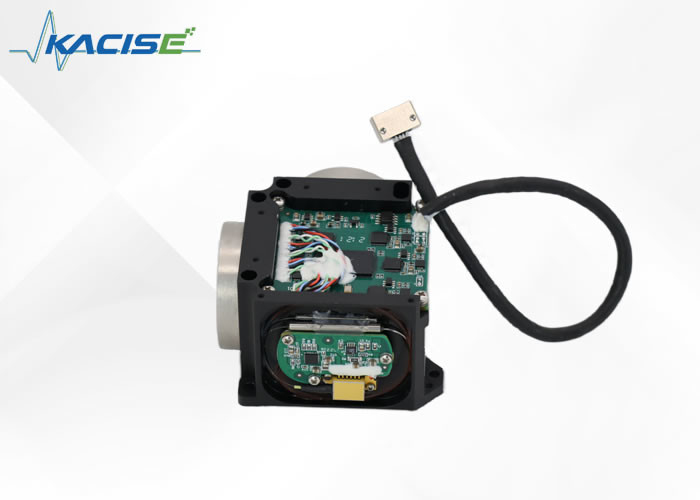

This product is an inertial angle rate sensor based on the optical Sagnac effect for measuring the rotational angular velocity of the carrier along the sensitive axis. The digital closed-loop detection circuit is used to extract the optical path difference of the clockwise light caused by the external physical angular speed, and the voltage signal of the optical path signal is modulated and demodulation, and the closed loop feedback and control are realized to achieve the purpose of real-time angular velocity signal detection.
Function: This product consists of two parts: optical angular velocity sensitive unit and signal detection, providing uniaxial angle increment information and internal temperature information.
Application scope: The products are mainly suitable for photoelectric crane / crane / flying platform / inertial navigation / inertial measurement system / optical / photographic instrument / platform stabilization device / inertial measurement instrument and other applications.
Three-axis gyroscope
Small size and light weight
High Reliability
RS422 Digital output
Wide range of available areas
| Sn# | Test item | H |
| 1 | Dimensions (mm) | 71.5×68×45 |
| 2 | start time (s) | 3 |
| 3 | Bias drift (°) / h (10s smooth, fix temperature) | ≤0.1 |
| 4 | Bias drift (°) / h (10s smooth) -45~ + 70℃ | ≤0.5 |
| 5 | Bias repeatability (°) / h | ≤0.1 |
| 6 | Random walk coefficient(º)/h1/2 | ≤0.01 |
| 7 | Scale factor non-linearity (ppm) | ≤20 |
| 8 | Scale factor repeatability (ppm) | ≤10 |
| 9 | Operate temperature ℃ | -45～+70 |
| 10 | Storage temperature of (℃) | -50～+80 |
| 11 | Dynamic range (°) / s | ±500 |
| 12 | Supply voltage (V) | +5 |
| 13 | Steady-state power consumption (full temperature) (W) | <4 |
| 14 | weight (g) | ＜320 |
We provide full technical support and service for all our Electronic Gyroscope Sensor customers. Our experienced support team is available to answer any questions you may have about the product. We also provide comprehensive installation and maintenance services.
We offer a wide range of support options including:
If you have any questions or issues with our Electronic Gyroscope Sensor, please don't hesitate to contact us. Our team is here to help you get the most out of your product.
The Electronic Gyroscope Sensor will be packaged with foam inserts and shipped in a cardboard box. To ensure the product is protected during shipping, the box is reinforced with bubble wrap. The box is also labeled with the item name and the customer's address.
