| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Model Number: | KSTG-40 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Dimensions: | 71.5×68×45 (mm) | Start Time: | 3 (s) |
|---|---|---|---|
| Bias Drift: | ≤0.1 (°)/h | Bias Repeatability: | ≤0.1 (°)/h |
| Random Walk Coefficients: | ≤0.01 (°/h1/2) | Operate Temperature: | -45～+70 (℃) |
| Dynamic Range: | ±500 (°)/s | Weight: | ＜320(g) |
| Interface: | RS422 |

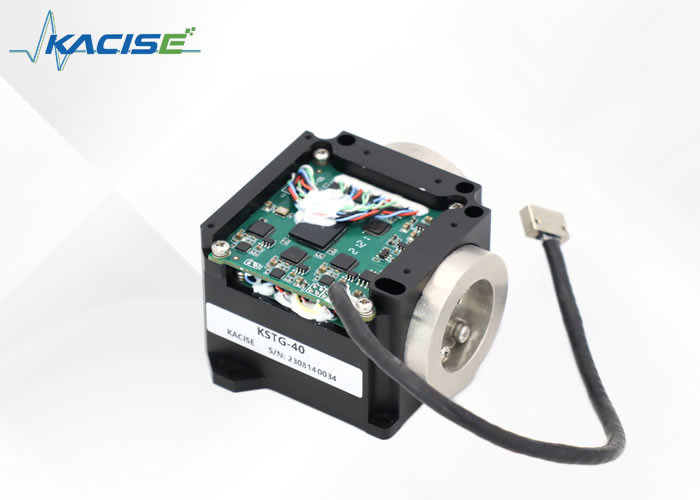

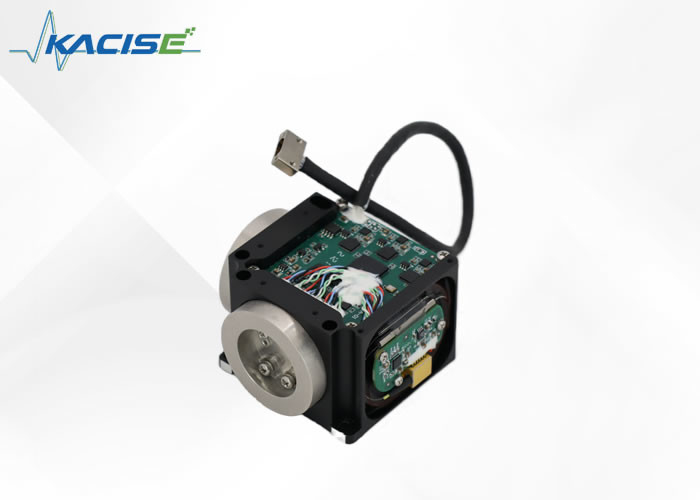

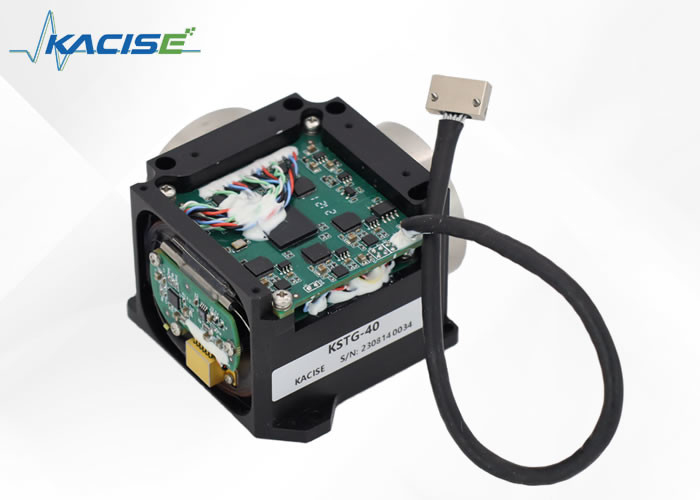

This product is an inertial angle rate sensor based on the optical Sagnac effect for measuring the rotational angular velocity of the carrier along the sensitive axis. The digital closed-loop detection circuit is used to extract the optical path difference of the clockwise light caused by the external physical angular speed, and the voltage signal of the optical path signal is modulated and demodulation, and the closed loop feedback and control are realized to achieve the purpose of real-time angular velocity signal detection.
Function: This product consists of two parts: optical angular velocity sensitive unit and signal detection, providing uniaxial angle increment information and internal temperature information.
Application scope: The products are mainly suitable for photoelectric crane / crane / flying platform / inertial navigation / inertial measurement system / optical / photographic instrument / platform stabilization device / inertial measurement instrument and other applications.
Three-axis gyroscope
Small size and light weight
High Reliability
RS422 Digital output
Wide range of available areas
| Sn# | Test item | H |
| 1 | Dimensions (mm) | 71.5×68×45 |
| 2 | start time (s) | 3 |
| 3 | Bias drift (°) / h (10s smooth, fix temperature) | ≤0.1 |
| 4 | Bias drift (°) / h (10s smooth) -45~ + 70℃ | ≤0.5 |
| 5 | Bias repeatability (°) / h | ≤0.1 |
| 6 | Random walk coefficient(º)/h1/2 | ≤0.01 |
| 7 | Scale factor non-linearity (ppm) | ≤20 |
| 8 | Scale factor repeatability (ppm) | ≤10 |
| 9 | Operate temperature ℃ | -45～+70 |
| 10 | Storage temperature of (℃) | -50～+80 |
| 11 | Dynamic range (°) / s | ±500 |
| 12 | Supply voltage (V) | +5 |
| 13 | Steady-state power consumption (full temperature) (W) | <4 |
| 14 | weight (g) | ＜320 |
We provide technical support and services for the Electronic Gyroscope Sensor. Our technical support team is available 24 hours a day, 7 days a week to provide you with the highest quality support and service. We can help with troubleshooting, product setup and installation, product customization, and more. We also provide free software updates and regular maintenance checks. If you ever have any questions or need assistance, please don't hesitate to contact us.
The Electronic Gyroscope Sensor comes in a sealed and protective packaging, which is suitable for long-term storage and transportation.
The package will be shipped by a reliable, insured, and trackable delivery service. Delivery time depends on the destination and the shipping service.
