| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Model Number: | KSTG-40 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Dimensions: | 71.5×68×45(mm) | Bias Drift: | ≤0.1 (°) / H |
|---|---|---|---|
| Bias Repeatability: | ≤0.1 (°) / H | Random Walk Coefficient: | ≤0.01(°)/h1/2 |
| Scale Factor Non-linearity: | ≤20 (ppm) | Scale Factor Repeatability: | ≤10 (ppm) |
| Operate Temperature: | -45～+70 (℃) | Storage Temperature: | -50～+80 (℃) |
| Dynamic Range: | ±500 (°) / S |

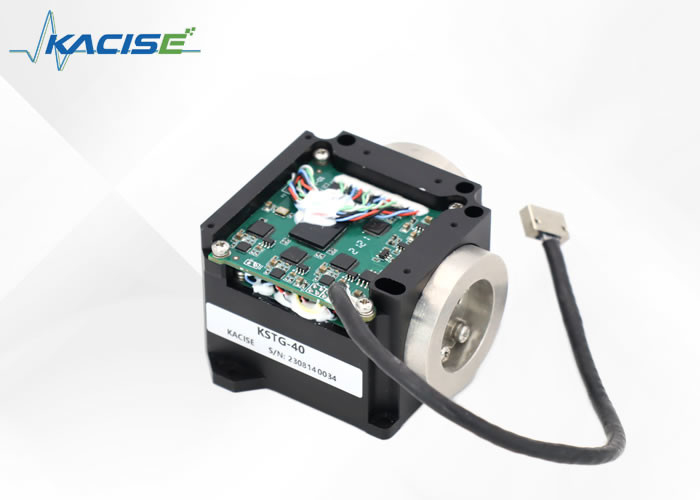

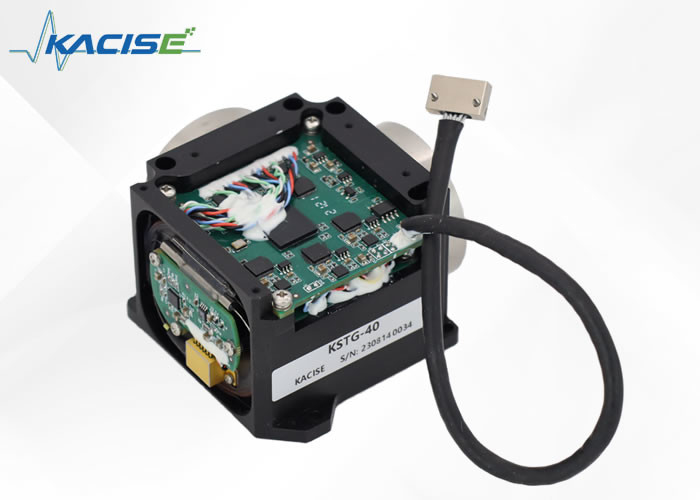

This product is an inertial angle rate sensor based on the optical Sagnac effect for measuring the rotational angular velocity of the carrier along the sensitive axis. The digital closed-loop detection circuit is used to extract the optical path difference of the clockwise light caused by the external physical angular speed, and the voltage signal of the optical path signal is modulated and demodulation, and the closed loop feedback and control are realized to achieve the purpose of real-time angular velocity signal detection.
Function: This product consists of two parts: optical angular velocity sensitive unit and signal detection, providing uniaxial angle increment information and internal temperature information.
Application scope: The products are mainly suitable for photoelectric crane / crane / flying platform / inertial navigation / inertial measurement system / optical / photographic instrument / platform stabilization device / inertial measurement instrument and other applications.
Three-axis gyroscope
Small size and light weight
High Reliability
RS422 Digital output
Wide range of available areas
| Sn# | Test item | H |
| 1 | Dimensions (mm) | 71.5×68×45 |
| 2 | start time (s) | 3 |
| 3 | Bias drift (°) / h (10s smooth, fix temperature) | ≤0.1 |
| 4 | Bias drift (°) / h (10s smooth) -45~ + 70℃ | ≤0.5 |
| 5 | Bias repeatability (°) / h | ≤0.1 |
| 6 | Random walk coefficient(º)/h1/2 | ≤0.01 |
| 7 | Scale factor non-linearity (ppm) | ≤20 |
| 8 | Scale factor repeatability (ppm) | ≤10 |
| 9 | Operate temperature ℃ | -45～+70 |
| 10 | Storage temperature of (℃) | -50～+80 |
| 11 | Dynamic range (°) / s | ±500 |
| 12 | Supply voltage (V) | +5 |
| 13 | Steady-state power consumption (full temperature) (W) | <4 |
| 14 | weight (g) | ＜320 |
Kacise's KSFG-3x36 Electronic Gyroscope Sensor can be widely used in various industries, such as aerospace, navigation, robotics, automotive, and industrial automation. It can enhance the accuracy and stability of measurement in the aerospace industry and improve the accuracy of navigation in vehicles. It can also be used in industrial automation to detect motion and orientation, providing reliable data for the control system.
Kacise's KSFG-3x36 Electronic Gyroscope Sensor is also suitable for medical applications, such as for physical therapy, rehabilitation and robotic surgery. It can be used to detect the motion of human body accurately and stably, making it easier for medical professionals to diagnose and treat diseases.
Kacise's KSFG-3x36 Electronic Gyroscope Sensor is also widely used in gaming and virtual reality applications. It can accurately detect motion and orientation, providing reliable data for gaming and virtual reality systems, allowing users to have a more immersive experience.
We are dedicated to providing our customers with the best technical support and service for the Electronic Gyroscope Sensor. Our team is experienced and knowledgeable in this product, and we are committed to providing you with the highest quality support and service.
We offer a variety of services, including:
If you have any questions or need assistance with your Electronic Gyroscope Sensor, please contact us and we will be happy to help.
Packaging and Shipping for Electronic Gyroscope Sensor:
The sensors will be carefully packaged in a box with a cushioning material to secure the items during shipping. The package will be securely sealed and labeled with the customer's address and other important shipping information. We will ship the product via a reliable shipping carrier. The customer will be notified with a tracking number when the package is shipped.
