Place of Origin: | China (Mainland) |
Brand Name: | Kacise |
Certification: | certificate of explosion-proof, CE |
Model Number: | KSFG-50 |
Minimum Order Quantity: | 1pcs |
---|---|
Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
Delivery Time: | 5-8 working days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 1000 Pieces per Week |
Bias Drift (°) / H (10s Smooth) -45~ + 70℃: | ≤0.3 | Start Time (s): | 5 |
---|---|---|---|
Operate Temperature ℃: | -45~+70 | Bias Drift (°) / H (10s Smooth, Fix Temperature): | ≤0.1 |
Random Walk Coefficient(º)/h^1/2: | ≤0.01 | Scale Factor Non-linearity (ppm): | ≤10 |
Steady-state Power Consumption (full Temperature) (W): | <4 | Dimensions (mm): | 50×50×36 |
High Light: | Precise Measurement Electronic Gyroscope Sensor,Inertial Electronic Gyroscope Sensor |
This product operates as an inertial angle rate sensor based on the optical Sagnac effect, measuring the rotational angular velocity of the carrier along its sensitive axis. Employing a digital closed-loop detection circuit, it extracts the optical path difference resulting from external physical angular speed in the clockwise direction. Modulation and demodulation of the voltage signal from the optical path enable closed-loop feedback and control, ensuring real-time detection of angular velocity signals.
Function: This product consists of two parts: optical angular velocity sensitive unit and signal detection, providing uniaxial angle increment information and internal temperature information.
Application scope: The products are mainly suitable for photoelectric crane / crane / flying platform / inertial navigation / inertial measurement system / optical / photographic instrument / platform stabilization device / inertial measurement instrument and other applications.

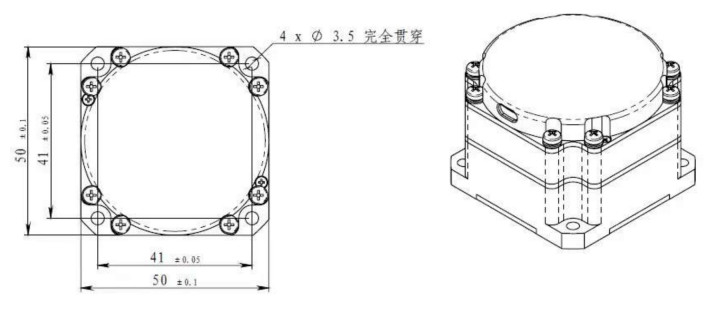

Installation mode 1. Size: 50X50X32
Installation mode: 2nd dimension: 50X50X36
Sn# |
test item |
H |
L |
1 |
Dimensions (mm) |
50×50×36 |
50×50×36 |
2 |
start time (s) |
5 |
5 |
3 |
Bias drift (°) / h (10s smooth, fix temperature) |
≤0.1 |
≤0.3 |
4 |
Bias drift (°) / h (10s smooth) -45~ + 70℃ |
≤0.3 |
≤0.5 |
5 |
Bias repeatability (°) / h |
≤0.05 |
≤0.1 |
6 |
Random walk coefficient(º)/h1/2 |
≤0.01 |
≤0.02 |
7 |
Scale factor non-linearity (ppm) |
≤10 |
≤20 |
8 |
Scale factor repeatability (ppm) |
≤10 |
≤20 |
9 |
Operate temperature ℃ |
-45~+70 |
-45~+70 |
10 |
Storage temperature (℃) |
-50~+80 |
-50~+80 |
11 |
Dynamic range (°) / s |
±900 |
±900 |
12 |
Supply voltage (V) |
+5 |
+5 |
13 |
Steady-state power consumption (full temperature) (W) |
<4 |
<4 |
14 |
weight (g) |
<130 |
<130 |
We provide technical support and service for the Electronic Gyroscope Sensor. Our experienced technical staff are here to help you with any issues you may have with your device.
We offer the following services to our customers:
The Electronic Gyroscope Sensor is carefully packaged and shipped to ensure that it is not damaged during transit.
