Fiber optic gyroscopes, angular velocity sensors for inertial systems with Dynamic range ±900(°) / s ,Random walk≤0.01

Fiber optic gyroscopes, angular velocity sensors for inertial systems with Dynamic range ±900(°) / s ,Random walk≤0.01

  • Fiber optic gyroscopes, angular velocity sensors for inertial systems with Dynamic range ±900(°) / s ,Random walk≤0.01
  • Fiber optic gyroscopes, angular velocity sensors for inertial systems with Dynamic range ±900(°) / s ,Random walk≤0.01
  • Fiber optic gyroscopes, angular velocity sensors for inertial systems with Dynamic range ±900(°) / s ,Random walk≤0.01
Fiber optic gyroscopes, angular velocity sensors for inertial systems with Dynamic range ±900(°) / s ,Random walk≤0.01
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: KSFG-50
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Supply Voltage (V): +5 Bias Drift (°) / H (10s Smooth) -45~ + 70℃: ≤0.3
Storage Temperature(℃): -50～+80 Dynamic Range (°) / S: ±900
Scale Factor Non-linearity (ppm): ≤10 Random Walk Coefficient(º)/h^1/2: ≤0.01
Start Time (s): 5 Bias Drift (°) / H (10s Smooth, Fix Temperature): ≤0.1

Product Description:

This device serves as an inertial angle rate sensor utilizing the optical Sagnac effect to measure the rotational angular velocity of the carrier along its sensitive axis. Employing a digital closed-loop detection circuit, it extracts the optical path difference caused by external physical angular speed in a clockwise direction. Through modulation and demodulation of the optical path signal voltage, closed-loop feedback and control are implemented, enabling real-time detection of angular velocity signals.



Function: This product consists of two parts: optical angular velocity sensitive unit and signal detection, providing uniaxial angle increment information and internal temperature information.





Application scope: The products are mainly suitable for photoelectric crane / crane / flying platform / inertial navigation / inertial measurement system / optical / photographic instrument / platform stabilization device / inertial measurement instrument and other applications.



Fiber optic gyroscopes, angular velocity sensors for inertial systems with Dynamic range ±900(°) / s ,Random walk≤0.01 0Fiber optic gyroscopes, angular velocity sensors for inertial systems with Dynamic range ±900(°) / s ,Random walk≤0.01 1

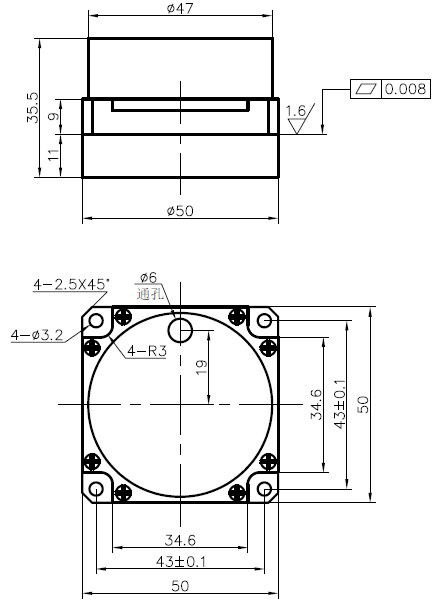

Installation mode 1. Size: 50X50X32





Fiber optic gyroscopes, angular velocity sensors for inertial systems with Dynamic range ±900(°) / s ,Random walk≤0.01 2

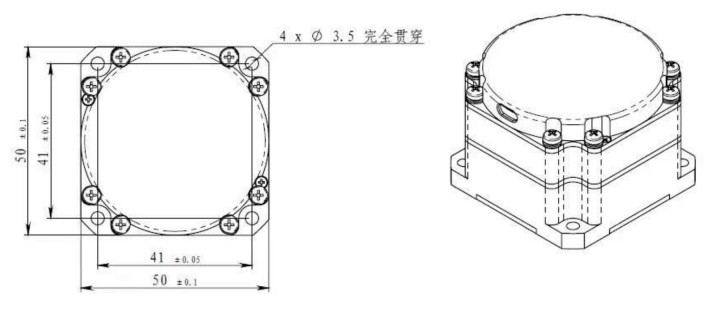

Installation mode: 2nd dimension: 50X50X36

Technical Parameters:

Sn# test item H L
1 Dimensions (mm) 50×50×36 50×50×36
2 start time (s) 5 5
3 Bias drift (°) / h (10s smooth, fix temperature) ≤0.1 ≤0.3
4 Bias drift (°) / h (10s smooth) -45~ + 70℃ ≤0.3 ≤0.5
5 Bias repeatability (°) / h ≤0.05 ≤0.1
6 Random walk coefficient(º)/h1/2 ≤0.01 ≤0.02
7 Scale factor non-linearity (ppm) ≤10 ≤20
8 Scale factor repeatability (ppm) ≤10 ≤20
9 Operate temperature ℃ -45～+70 -45～+70
10 Storage temperature (℃) -50～+80 -50～+80
11 Dynamic range (°) / s ±900 ±900
12 Supply voltage (V) +5 +5
13 Steady-state power consumption (full temperature) (W) <4 <4
14 weight (g) ＜130 ＜130


Support and Services:

Electronic Gyroscope Sensor Technical Support and Service
  • Provide technical support for any product related questions
  • Provide assistance with installation and setup of the product
  • Provide troubleshooting support to resolve any technical issues
  • Provide software updates and patches to ensure the product is up to date
  • Provide assistance with warranty claims and repairs
  • Provide advice and guidance on best practices for using the product
  • Provide training and education on the product and its features


Packing and Shipping:

Packaging and Shipping of Electronic Gyroscope Sensor

All Electronic Gyroscope Sensors should be packaged and shipped in accordance with the following guidelines:

  • The Gyroscope Sensors should be packed in a sturdy box with enough cushioning material to protect it from any shock or vibration.
  • The box should be clearly labeled with the contents, destination, and sender information.
  • The box should be sealed with a tamper-evident seal, to ensure that the product has not been tampered with.
  • The box should be shipped via a reputable courier service, to ensure that it arrives in a timely manner and in good condition.
