| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSFG-98 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Dynamic Range: | ±300(°) / S | Storage Temperature Of: | -45～+80℃ |
|---|---|---|---|
| Bias Drift(10s Smooth, Fix Temperature): | ≤0.01(°) / H | Supply Voltage: | ±5V |
| Bias Drift(10s Smooth) -45~ + 70℃: | ≤0.1(°) / H | Random Walk Coefficient: | ≤0.005(º)/h^1/2 |
| Dimensions: | 98×98×35mm | Scale Factor Non-linearity: | ≤10ppm |

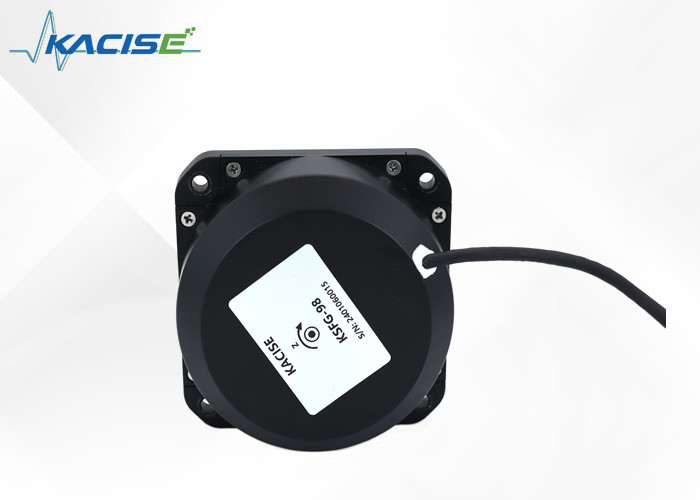

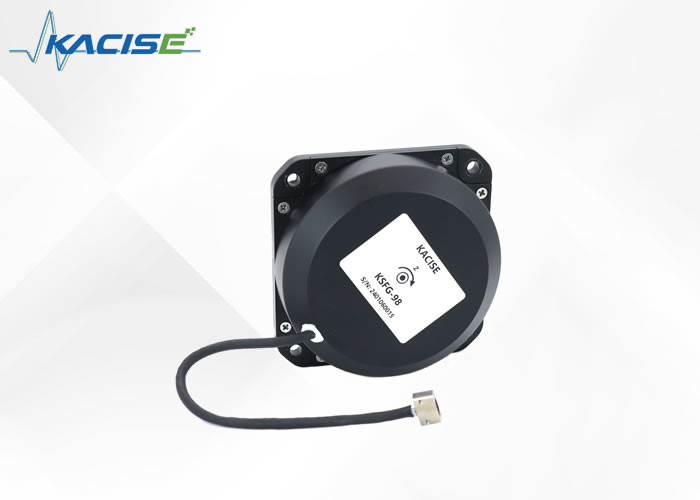

This product serves as an inertial angle rate sensor utilizing the optical Sagnac effect for measuring rotational angular velocity along the sensitive axis of the carrier. The incorporation of a digital closed-loop detection circuit facilitates the extraction of the optical path difference induced by external physical angular speed in clockwise light. Through modulation and demodulation of the optical path signal voltage, closed-loop feedback and control are established, achieving real-time detection of angular velocity signals.
Components and Functionality: Consisting of two integral parts—an optical angular velocity sensitive unit and a signal detection module—this product supplies information on uniaxial angle increments and internal temperature.
Areas of Use: Tailored for applications including photoelectric cranes, conventional cranes, flying platforms, inertial navigation, inertial measurement systems, optical instruments, photographic tools, platform stabilization devices, and inertial measurement instruments.
This high-performance gyroscope sensor is ideal for all types of navigation and attitude determination applications, providing superior reliability and accuracy. It has been designed with the highest quality materials and components, ensuring optimal performance and durability.
The Electronic Gyroscope Sensor is the perfect solution for any navigation and attitude determination needs. With its superior performance, reliability, and accuracy, it is the ideal choice for any application.
|
|---|
Our Electronic Gyroscope Sensor comes with full technical support and service. We provide a wide range of support services to help you maximize the use of your product. Our technical support team is available 24/7 to answer any questions you may have about installation, setup, or use of the product. We also provide free software updates and bug fixes as well as online troubleshooting and problem resolution. In addition, we offer extended warranty options for added peace of mind. We are committed to providing the highest quality service and support and strive to make your purchase experience as smooth and enjoyable as possible.
The Electronic Gyroscope Sensor is packaged and shipped with the following precautions:
