| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSFG-98 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Storage Temperature Of: | -45～+80℃ | Dynamic Range: | ±300(°) / S |
|---|---|---|---|
| Bias Repeatability: | ≤0.03(°) / H | Scale Factor Repeatability: | ≤10ppm |
| Bias Drift(10s Smooth) -45~ + 70℃: | ≤0.1(°) / H | Start Time: | ≤5s |
| Steady-state Power Consumption (full Temperature): | <3W | Dimensions: | 98×98×35mm |

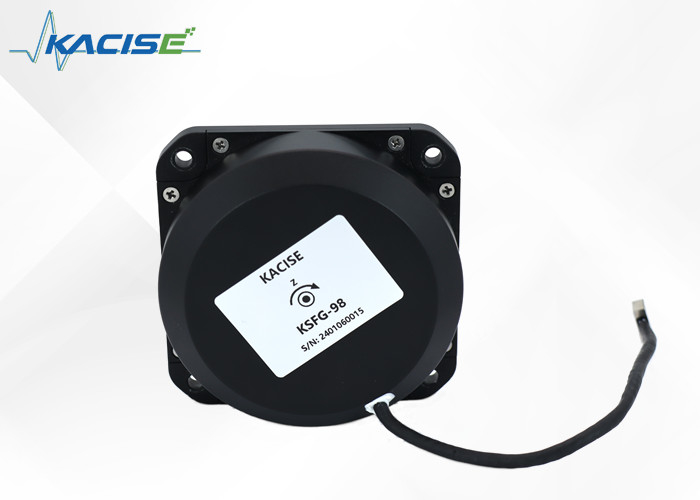

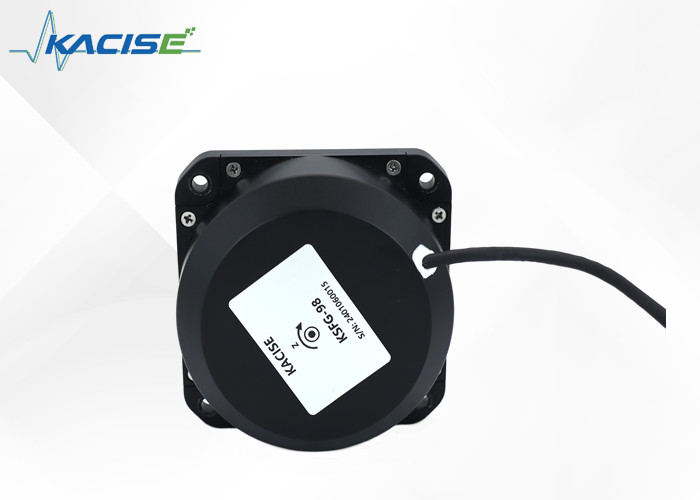

This device functions as an inertial angle rate sensor utilizing the optical Sagnac effect to measure the rotational angular velocity along the sensitive axis of the carrier. Employing a digital closed-loop detection circuit, it extracts the optical path difference of clockwise light induced by external physical angular speed. The voltage signal from the optical path undergoes modulation and demodulation, enabling closed-loop feedback and control for real-time angular velocity signal detection.
Purpose and Composition: Comprising an optical angular velocity sensitive unit and a signal detection component, the product furnishes uniaxial angle increment data and internal temperature information.
Application Range: Primarily designed for applications such as photoelectric cranes, conventional cranes, flying platforms, inertial navigation systems, inertial measurement systems, optical instruments, photographic devices, platform stabilization equipment, and inertial measurement instruments.
This high-performance gyroscope sensor is ideal for all types of navigation and attitude determination applications, providing superior reliability and accuracy. It has been designed with the highest quality materials and components, ensuring optimal performance and durability.
The Electronic Gyroscope Sensor is the perfect solution for any navigation and attitude determination needs. With its superior performance, reliability, and accuracy, it is the ideal choice for any application.
|
|---|
We offer comprehensive technical support and service for our Electronic Gyroscope Sensor. Our support team is available 24 hours a day, 7 days a week to answer any questions or concerns you may have.
Our technical support includes installation and setup, troubleshooting, and maintenance. We also provide detailed product documentation, including user guides, white papers, and FAQs. Additionally, we offer free software and firmware updates for our products.
Finally, we provide a range of customer service options to ensure that you get the help you need, when you need it. We offer phone, email, and live chat support to answer any questions or concerns you may have. Our customer service team is committed to providing the best possible service.
Packaging and Shipping of Electronic Gyroscope Sensor:
The Electronic Gyroscope Sensor will be packaged in a foam-fitted cardboard box to protect it from external damage. The box will also include an instruction manual, a USB cable for power, and a calibration tool. Shipping will be done by courier service, and the package will be tracked with a tracking number.
