| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |

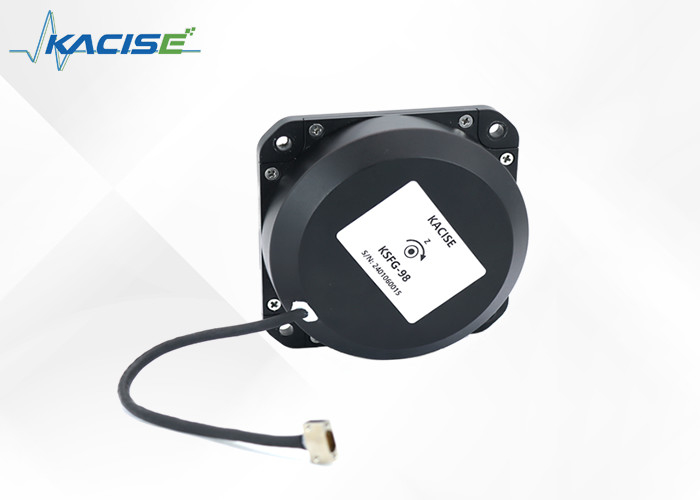

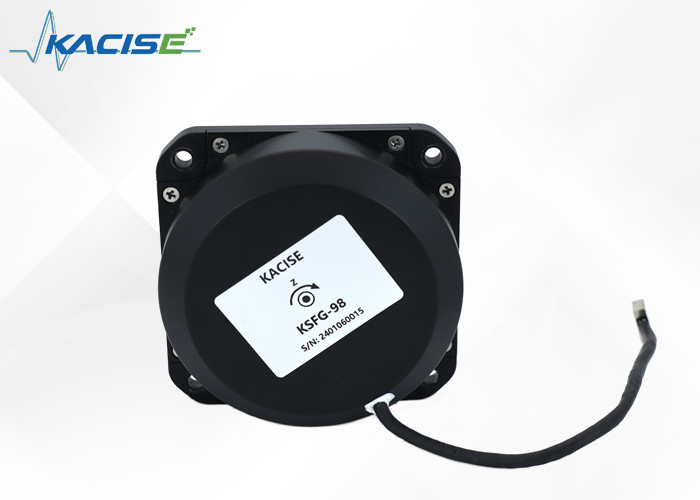

| Model Number: | KSFG-98 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Operate Temperature: | -40～+70℃ | Scale Factor Repeatability: | ≤10ppm |
|---|---|---|---|
| Start Time: | ≤5s | Bias Repeatability: | ≤0.03(°) / H |
| Random Walk Coefficient: | ≤0.005(º)/h^1/2 | Bias Drift(10s Smooth, Fix Temperature): | ≤0.01(°) / H |
| Supply Voltage: | ±5V | Bias Drift(10s Smooth) -45~ + 70℃: | ≤0.1(°) / H |
Constituents and Objectives: Comprising two essential components—an optical angular velocity sensitive unit and a signal detection apparatus—the product provides crucial information on uniaxial angle increments and internal temperature.
Application Scope: Specifically designed for implementation in photoelectric cranes, conventional cranes, flying platforms, inertial navigation systems, inertial measurement systems, optical instruments, photographic devices, platform stabilization equipment, and inertial measurement instruments.
| Sn# | Test item | H | L | Remark |
| 1 | Dimensions (mm) | 98×98×35 | 98×98×35 | |
| 2 | start time (s) | ≤5 | ≤5 | |
| 3 | Bias drift (°) / h (10s smooth, fix temperature) | ≤0.015 | ≤0.03 | |
| 4 | Bias drift (°) / h (10s smooth) -45~ + 70 | ≤0.03 | ≤0.06 | |
| 5 | Bias repeatability (°) / h | ≤0.005 | ≤0.01 | |
| 6 | Random walk coefficient(º)/h1/2 | ≤0.001 | ≤0.002 | |
| 7 | Scale factor non-linearity (ppm) | ≤10 | ≤20 | |
| 8 | Scale factor repeatability (ppm) | ≤10 | ≤20 | |
| 9 | Operate temperature ℃ | -40～+70 | -40～+70 | |
| 10 | Storage temperature of (℃) | -45～+80 | -45～+80 | |
| 11 | Dynamic range (°) / s | ±300 | ±300 | |
| 12 | Supply voltage (V) | ±5 | ±5 | |
| 13 | Steady-state power consumption (full temperature) (W) | <3 | <3 | |
| 14 | weight (g) | ＜550 | ＜550 |
We provide technical support and services for our Electronic Gyroscope Sensor. Our technical support team is available 24 hours a day, 7 days a week to assist you with any questions or issues you may have. We also provide a warranty for our products, ensuring that you can purchase with confidence.
Our customer service team is always available to help with any additional questions or concerns you may have regarding our Electronic Gyroscope Sensor. We strive to provide the best customer service experience possible, and will do our best to ensure you are satisfied with your purchase.
For any additional information on our Electronic Gyroscope Sensor, please feel free to contact us directly. We look forward to hearing from you!
The Electronic Gyroscope Sensor is securely packaged in a foam-lined box for maximum protection during shipping. It is then placed in a sturdy cardboard shipping box with additional packaging material for extra cushioning. The box is sealed and labeled with the product name and shipping address.
The package is then shipped via a reliable courier service such as FedEx, UPS, or DHL. Tracking information will be provided to the customer so that they can easily monitor the progress of the shipment.
