| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSFG-98 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Supply Voltage: | ±5V | Start Time: | ≤5s |
|---|---|---|---|
| Operate Temperature: | -40～+70℃ | Random Walk Coefficient: | ≤0.005(º)/h^1/2 |
| Storage Temperature Of: | -45～+80℃ | Bias Repeatability: | ≤0.03(°) / H |
| Bias Drift(10s Smooth, Fix Temperature): | ≤0.01(°) / H | Dynamic Range: | ±300(°) / S |

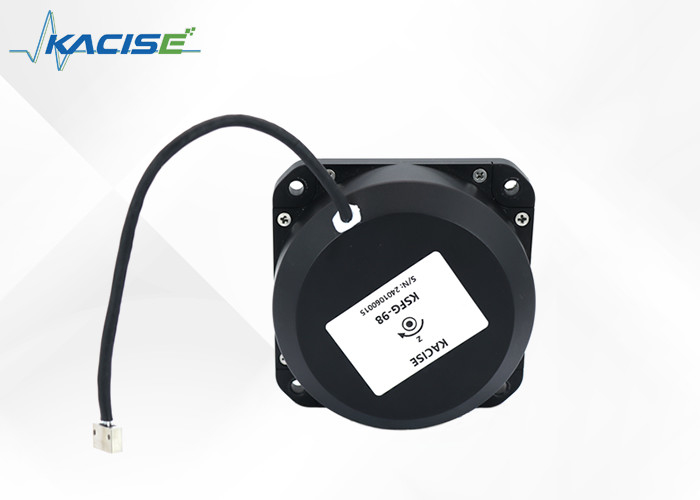

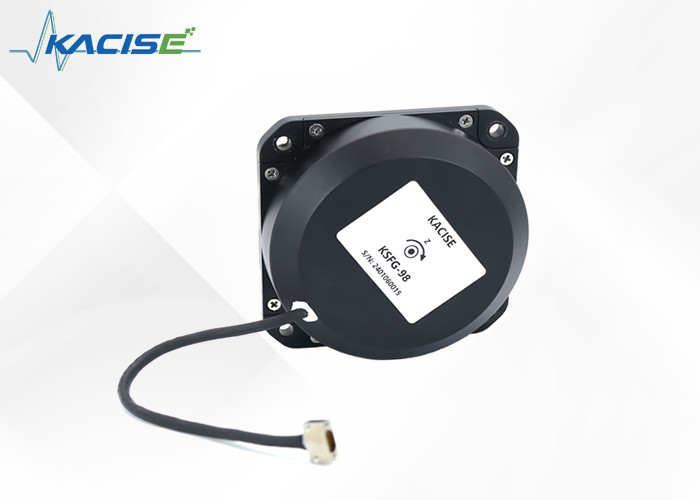

The Electronic Gyroscope Sensor is a compact and reliable fiber optic gyroscope with high accuracy and stability. It features excellent dynamic range, low power consumption, wide-operating temperature range and low cost. It is a perfect choice for applications involving precision navigation, attitude measurement, and motion control.
Designed as an inertial angle rate sensor, this product utilizes the optical Sagnac effect for measuring rotational angular velocity along the sensitive axis of the carrier. A digital closed-loop detection circuit is integral to extracting the optical path difference in clockwise light induced by external physical angular speed. The voltage signal from the optical path undergoes modulation and demodulation, enabling closed-loop feedback and control for real-time angular velocity signal detection.
Structure and Purpose: Comprising an optical angular velocity sensitive unit and a signal detection component, the product furnishes information on uniaxial angle increments and internal temperature.
Areas of Use: Tailored for applications including photoelectric cranes, conventional cranes, flying platforms, inertial navigation, inertial measurement systems, optical instruments, photographic devices, platform stabilization equipment, and inertial measurement instruments.
| Sn# | Test item | H | L | Remark |
| 1 | Dimensions (mm) | 98×98×35 | 98×98×35 | |
| 2 | start time (s) | ≤5 | ≤5 | |
| 3 | Bias drift (°) / h (10s smooth, fix temperature) | ≤0.015 | ≤0.03 | |
| 4 | Bias drift (°) / h (10s smooth) -45~ + 70 | ≤0.03 | ≤0.06 | |
| 5 | Bias repeatability (°) / h | ≤0.005 | ≤0.01 | |
| 6 | Random walk coefficient(º)/h1/2 | ≤0.001 | ≤0.002 | |
| 7 | Scale factor non-linearity (ppm) | ≤10 | ≤20 | |
| 8 | Scale factor repeatability (ppm) | ≤10 | ≤20 | |
| 9 | Operate temperature ℃ | -40～+70 | -40～+70 | |
| 10 | Storage temperature of (℃) | -45～+80 | -45～+80 | |
| 11 | Dynamic range (°) / s | ±300 | ±300 | |
| 12 | Supply voltage (V) | ±5 | ±5 | |
| 13 | Steady-state power consumption (full temperature) (W) | <3 | <3 | |
| 14 | weight (g) | ＜550 | ＜550 |
The Kacise KSFG-98 Electronic Gyroscope Sensor is the perfect choice for applications that require precise measurement of inclination and angular velocity, such as medical equipment, automotive electronic systems, industrial automation, and consumer electronics. It is suitable for automotive electronic stability control, vehicle rollover detection and prevention, motion recognition, navigation control, attitude control, inertial navigation, and other applications. This product is widely used in industrial machinery, metrology, unmanned aerial vehicles, robotics, and other fields.
Electronic Gyroscope Sensor provides technical support and service to ensure that customers have a great experience with their product.
We provide technical support through email, telephone, or live chat. Our team of experienced technicians are available to answer any questions and provide prompt and reliable support.
We also provide service options, including installation and repair services. Our technicians can help with installation and setup, troubleshooting, and repairs, if needed.
If you need assistance with your Electronic Gyroscope Sensor, please do not hesitate to reach out to us. We are here to help!
The Electronic Gyroscope Sensor is securely packaged in a tamper-proof bubble wrap or foam insert. The package is then placed in a shipping box for greater protection during transit. All packages are sent via insured, tracked mail for delivery to the customer.
