| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSFG-98 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Scale Factor Repeatability: | ≤10ppm | Dynamic Range: | ±300(°) / S |
|---|---|---|---|
| Bias Drift(10s Smooth, Fix Temperature): | ≤0.01(°) / H | Weight (g): | <550 |
| Scale Factor Non-linearity: | ≤10ppm | Random Walk Coefficient: | ≤0.005(º)/h^1/2 |
| Steady-state Power Consumption (full Temperature): | <3W | Start Time: | ≤5s |

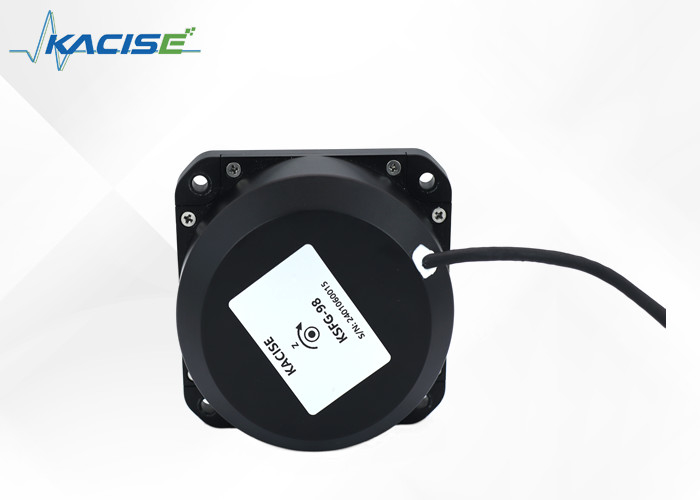

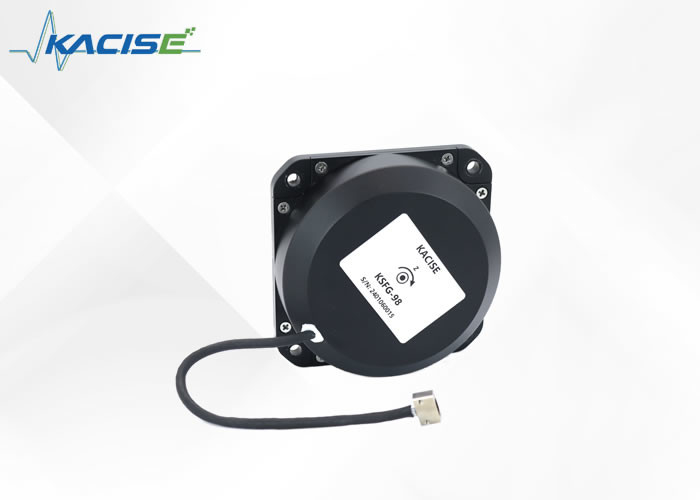

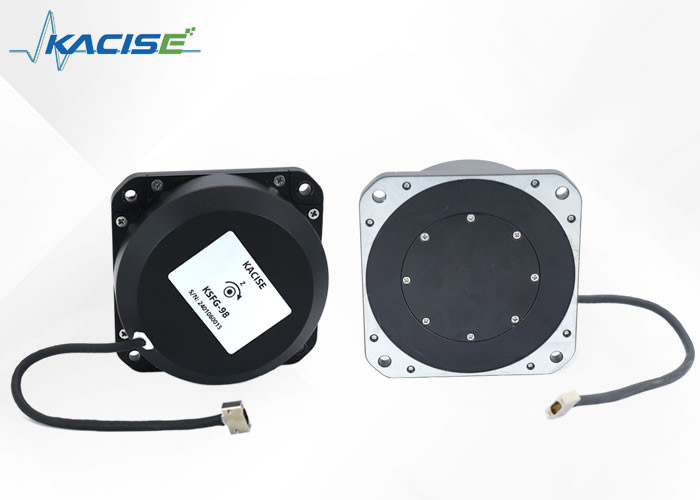

The Electronic Gyroscope Sensor is a compact and reliable fiber optic gyroscope with high accuracy and stability. It features excellent dynamic range, low power consumption, wide-operating temperature range and low cost. It is a perfect choice for applications involving precision navigation, attitude measurement, and motion control.
Operating on the principles of the optical Sagnac effect, this device serves as an inertial angle rate sensor, measuring rotational angular velocity along the carrier's sensitive axis. A digital closed-loop detection circuit is employed for extracting the optical path difference in clockwise light induced by external physical angular speed. The voltage signal from the optical path undergoes modulation and demodulation, facilitating closed-loop feedback and control for real-time angular velocity signal detection.
Composition and Function: Comprising an optical angular velocity sensitive unit and a signal detection mechanism, the product delivers information on uniaxial angle increments and internal temperature.
Range of Applications: Primarily designed for deployment in photoelectric cranes, conventional cranes, flying platforms, inertial navigation systems, inertial measurement systems, optical instruments, photographic devices, platform stabilization equipment, and inertial measurement instruments.
|
Sn# |
Test item |
H |
L |
Remark |
|
1 |
Dimensions (mm) |
98×98×35 |
98×98×35 |
|
|
2 |
start time (s) |
≤5 |
≤5 |
|
|
3 |
Bias drift (°) / h (10s smooth, fix temperature) |
≤0.015 |
≤0.03 |
|
|
4 |
Bias drift (°) / h (10s smooth) -45~ + 70 |
≤0.03 |
≤0.06 |
|
|
5 |
Bias repeatability (°) / h |
≤0.005 |
≤0.01 |
|
|
6 |
Random walk coefficient(º)/h1/2 |
≤0.001 |
≤0.002 |
|
|
7 |
Scale factor non-linearity (ppm) |
≤10 |
≤20 |
|
|
8 |
Scale factor repeatability (ppm) |
≤10 |
≤20 |
|
|
9 |
Operate temperature ℃ |
-40～+70 |
-40～+70 |
|
|
10 |
Storage temperature of (℃) |
-45～+80 |
-45～+80 |
|
|
11 |
Dynamic range (°) / s |
±300 |
±300 |
|
|
12 |
Supply voltage (V) |
±5 |
±5 |
|
|
13 |
Steady-state power consumption (full temperature) (W) |
<3 |
<3 |
|
|
14 |
weight (g) |
＜550 |
＜550 |
|
At
We offer a variety of services to ensure that your Electronic Gyroscope Sensor is functioning properly and you have the best experience possible. These services include:
For additional information or assistance, please contact our support team at
The Electronic Gyroscope Sensor is packaged and shipped in a corrugated box to ensure the product is protected during transit.
The box is filled with foam to absorb any shock or vibration that may occur.
The box is then sealed with plastic wrap and labeled with the product name and shipping address.
The Electronic Gyroscope Sensor is then placed in a larger cardboard box and sealed with packing tape for added protection.
The package is then shipped via a reliable carrier.
