| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSFG-120 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Dynamic Range: | ±300(°/s) | Storage Temperature Of: | -50～+80(℃) |
|---|---|---|---|
| Start Time: | ≤5(s) | Operate Temperature: | -45～+70 (℃) |
| Weight: | <1000(g) | Bias Repeatability: | ≤0.001(°/h) |
| Dimensions: | 120×120×38(mm) | Bias Drift(10s Smooth) -45~ + 70℃: | ≤0.003(°/h) |
The Electronic Gyroscope Sensor is a high-performance inclinometer sensor, which is also known as a fiber optic gyroscope or gyro north finder. This cutting-edge technology offers an impressive array of features, including a scale factor non-linearity of ≤5ppm, dimensions of 120×120×38mm, a start time of ≤5s, and a supply voltage of ±5V. It is also able to withstand extreme temperatures, from -50～+80℃. This high-precision gyroscope sensor is ideal for a variety of applications, from navigation to monitoring. Its accurate readings make it the perfect choice for even the most demanding tasks.
| Sn# | Test item | H | L |
| 1 | Dimensions (mm) | 120×120×38 | 120×120×38 |
| 2 | Start time (s) | 5 | 5 |
| 3 | Bias drift (°/h) (10s smooth, fix temperature) | ≤0.001 | ≤0.003 |
| 4 | Bias drift (°/h) (10s smooth -45~+70℃) | ≤0.003 | ≤0.006 |
| 5 | Bias repeatability (°/h) | ≤0.001 | ≤0.003 |
| 6 | Random walk coefficient(°/h1/2) | ≤0.0003 | ≤0.0008 |
| 7 | Scale factor non-linearity (ppm) | ≤5 | ≤10 |
| 8 | Scale factor repeatability (ppm) | ≤5 | ≤10 |
| 9 | Operate temperature (℃) | -45～+70 | -45～+70 |
| 10 | Storage temperature (℃) | -50～+80 | -50～+80 |
| 11 | Dynamic range (°/s) | ±300 | ±300 |
| 12 | Supply voltage (V) | ±5 | ±5 |
| 13 | Steady-state power consumption (full temperature) (W) | <6 | <6 |
| 14 | Weight (g) | ＜1000 | ＜1000 |

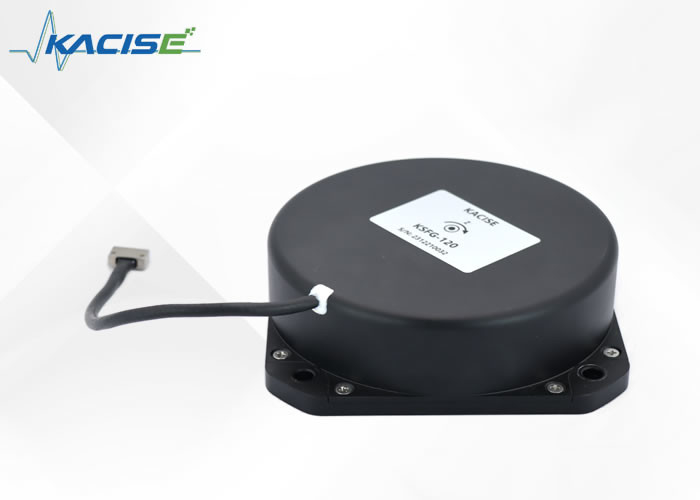

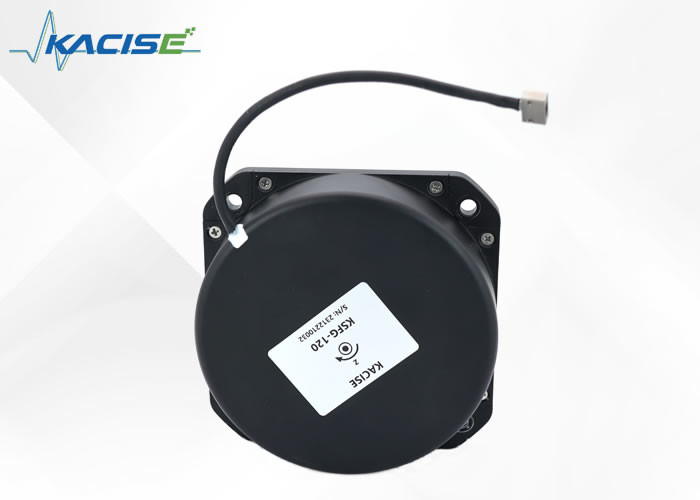

Kacise KSFG-120 Electronic Gyroscope Sensor is an analog inclinometer sensor with certificate of explosion-proof, CE, minimum order quantity of 1pcs and weight of less than 1000g. It is a great choice for motion sensing, inertial navigation, attitude measurement, and stabilization. The scale factor repeatability is ≤5ppm, bias drift is ≤0.001°/H, and random walk coefficient is ≤0.0003º/h^1/2. All units come in individual boxes and are packed in standard packages or customers requests available. Delivery time is 5-8 working days and payment terms are T/T, Western Union, MoneyGram. Kacise KSFG-120 Electronic Gyroscope Sensor has a supply ability of 1000 pieces per week. Dimensions of the sensor are 120×120×38mm.
Kacise KSFG-120 Electronic Gyroscope Sensor is widely used in various applications, such as aerospace, automotive, consumer electronics, industrial and medical applications. It is ideal for precision attitude measurement and stabilization in airplanes, drones, robots, ships, and submarines. It is also great for health monitoring and sports motion analysis. Moreover, it is often used in navigation, attitude control, and image stabilization in cameras and smart phones.
We provide technical support and services for Electronic Gyroscope Sensor, including:
The Electronic Gyroscope Sensor is securely packaged and shipped in a box that is 12 x 12 x 12 inches, and weighs 10 pounds. The box is comprised of corrugated cardboard, and is securely sealed with packing tape.
The box is shipped via ground courier service, and the delivery time is 2-5 business days. The customer will receive tracking information about the package when it is shipped, and will be able to track the package online until it is delivered.
For international orders, the package will be shipped via air freight, and the delivery time is 5-10 business days. The customer will receive tracking information about the package when it is shipped, and will be able to track the package online until it is delivered.
We guarantee that the Electronic Gyroscope Sensor will arrive in perfect condition, and we take extra precautions to ensure that the package is secure during transit. ```
