| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSFG-120 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Bias Repeatability: | ≤0.001(°/h) | Scale Factor Non-linearity: | ≤5(ppm) |
|---|---|---|---|
| Weight: | <1000(g) | Bias Drift(10s Smooth, Fix Temperature): | ≤0.001(°/h) |
| Storage Temperature Of: | -50～+80(℃) | Dimensions: | 120×120×38(mm) |
| Steady-state Power Consumption (full Temperature): | <6(W) | Random Walk Coefficient: | ≤0.0003(º/h^1/2) |

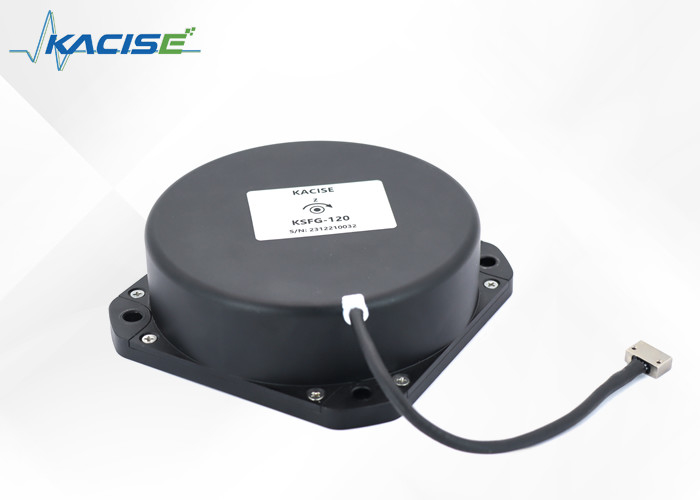

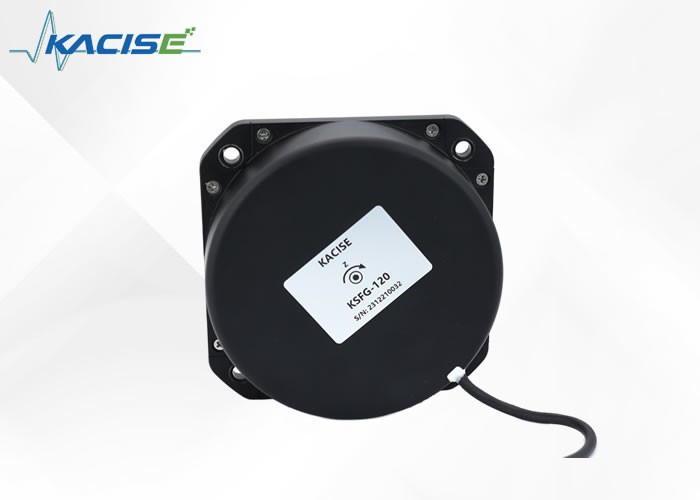

This product is an inertial angle rate sensor utilizing the optical Sagnac effect for measuring the rotational angular velocity along the sensitive axis of the carrier. Employing a digital closed-loop detection circuit, it extracts the optical path difference of clockwise light caused by external physical angular speed. Modulation and demodulation of the optical path signal's voltage enable closed-loop feedback and control, achieving real-time angular velocity signal detection.
Composition and Purpose: Comprising an optical angular velocity sensitive unit and a signal detection module, the product offers information on uniaxial angle increments and internal temperature.
Application Scope: Primarily suitable for photoelectric cranes, conventional cranes, flying platforms, inertial navigation, inertial measurement systems, optical instruments, photographic devices, platform stabilization equipment, inertial measurement instruments, and various other applications.
| Sn# | Test item | H | L |
| 1 | Dimensions (mm) | 120×120×38 | 120×120×38 |
| 2 | Start time (s) | 5 | 5 |
| 3 | Bias drift (°/h) (10s smooth, fix temperature) | ≤0.001 | ≤0.003 |
| 4 | Bias drift (°/h) (10s smooth -45~+70℃) | ≤0.003 | ≤0.006 |
| 5 | Bias repeatability (°/h) | ≤0.001 | ≤0.003 |
| 6 | Random walk coefficient(°/h1/2) | ≤0.0003 | ≤0.0008 |
| 7 | Scale factor non-linearity (ppm) | ≤5 | ≤10 |
| 8 | Scale factor repeatability (ppm) | ≤5 | ≤10 |
| 9 | Operate temperature (℃) | -45～+70 | -45～+70 |
| 10 | Storage temperature (℃) | -50～+80 | -50～+80 |
| 11 | Dynamic range (°/s) | ±300 | ±300 |
| 12 | Supply voltage (V) | ±5 | ±5 |
| 13 | Steady-state power consumption (full temperature) (W) | <6 | <6 |
| 14 | Weight (g) | ＜1000 | ＜1000 |
We provide comprehensive technical support and service for our Electronic Gyroscope Sensor. Our dedicated customer service team is available to answer any questions or concerns you may have about the product. We offer free product training and troubleshooting, as well as free replacement parts and repairs for any product defects.
We also provide detailed product documentation, including user manuals, installation guides, and product updates. Our technical support team is available via phone, email, and live chat to help you with any issues you may have. We also offer online and on-site technical support for our products.
If you need more information, please contact us at any time. We are dedicated to providing excellent customer service and technical support for our Electronic Gyroscope Sensor.
Packaging and Shipping for Electronic Gyroscope Sensor:
