Product Description:

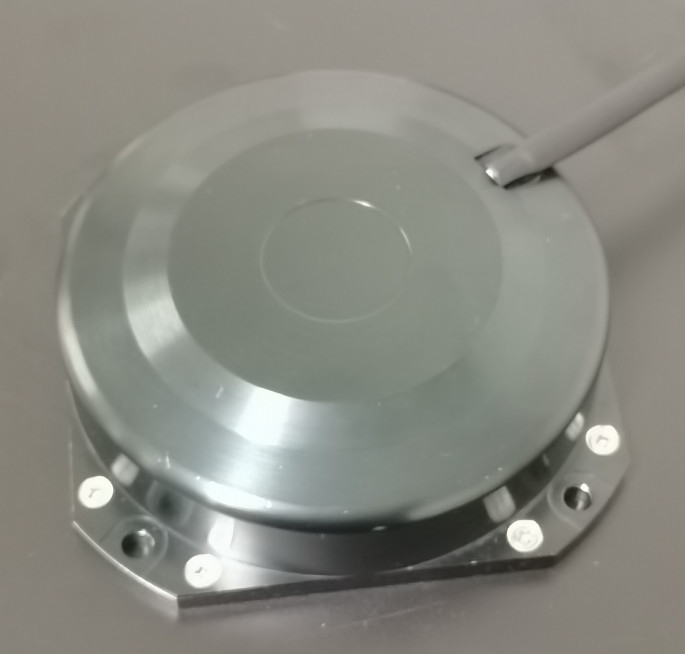

This device is an inertial angle rate sensor utilizing the optical Sagnac effect to measure the rotational angular velocity along the sensitive axis of the carrier. A digital closed-loop detection circuit is employed to extract the optical path difference of clockwise light resulting from external physical angular speed. Modulation and demodulation of the optical path signal's voltage enable closed-loop feedback and control, achieving real-time angular velocity signal detection.
Function:The product comprises two components—a sensitive unit for optical angular velocity and a signal detection module—providing information on uniaxial angle increments and internal temperature
.
Application Range:Primarily suitable for photoelectric cranes, conventional cranes, flying platforms, inertial navigation, inertial measurement systems, optical instruments, photographic devices, platform stabilization equipment, inertial measurement instruments, and other applications.
Technical Parameters:
|
Sn#
|
Test item
|
H
|
L
|
|
1
|

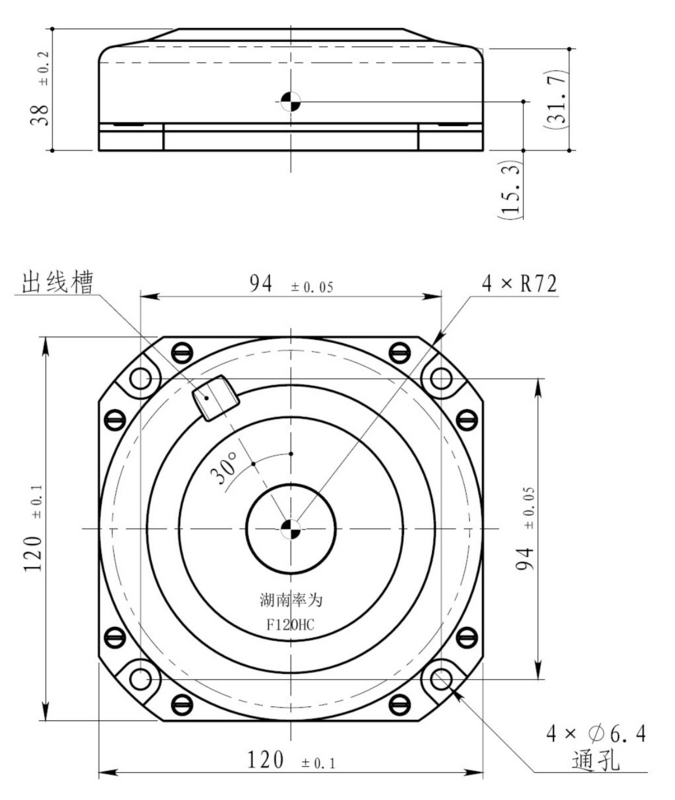

Dimensions (mm)
|
120×120×38
|
120×120×38
|
|
2
|
start time (s)
|
5
|
5
|
|
3
|
Bias drift (°) / h (10s smooth, fix temperature)
|
≤0.001
|
≤0.003
|
|
4
|
Bias drift (°) / h (10s smooth) -45~ + 70
|
≤0.003
|
≤0.006
|
|
5
|
Bias repeatability (°) / h
|
≤0.001
|
≤0.003
|
|
6
|
Random walk coefficient(º)/h1/2
|
≤0.0003
|
≤0.0008
|
|
7
|
Scale factor non-linearity (ppm)
|
≤5
|
≤10
|
|
8
|
Scale factor repeatability (ppm)
|
≤5
|
≤10
|
|
9
|
Operate temperature ℃
|
-45～+70
|
-45～+70
|
|
10
|
Storage temperature of (℃)
|
-50～+80
|
-50～+80
|
|
11
|
Dynamic range (°) / s
|
±300
|
±300
|
|
12
|
Supply voltage (V)
|
±5
|
±5
|
|
13
|
Steady-state power consumption (full temperature) (W)
|
<6
|
<6
|
|
14
|
weight (g)
|
＜1000
|
＜1000
|
|
|
Support and Services:
Electronic Gyroscope Sensor Technical Support and Service
We provide technical support and service to ensure that our customers get the best out of their Electronic Gyroscope Sensor. Our technical support team is available 24/7 to help with any questions or issues regarding the device.
We offer a range of services to help you get the most out of your Electronic Gyroscope Sensor. These include:
- Installation and setup assistance
- Troubleshooting and issue resolution
- Software updates and upgrades
- Hardware repairs and replacements
For any further questions or help with your Electronic Gyroscope Sensor, please contact our technical support team.
Packing and Shipping:
Packaging and Shipping for Electronic Gyroscope Sensor
Our Electronic Gyroscope Sensor is packaged with care to ensure that it is not damaged during shipping. The packaging consists of an inner box and an outer box for extra protection. The inner box is designed to provide maximum protection and is lined with foam to protect the contents. The outer box is made of strong cardboard and is sealed with a tamper-proof seal to ensure that the product is not tampered with during shipping.
The product is shipped via a trusted carrier to ensure prompt and safe delivery. The shipment is tracked to ensure that it is delivered on time and without damage. We also offer express shipping for those customers who need their product urgently.
