| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KsINS-01 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Dynamic Range: | Speed: -2000m/s ~ 2000m/s; Acceleration: -30g ~ 30g; Acceleration: -5g/s ~ 5g/s. | Weight: | Host ≤ 12.5kg |
|---|---|---|---|
| Spatiotemporal Synchronization Accuracy When Satellites Are Available (RMS): | 0.1m/1ns | Working/storage Temperature(℃): | -55℃ ~+70℃ |
| Installation Dimensions: | 160mm X 150mm | Data Link Working Frequency Band: | 3.4GHz~3.6GHz |
| Spatiotemporal Synchronization Accuracy In Case Of Satellite Rejection (RMS): | 5m/5ns | Input/output Interface: | 2 RS-422, 1 RS-232, 1 100M Ethernet |
| High Light: | Inertial Navigation System Electronic Gyroscope Sensor,3.6GHz Electronic Gyroscope Sensor |
||
Essential for any mobile entity is the trio of precision, velocity, and balance. This significance is amplified in the context of sophisticated vehicles such as airplanes, autonomous vehicles, ships, spacecraft, submarines, and unmanned aerial vehicles (UAVs). Here, the necessity for a precise system to manage and govern flawless movement becomes crucial. Inertial navigation systems step in as a vital component, empowering these vehicles to execute their tasks securely and precisely, without being tethered to GPS.

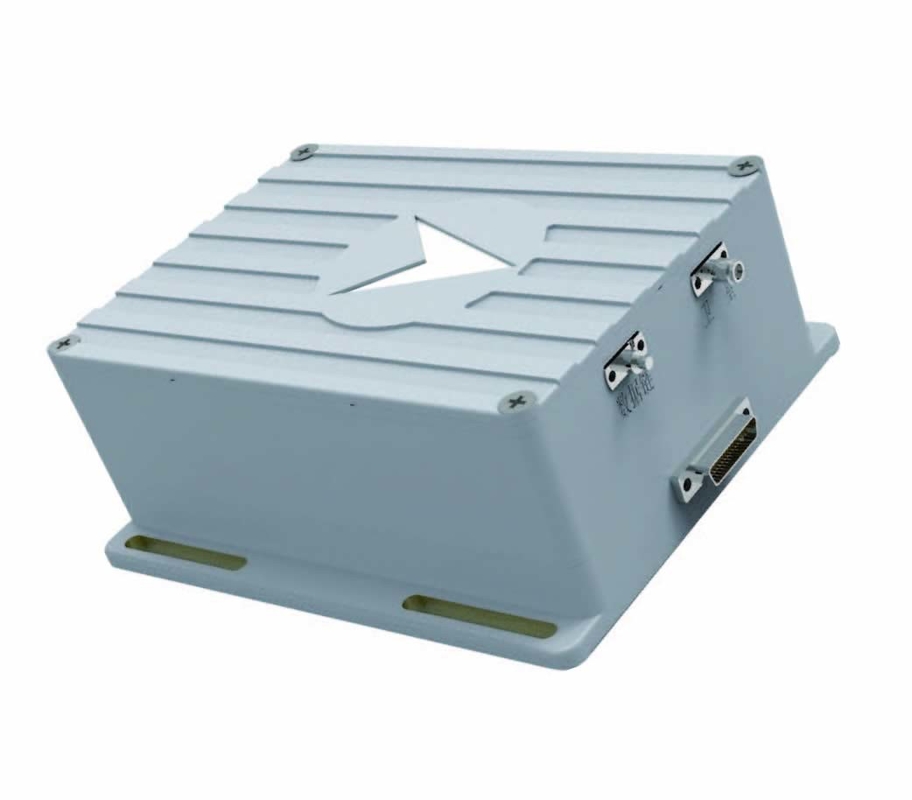

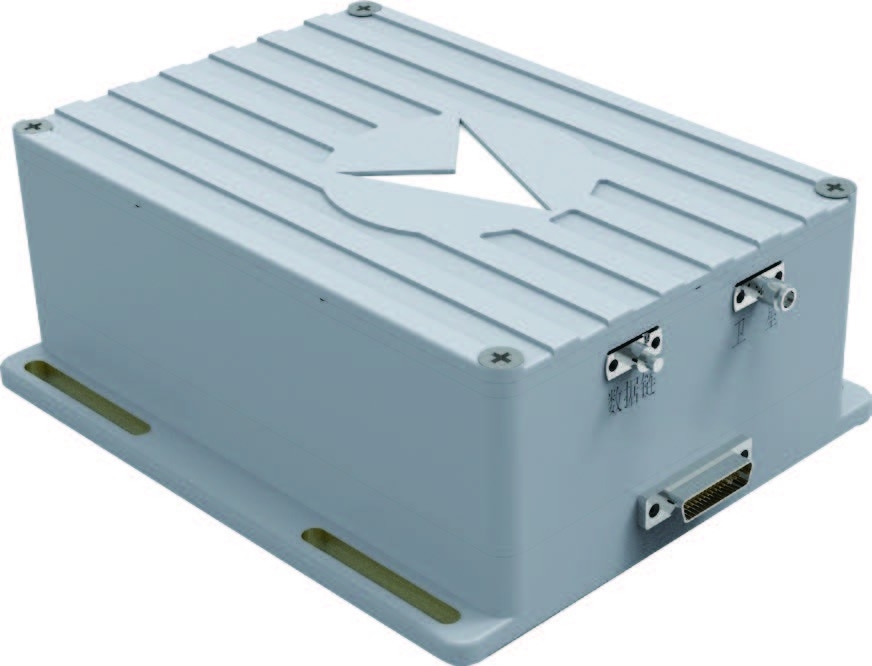

Geared towards UAV swarm formation flight, the KsINS-01 integrated communication and guidance cooperative navigation system combines satellite navigation and data links to deliver precise spatio-temporal benchmarks for UAVs. Equipped with Beidou third-generation B1 and B3 frequency signal reception, the system enables inter-node networking communication and features high-precision space-time synchronization functions. Its spatio-temporal synchronization accuracy is maintained at better than 0.1m/1ns under satellite effective conditions and exceeds 5m/5ns under satellite rejection conditions.
● High-precision spatio-temporal synchronization between nodes based on carrier difference
● High-precision spatio-temporal synchronization between nodes under satellite rejection conditions
● In-depth integrated design of satellite navigation and data link
● Highly reliable networking and data transmission between nodes
Performance indicators :
| Satellite positioning accuracy (2σ) | Level: 6m, elevation: 8m |
| Data link working frequency band | 3.4GHz~3.6GHz |
| Frequency hopping rate | 80000 hops/s |
| Communication distance | 100km |
| Communication rate | 200kbps |
| Number of supported nodes | 64 |
|
Spatiotemporal synchronization accuracy when satellites are available (RMS) |
0.1m/1ns |
|
Spatiotemporal synchronization accuracy in case of satellite rejection (RMS) |
5m/5ns |
Application environment :
| Working/storage temperature(℃) | -55℃ ~+70℃ |
| Dynamic Range |
Speed: -2000m/s ~ 2000m/s; Acceleration: -30g ~ 30g; acceleration: -5g/s ~ 5g/s. |
| Mechanical properties |
Endurance shock environment: half sine wave 20g, 11ms Endurance vibration environment: typical drone vibration environment |
Physical properties:
| Dimensions | 160mm x 150mm x 56mm |
| Installation dimensions | 160mm x 150mm |
| weight | Host ≤ 12.5kg |
External Interface:
| Power Requirement | 18V~36V DC, power consumption ≤ 30W, allowed power interruption is no more than 5ms |
| Input/output interface | 2 RS-422, 1 RS-232, 1 100M Ethernet |
| Data output frequency | 10Hz (typical) |
The Inertial Navigation System is packaged and shipped in a secure cardboard box. It is filled with non-abrasive, environmentally friendly packing materials to keep the sensor safe from damage during transit. The box is then sealed with tape and labeled with the product's name and the customer's shipping address. It is then placed inside a larger shipping box with additional protective materials to ensure safe delivery.
