| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSQA07 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Weight: | ≤75(g) | Six-month Composite Repeatability: | ≤30 (1σ) (10-6) |
|---|---|---|---|
| Resolution: | <1(μg) | Storage Temperature: | -55~ +80(℃) |
| Size: | Ø25.4×29(mm) | Bias Temperature Sensitivity: | ≤10(μg/℃) |
| Scale Factor One-month Composite Repeatability: | ≤10 (1σ) (10-6) | Scale Factor: | 1.2 ~ 1.6(mA/g) |
| High Light: | Quartz Accelerometer Detector,Flexible Accelerometer Detector,Pendulum Accelerometer Sensor |
||
Quartz Flexible Pendulum Accelerometer: A Technological Breakthrough The Quartz Flexible Pendulum Accelerometer, a force feedback adaptation, showcases significant advancements over the liquid floating pendulum accelerometer. The pivotal distinction lies in the detection method: the quartz flexible accelerometer, instead of floating, is elastically connected to a flexible beam support. This unique design incorporates elastic moments, resulting in heightened accuracy, robust resistance to disturbances, an expansive measurement range, and a remarkable overload capacity.
Quartz flexible pendulum accelerometers are currently in widespread use for the measurement of diverse linear accelerations, vibration accelerations, and parameters including speed, distance, angular velocity, and angular displacement. Notably, their successful applications span both military and civilian sectors, encompassing satellite microgravity measurement systems, high-precision inertial navigation systems, rock-based drilling, oil drilling, continuous inclinometer systems, and aerospace endeavors such as launch vehicles, ballistic missiles, and spacecraft.
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range
● Triangle precision mounting flanges
● Application in the inertial navigation system of the new generation weapon
|
|---|
| Outline | |
 |
|

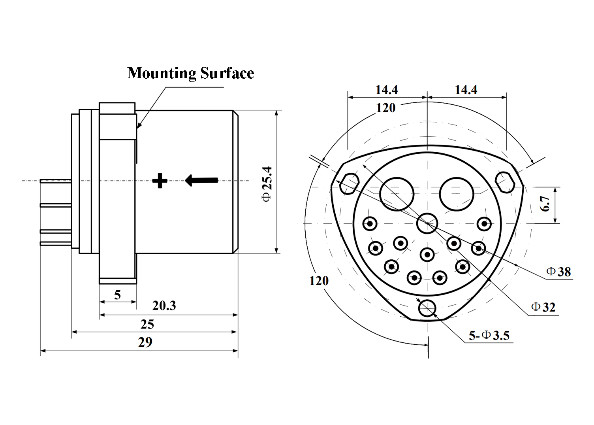

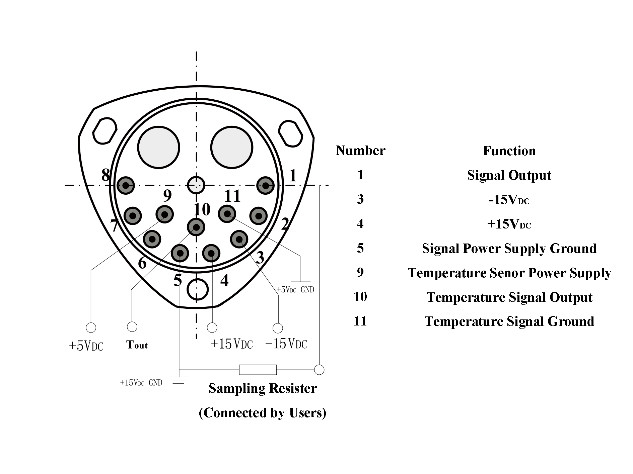

| KSQA07 Configuration Drawings | KSQA07 Pin & Wiring Diagram |
| Environment | |
| Vibration Peak Sine | 15g@20Hz ~ 2000Hz |
| Shock | 100g, half-sine, 8ms ~ 12ms |
| Storage Temperature | -55℃ ~ +80℃ |
The Accelerometer Sensor product offers technical support and services to our customers. Our team of experts is available to answer any questions about the product, provide technical assistance, and troubleshoot any issues users may have. We have a team of dedicated professionals available to provide support and services in a timely manner. Our team is also available to provide custom solutions to meet the needs of our customers. If you have any questions or need additional assistance, please do not hesitate to contact us.
The accelerometer sensor needs to be packed in a heavy-duty cardboard box, which is strong enough to protect the product during shipping.
The box should be clearly labeled with the product's name and address of the shipper and recipient. The box should also include instructions for proper use of the product. Inside the box, the accelerometer sensor should be properly secured in place so that it does not move during shipping.
The box should be sealed with packing tape, and a shipping label should be attached. The label should include the sender's and recipient's addresses, as well as the name of the product. The package should also include a tracking number so that it can be tracked during transit.
The package should be sent via a reputable carrier such as UPS, FedEx, or DHL. The package should be insured for its full value, and the shipping company should be notified of any special instructions.
