Place of Origin: | China (Mainland) |
Brand Name: | Kacise |
Certification: | certificate of explosion-proof, CE |
Model Number: | KSQA07 |
Minimum Order Quantity: | 1pcs |
---|---|
Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
Delivery Time: | 5-8 working days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 1000 Pieces per Week |
Scale Factor One-month Composite Repeatability: | ≤10 (1σ) (10-6) | Scale Factor Temperature Sensitivity: | ≤10 (10-6/℃) |
---|---|---|---|
Weight: | ≤75(g) | Scale Factor: | 1.2 ~ 1.6(mA/g) |
Six-month Composite Repeatability: | ≤30 (1σ) (10-6) | Operating Temperature: | -45 ~ +80(℃) |
Shock: | 100g, Half-sine, 8ms ~ 12ms | Bias Temperature Sensitivity: | ≤10(μg/℃) |

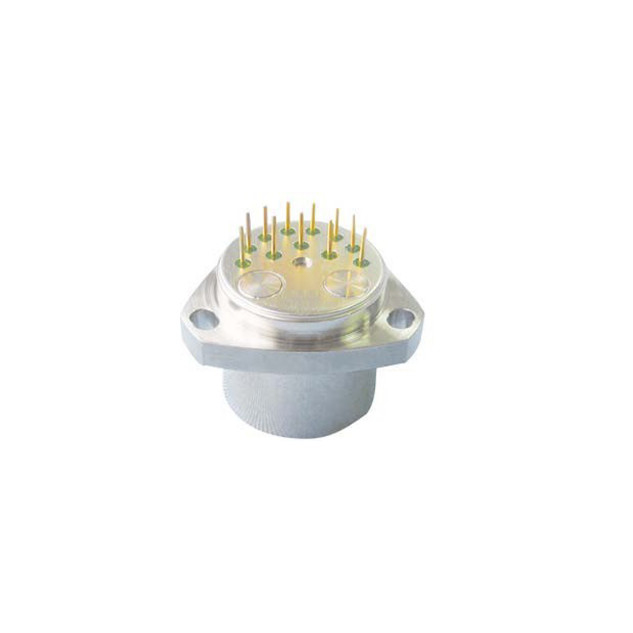

The Innovative Quartz Flexible Pendulum Accelerometer The Quartz Flexible Pendulum Accelerometer, a force feedback variant, signifies a progression from the traditional liquid floating pendulum accelerometer. The primary disparity lies in its detection quality; unlike its predecessor, the quartz flexible accelerometer is not floating but is elastically linked to a flexible beam support. This structural modification introduces elastic moments, thereby providing the accelerometer with superior accuracy, formidable resistance to disturbances, a vast measurement range, and substantial overload capacity.
In the present context, quartz flexible pendulum accelerometers play a crucial role in measuring linear accelerations, vibration accelerations, and parameters like speed, distance, angular velocity, and angular displacement. Their successful implementation extends across various domains, encompassing military applications such as satellite microgravity measurement systems and high-precision inertial navigation systems, as well as civilian applications like rock-based drilling, oil drilling, continuous inclinometer systems, and aerospace endeavors involving launch vehicles, ballistic missiles, and spacecraft.
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range
● Triangle precision mounting flanges
● Application in the inertial navigation system of the new generation weapon
|
---|
Outline | |

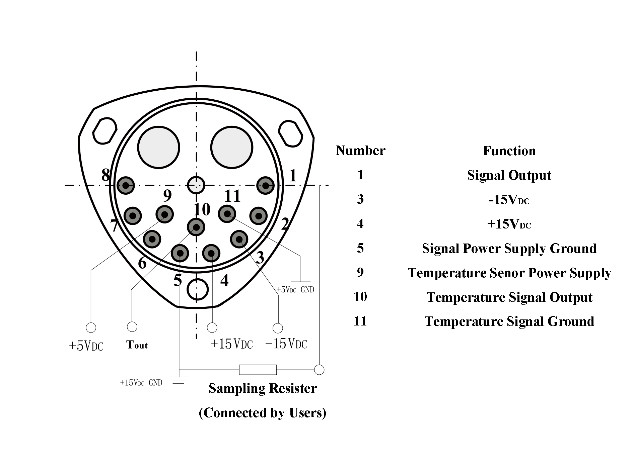

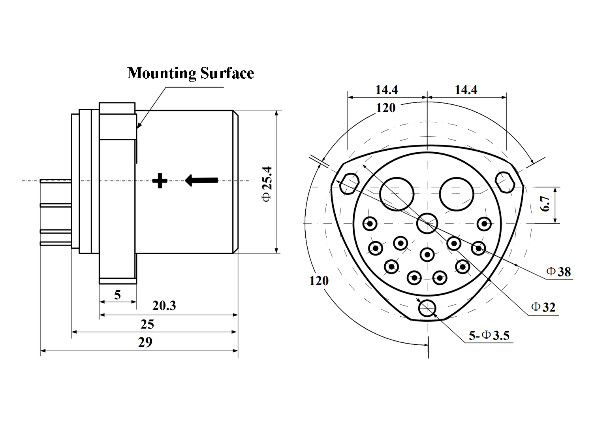

KSQA07 Configuration Drawings | KSQA07 Pin & Wiring Diagram |
Environment | |
Vibration Peak Sine | 15g@20Hz ~ 2000Hz |
Shock | 100g, half-sine, 8ms ~ 12ms |
Storage Temperature | -55℃ ~ +80℃ |
We provide technical support and service for Accelerometer Sensor products. Our experienced team of experts are available to answer all of your questions and provide troubleshooting assistance.
Packaging and Shipping for Accelerometer Sensor:
