| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSQA07 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Scale Factor: | 1.2 ~ 1.6(mA/g) | Resolution: | <1(μg) |
|---|---|---|---|
| Weight: | ≤75(g) | Six-month Composite Repeatability: | ≤30 (1σ) (10-6) |
| Bias One-month Composite Repeatability: | ≤10(1σ) (μg) | Scale Factor Temperature Sensitivity: | ≤10 (10-6/℃) |
| Operating Temperature: | -45 ~ +80(℃) | Linearity: | ≤10 (μg/g2) |
Advancements in Quartz Flexible Pendulum Accelerometer Technology The Quartz Flexible Pendulum Accelerometer, a force feedback iteration, has emerged as a sophisticated development from the liquid floating pendulum accelerometer. The key distinction is in the detection quality: the quartz flexible accelerometer is not buoyant but is elastically tethered to a flexible beam support. This design choice introduces elastic moments, resulting in enhanced accuracy, robust resistance to disturbances, a wide measurement range, and formidable overload capacity.
Quartz flexible pendulum accelerometers are currently extensively employed for measuring a range of linear accelerations, vibration accelerations, and various parameters such as speed, distance, angular velocity, and angular displacement. Their successful integration spans both military and civilian applications, including satellite microgravity measurement systems, high-precision inertial navigation systems, rock-based drilling, oil drilling, continuous inclinometer systems, and the aerospace sector involving launch vehicles, ballistic missiles, and spacecraft.
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range
● Triangle precision mounting flanges
● Application in the inertial navigation system of the new generation weapon
|
|---|
| Outline | |
 |
|

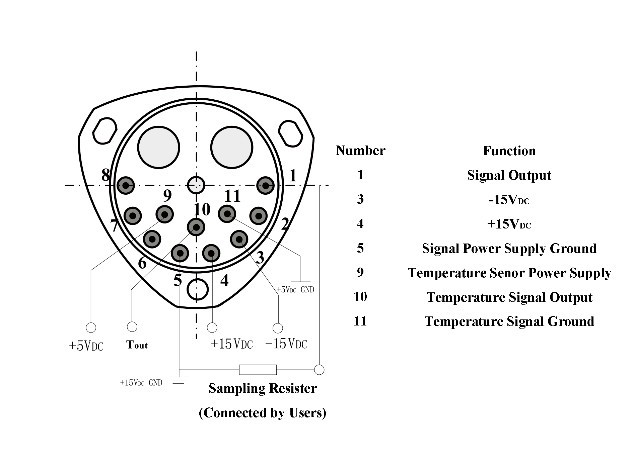

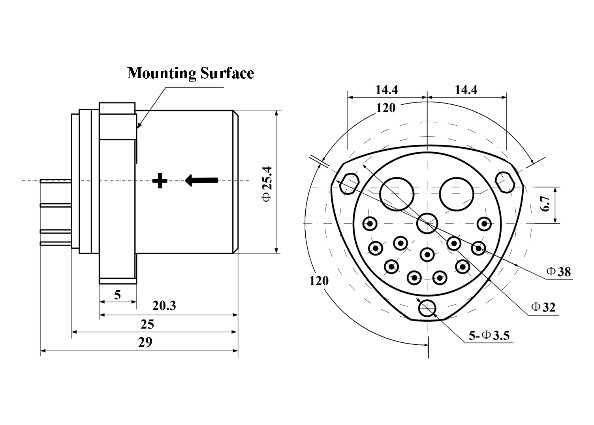

| KSQA07 Configuration Drawings | KSQA07 Pin & Wiring Diagram |
| Environment | |
| Vibration Peak Sine | 15g@20Hz ~ 2000Hz |
| Shock | 100g, half-sine, 8ms ~ 12ms |
| Storage Temperature | -55℃ ~ +80℃ |
We provide technical support and service for Accelerometer Sensors. Our service includes:
If you have any questions about our Accelerometer Sensor services, please contact us.
The Accelerometer Sensor is shipped in a sturdy cardboard box with foam padding to ensure the product arrives in perfect condition.
The package includes the Accelerometer Sensor, a power cable, and a user manual.
The package is labeled with the product name, model number, serial number, and other relevant information.
The package is sealed and shipped via a reliable courier, with tracking information provided.
