| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSQA08 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Bias: | ≤5mg | Input Voltage: | ±12 ~ ±18(V) |
|---|---|---|---|
| Storage Temperature: | -55~ +80(℃) | Scale Factor Temperature Sensitivity: | ≤10 (ppm/℃) |
| Size: | Ø25.4×30(mm) | Resolution: | ≤1 (μg) |
| Bias One-month Composite Repeatability: | ≤10(1σ) (μg) | Vibration Peak Sine: | 15g@20Hz ~ 2000Hz |
| Threshold: | ≤1 (μg) |
Quartz accelerometers stand out as precision instruments, comprising a quartz flexible support and a sophisticated circuit built upon the principles of inertia. Notably, they boast high output impedance, allowing users to customize the sampling resistor without compromising system stability. Designed for single-axis acceleration measurement, these accelerometers excel in high-temperature environments and showcase anti-vibration capabilities. Users are urged to exercise caution to prevent accidental drops when in use.
Quartz accelerometers see broad usage in applications ranging from automotive and aerospace industries to consumer electronics and navigation systems. Their primary function is the precise measurement of acceleration, tilt, and vibration, providing essential data pivotal for motion sensing and control.
● Analog output
● Excellent index repeatability
● Build-in temperature sensor available according to needs
● Wide load resistance range
● Triangle precision mounting flanges
● Application in satellite control unit, microgravity measurement device and inertial navigation system in the manned reentry capsule
|
|---|
 |
|

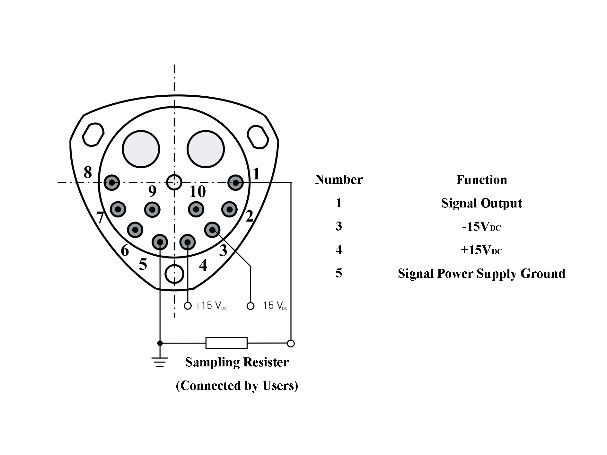

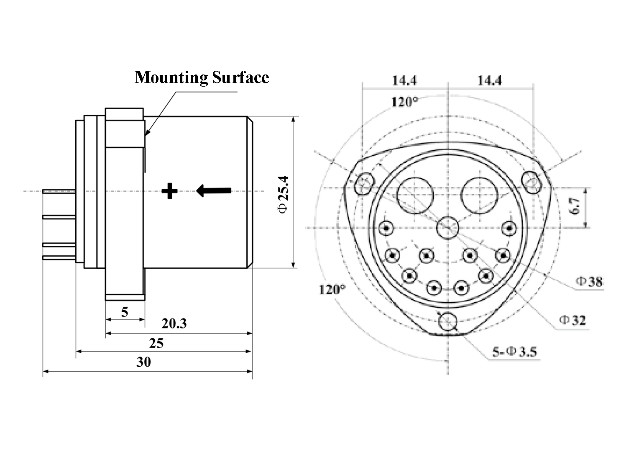

| KSQA08 Configuration Drawings | KSQA08 Pin & Wiring Diagram |
| Environment | |
| Vibration Peak Sine | 15g@20Hz ~ 2000Hz |
| Shock | 100g, half-sine, 8ms ~ 12ms |
| Storage Temperature | -55℃ ~ +80℃ |
The Kacise KSQA08 Accelerometer Sensor is a high-performance acceleration measurement unit, capable of accurately detecting motion velocity and linear acceleration. This advanced sensor is widely used in many industries, such as industrial automation, vehicle design, aerospace engineering, seismic data acquisition, and medical and health monitoring. Its superior features include a low threshold of <1(μg) and a resolution of <1(μg); a vibration peak sine of 15g@20Hz ~ 2000Hz; a weight of ≤70(g); and a storage temperature of -55~ +80(℃). The Kacise KSQA08 accelerometer sensor is certified with a certificate of explosion-proof and CE, with a minimum order quantity of 1pcs for each unit. It is packed in individual box and all boxes are packed in standard packages or customers requests available, and has a delivery time of 5-8 working days. Payment can be done via T/T, Western Union, MoneyGram, with a supply ability of 1000 pieces per week.
Our Accelerometer Sensor is backed by an experienced and knowledgeable team of customer service and technical support personnel who are always on hand to answer any questions you may have. Our customer service representatives are available round the clock to answer your queries and provide you with the best possible support.
We also offer a wide range of technical support services, including troubleshooting, installation, and maintenance of the Accelerometer Sensor. Our technical support team is highly trained and can provide assistance in a wide variety of topics related to the Accelerometer Sensor, such as installation, troubleshooting, and maintenance.
We are committed to providing excellent customer service and technical support. If you ever have any questions or concerns about the Accelerometer Sensor, please don't hesitate to contact us.
The Accelerometer Sensor is packaged in a strong, waterproof cardboard box with a secure, resealable closure.
The box contains padding to ensure the product is fully protected during transit.
The Accelerometer Sensor is shipped via air freight with a tracking number and insurance for added security.
