Name: Quartz accelerometers for satellite control units with Bias ≤5mg and Range =±20g
Brand: Kacise
SKU: KSQA08
Rating: 4.7 (175 reviews)

Home Products Accelerometer Sensor

Quartz accelerometers for satellite control units with Bias ≤5mg and Range =±20g

Product Details:

Place of Origin:	China (Mainland)
Brand Name:	Kacise
Certification:	certificate of explosion-proof, CE
Model Number:	KSQA08

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time:	5-8 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000 Pieces per Week

Contact Now

Detailed Product Description

Linearity:	≤10 (μg/g2)	Scale Factor Temperature Sensitivity:	≤10 (ppm/℃)
Threshold:	<1(μg)	Size:	Ø25.4×30(mm)
Bias:	≤5mg	Scale Factor:	1.2 ~ 1.6(mA/g)
Scale Factor One-month Composite Repeatability:	≤10 (1σ) (ppm)	Range:	±20g

Product Description

Precision is the hallmark of quartz accelerometers, featuring a composition of quartz flexible support and an advanced circuit hinged on inertia principles. With a high output impedance, users enjoy the flexibility of choosing a sampling resistor that suits their specific requirements without impacting system stability. Operating on a single axis to measure acceleration, these accelerometers exhibit remarkable performance in high-temperature conditions and offer resistance to vibrations. Careful handling is advised to prevent inadvertent drops.

The widespread utilization of quartz accelerometers spans various domains, from automotive and aerospace to consumer electronics and navigation systems. Their indispensable function involves the meticulous measurement of acceleration, tilt, and vibration, offering crucial data for effective motion sensing and control.

Product Feature

● Analog output

● Excellent index repeatability

● Build-in temperature sensor available according to needs

● Wide load resistance range

● Triangle precision mounting flanges

● Application in satellite control unit, microgravity measurement device and inertial navigation system in the manned reentry capsule

Technical Parameters

Performance	KSQA08A	KSQA08B
Input Range (g)	±20	±20
Bias (mg)	≤5	≤5
Temperature Sensitivity (μg/℃)	≤10	≤30
One-month Composite Repeatability (1σ) (μg)	≤10	≤30
Six-month Composite Repeatability (1σ) (μg)	≤30	-
Scale Factor (mA/g)	1.2 ~ 1.6	1.2 ~ 1.6
Temperature Sensitivity (10^-6/℃)	≤10	≤50
One-month Composite Repeatability (1σ) (10^-6)	≤10	≤40
Six-month Composite Repeatability (1σ) (10^-6)	≤50	-
Linearity (μg/g²)	≤10	≤40
Threshold (μg)	Less than 1	Less than 5
Resolution (μg)	Less than 1	Less than 5
Input Voltage (V)	±12 ~ ±18	±12 ~ ±18
Operating Temperature (℃)	-45 ~ +80	-45 ~ +80
Size (mm)	Ø25.4×30	Ø25.4×30
Weight (g)	≤70	≤70

Outline

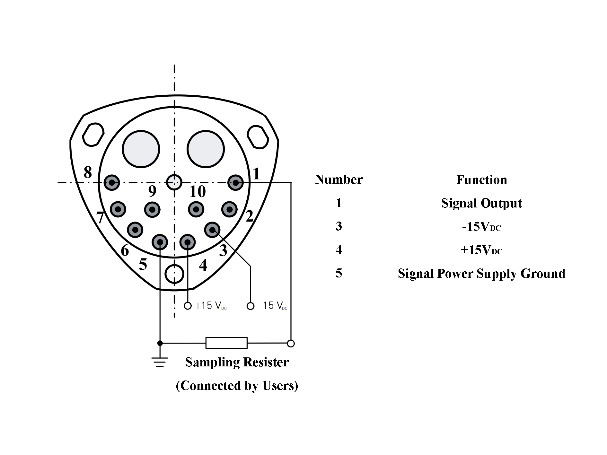

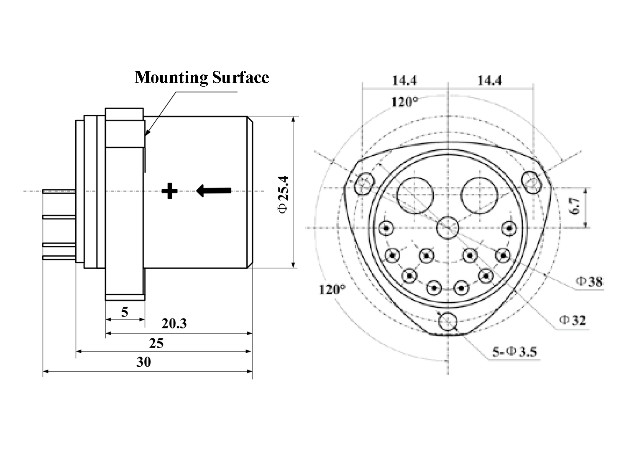

KSQA08 Configuration Drawings	KSQA08 Pin & Wiring Diagram

Environment
Vibration Peak Sine	15g@20Hz ~ 2000Hz
Shock	100g, half-sine, 8ms ~ 12ms
Storage Temperature	-55℃ ~ +80℃

Support and Services

Accelerometer Sensor Technical Support and Service

We offer a range of technical support and service options for our Accelerometer Sensor products, including:

Online Support
Telephone Support
Email Support
Live Chat Support
On-site Support
Warranty and Repair Services

Packing and Shipping

Accelerometer Sensor Packaging and Shipping

Accelerometer sensors are prone to damage during shipment, so it is important to package and ship them correctly. Here are some tips to ensure proper packaging and shipping:

Use a sturdy box that is large enough to contain the sensor and any other materials associated with it.
Fill the box with enough cushioning material to protect the sensor from impacts during transit.
Make sure the box is sealed properly and labeled with the address and contact information of the recipient.
If available, use a tracking number to monitor the package's progress throughout its journey.
