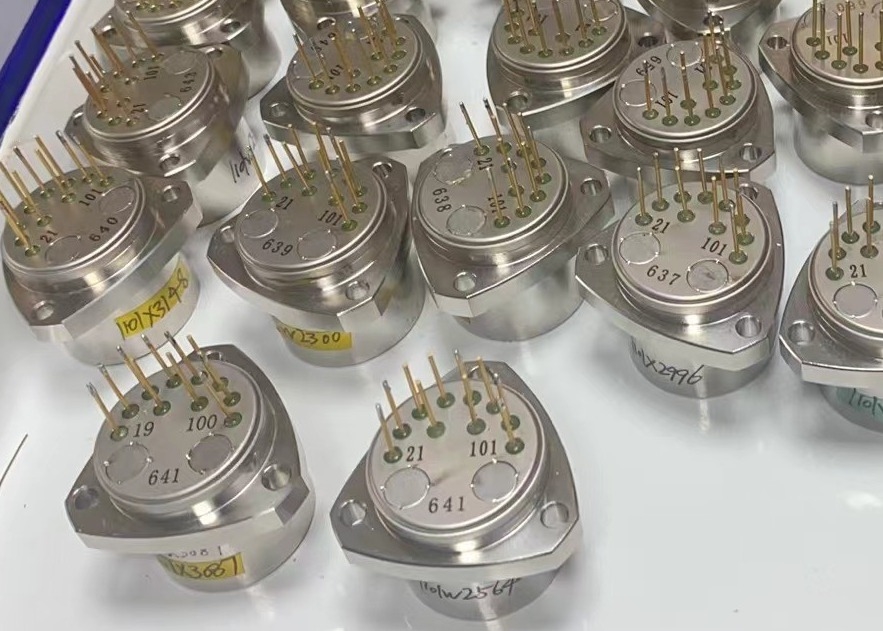

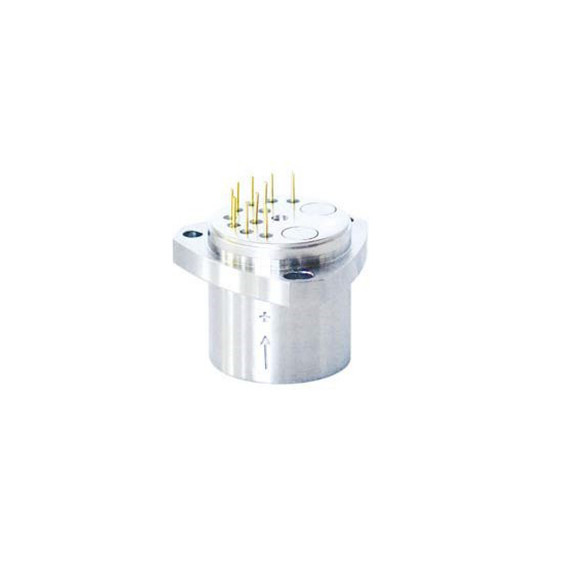

Product Description:
Accelerometers operate in a fairly straightforward manner. They gauge acceleration in units of g and can be employed on one, two, or three axes. Presently, the 3-axis accelerometer is the most prevalent, comprising three accelerometers that measure acceleration along distinct directions in the X, Y, and Z planes.
The Accelerometer Sensor is a precision gravity force monitor and vibration detection system, designed to measure linear acceleration forces in a range of ±80g. With a resolution of less than 5μg and a weight of 80g, this linear acceleration meter is ideal for applications where high accuracy is required. The storage temperature range is -55°C to +80°C and it can work with a wide input voltage range of ±12V to ±18V. This reliable sensor is ideal for monitoring dynamic acceleration forces in many different applications, such as automotive, aerospace, marine, and industrial automation.
Product Feature:
● Analog output
● Excellent index repeatability
● Build-in temperature sensor available according to needs
● Wide load resistance range
● Triangle precision mounting flanges
● Application in satellite control unit, microgravity measurement device and inertial navigation system in the manned reentry capsule
Technical Parameters:
| Performance |
KSQA09A |
KSQA09B |
| Input Range (g) |
±80 |
±40 |
| Bias (mg) |
≤5 |
≤5 |
| Temperature Sensitivity (μg/℃) |
≤30 |
≤50 |
| One-month Composite Repeatability (1σ) (μg) |
≤30 |
≤60 |
| Scale Factor (mA/g) |
0.9 ~ 1.3 |
0.9 ~ 1.3 |
| Temperature Sensitivity (10-6/℃) |
≤50 |
≤80 |
| One-month Composite Repeatability (1σ) (10-6) |
≤40 |
≤60 |
| Linearity (μg/g2) |
≤40 |
≤40 |
| Threshold (μg) |
Less than 5 |
Less than 5 |
| Resolution (μg) |
Less than 5 |
Less than 5 |
| Input Voltage (V) |
±12 ~ ±18 |
±12 ~ ±18 |
| Operating Temperature (℃) |
-45 ~ +80 |
-45 ~ +80 |
| Size (mm) |
Ø25.4×30 |
Ø25.4×30 |
| Weight (g) |
≤80 |
≤80 |
|
Outline:
| Outline |
 |
|

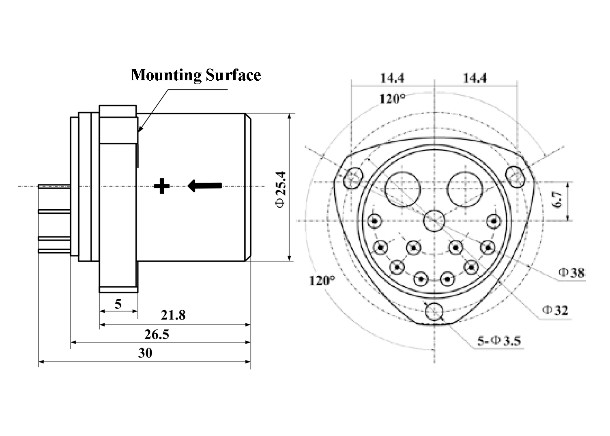

| KSQA09 Configuration Drawings |

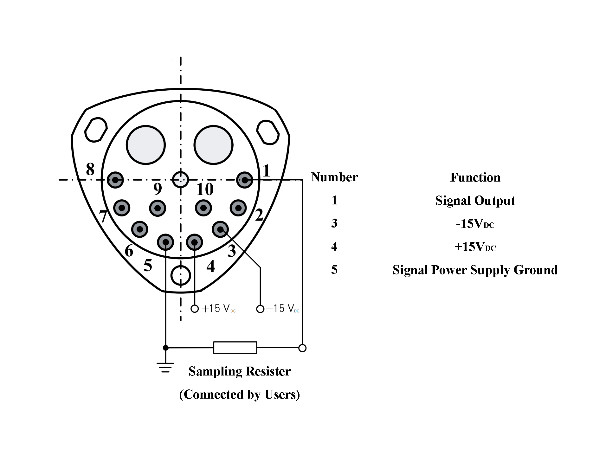

KSQA09 Pin & Wiring Diagram |
| |
|
| Environment |
| Vibration Peak Sine |
20g@20Hz ~ 2000Hz |
| Shock |
100g, half-sine, 8ms ~ 12ms |
| Storage Temperature |
-55℃ ~ +80℃ |
