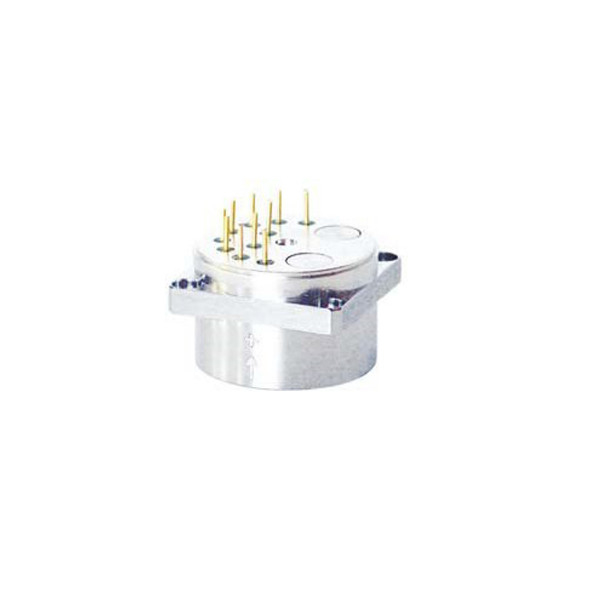

High Temperature Quartz Accelerometers Used In UAV And Aircraft

High Temperature Quartz Accelerometers Used In UAV And Aircraft

UAV Quartz Accelerometer

Aircraft Accelerometer Sensor

High Temperature Quartz Accelerometers

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

certificate of explosion-proof, CE

Model Number:

KSQA11

Contact Us
Request A Quote
Product Details
Bias:
≤8mg
Scale Factor One-month Composite Repeatability:
≤80 (1σ) (ppm)
Scale Factor Temperature Sensitivity:
≤80 (ppm/℃)
Shock:
100g, Half-sine, 8ms ~ 12ms
Bias One-month Composite Repeatability:
≤50(1σ) (μg)
Operating Temperature:
-45 ~ +100(℃)
Bias Temperature Sensitivity:
≤40(μg/℃)
Size:
Ø25×25(mm)
Highlight:

UAV Quartz Accelerometer

,

Aircraft Accelerometer Sensor

,

High Temperature Quartz Accelerometers

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 working days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
1000 Pieces per Week
Product Description

Product Description:

Engineered for demanding oil and gas environments, the KSQA11 Quartz Accelerometer boasts advanced anti-shock features and high-temperature durability. Its reliability extends its application scope beyond aviation and aerospace inertial tests to encompass static and dynamic acceleration measurements. Primarily utilized in aerospace inertial navigation and guidance systems, as well as for industrial measurement, it plays a crucial role in measurement-while-drilling (MWD) applications within oil and gas fields.

Product Feature:



● Small size and light weight

● Analog output

● Excellent index repeatability

● Shock and vibration resistance

● Wide load resistance range

● Square precision mounting flanges

● Wide temperature range

Performance Characteristics:



Performance KSQA11
Input Range (g) ±30
Bias (mg) ≤8
Temperature Sensitivity (μg/℃) ≤40
One-month Composite Repeatability (1σ) (μg) ≤50
Scale Factor (mA/g) 1.0 ~ 1.6
Temperature Sensitivity (10-6/℃) ≤80
One-month Composite Repeatability (1σ) (10-6) ≤80
Linearity (μg/g2) ≤40
Input Voltage (V) ±12 ~ ±18
Operating Temperature (℃) -45 ~ +100
Size (mm) Ø25×25
Weight (g) ≤50

Outline:



High Temperature Quartz Accelerometers Used In UAV And Aircraft 0 High Temperature Quartz Accelerometers Used In UAV And Aircraft 1

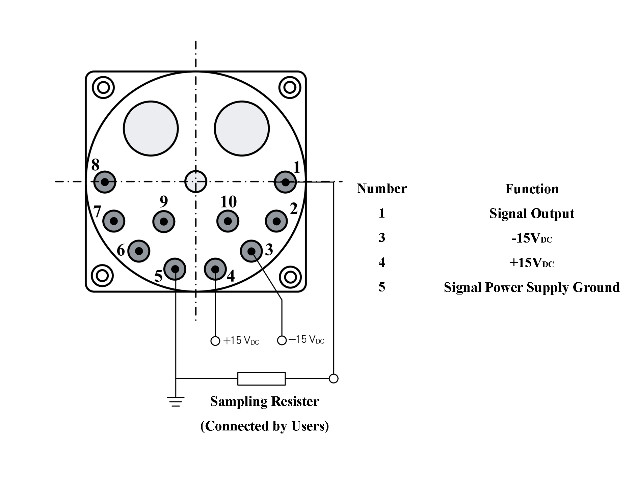

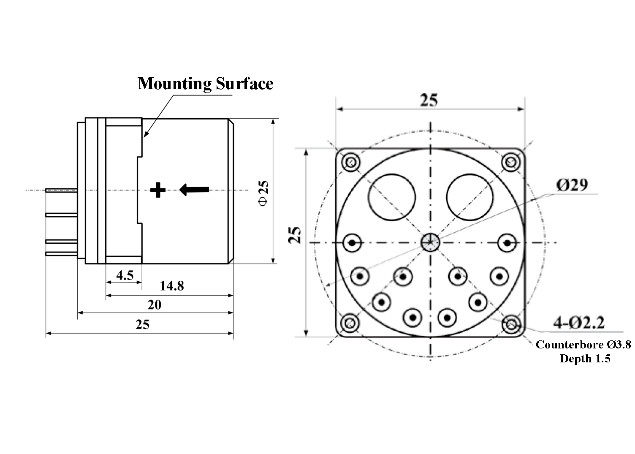

KSQA11 Configuration Drawings KSQA11 Pin & Wiring Diagram

Environment
Vibration Peak Sine 25g@30Hz ~ 500Hz
Shock 500g, half-sine, 1ms ~ 3ms
Storage Temperature -55℃ ~ +80℃





Applications:

Kacise KSQA11 Accelerometer Sensor is a vibration detection system and accelerometer detector specifically designed to measure linear acceleration.

The Kacise KSQA11 Accelerometer Sensor is widely used in many industries such as aerospace, automotive, industrial, military, and medical. In the aerospace industry, it is used to detect vibration in aircraft wings, fuselage, and other components. In the automotive industry, it is used to measure the acceleration of vehicles, helping to reduce the risk of accidents. In the industrial sector, it is used to detect vibration in rotating machinery and to measure the vibration of structures like buildings and bridges. In the military, it is used to detect vibration in weapons and ammunition, aiding in the accuracy of fire. In the medical field, it is used to detect medical conditions, such as heart rate, respiration rate, and muscle tension.
