| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSQA11 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Linearity: | ≤40 (μg/g2) | Vibration Peak Sine: | 20g@20Hz ~ 2000Hz |
|---|---|---|---|
| Storage Temperature: | -55~ +80(℃) | Shock: | 100g, Half-sine, 8ms ~ 12ms |
| Scale Factor One-month Composite Repeatability: | ≤80 (1σ) (ppm) | Scale Factor Temperature Sensitivity: | ≤80 (ppm/℃) |
| Weight: | ≤50(g) | Bias Temperature Sensitivity: | ≤40(μg/℃) |
| High Light: | Shock Resistant Quartz Accelerometer Sensor,Inertial Measurement Quartz Accelerometer Sensor |
||
Tailored for the oil and gas sector, the KSQA11 Quartz Accelerometer is distinguished by its robust anti-shock design and high-temperature resilience. Its versatile performance extends its usage from aviation and aerospace inertial tests to static and dynamic acceleration measurements. Widely adopted in aerospace for inertial navigation and guidance, as well as in industrial measurement settings, it is a key component for measurement-while-drilling (MWD) applications in oil and gas fields.
● Small size and light weight
● Analog output
● Excellent index repeatability
● Shock and vibration resistance
● Wide load resistance range
● Square precision mounting flanges
● Wide temperature range
| Performance | KSQA11 |
| Input Range (g) | ±30 |
| Bias (mg) | ≤8 |
| Temperature Sensitivity (μg/℃) | ≤40 |
| One-month Composite Repeatability (1σ) (μg) | ≤50 |
| Scale Factor (mA/g) | 1.0 ~ 1.6 |
| Temperature Sensitivity (10-6/℃) | ≤80 |
| One-month Composite Repeatability (1σ) (10-6) | ≤80 |
| Linearity (μg/g2) | ≤40 |
| Input Voltage (V) | ±12 ~ ±18 |
| Operating Temperature (℃) | -45 ~ +100 |
| Size (mm) | Ø25×25 |
| Weight (g) | ≤50 |
 | |

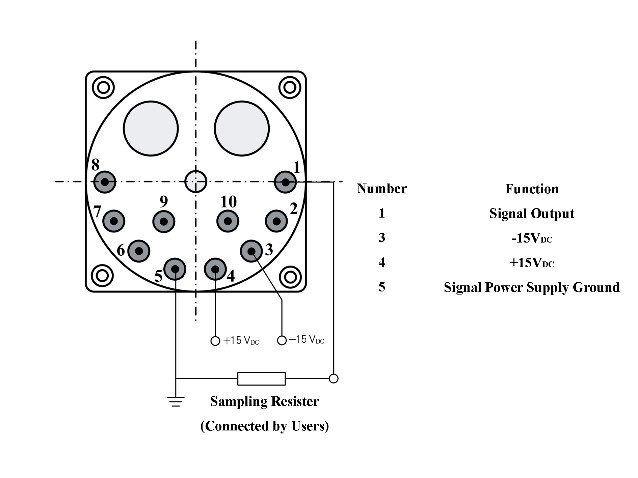

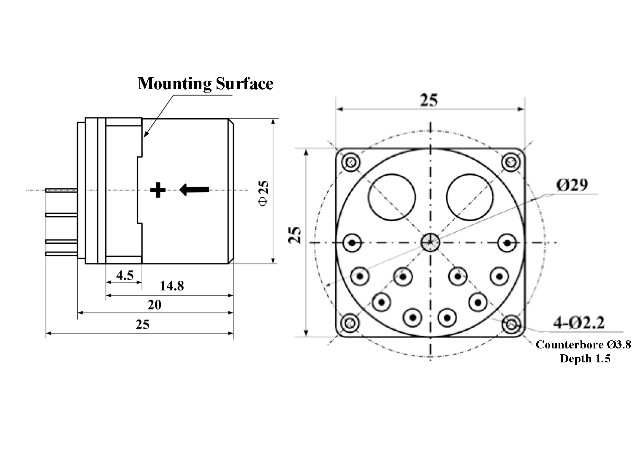

| KSQA11 Configuration Drawings | KSQA11 Pin & Wiring Diagram |
| Environment | |
| Vibration Peak Sine | 25g@30Hz ~ 500Hz |
| Shock | 500g, half-sine, 1ms ~ 3ms |
| Storage Temperature | -55℃ ~ +80℃ |
Kacise KSQA11 Accelerometer Sensor is known for its ability to detect vibration and motion velocity accurately. It is highly reliable and durable, and its design ensures that it will not be affected by environmental factors such as temperature, dust, or moisture. Its compact size makes it easy to install in a variety of spaces, and its low power consumption ensures a long lifespan.
We offer comprehensive technical support and service for our Accelerometer Sensor products. Our knowledgeable and experienced support team is available to answer your questions and assist with troubleshooting.
If you are having difficulty using our Accelerometer Sensor products, our technical assistance team is here to help. We will work to identify the problem and provide solutions to get you up and running quickly.
If your Accelerometer Sensor product is not functioning properly, we offer repair and replacement services. Our team will troubleshoot the issue and provide a solution that meets your needs.
The Accelerometer Sensor is securely packaged for shipping with the following details:
The Accelerometer Sensor is shipped by an insured carrier with tracking number provided to the customer.
