| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSQA11 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Linearity: | ≤40 (μg/g2) | Bias Temperature Sensitivity: | ≤40(μg/℃) |
|---|---|---|---|
| Size: | Ø25×25(mm) | Scale Factor Temperature Sensitivity: | ≤80 (ppm/℃) |
| Bias One-month Composite Repeatability: | ≤50(1σ) (μg) | Weight: | ≤50(g) |
| Input Voltage: | ±12 ~ ±18(V) | Operating Temperature: | -45 ~ +100(℃) |
| Scale Factor: | 1.0 ~ 1.6 (mA/g) |

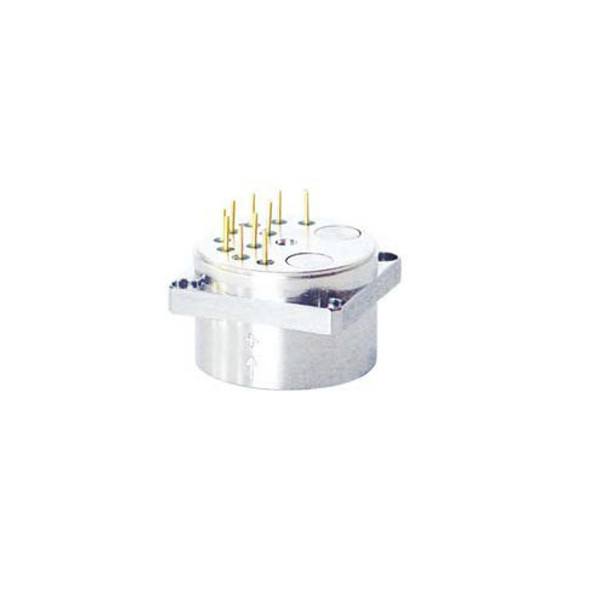

The KSQA11 Quartz Accelerometer is seamlessly integrated into the oil and gas sector, offering superior anti-shock performance and resilience to high temperatures. Its reliable functionality transcends traditional applications in aviation and aerospace inertial tests, extending to encompass both static and dynamic acceleration measurements. Widely embraced in aerospace for inertial navigation and guidance, as well as in industrial measurement scenarios, it is a cornerstone technology for measurement-while-drilling (MWD) operations in oil and gas fields.
● Small size and light weight
● Analog output
● Excellent index repeatability
● Shock and vibration resistance
● Wide load resistance range
● Square precision mounting flanges
● Wide temperature range
| Performance | KSQA11 |
| Input Range (g) | ±30 |
| Bias (mg) | ≤8 |
| Temperature Sensitivity (μg/℃) | ≤40 |
| One-month Composite Repeatability (1σ) (μg) | ≤50 |
| Scale Factor (mA/g) | 1.0 ~ 1.6 |
| Temperature Sensitivity (10-6/℃) | ≤80 |
| One-month Composite Repeatability (1σ) (10-6) | ≤80 |
| Linearity (μg/g2) | ≤40 |
| Input Voltage (V) | ±12 ~ ±18 |
| Operating Temperature (℃) | -45 ~ +100 |
| Size (mm) | Ø25×25 |
| Weight (g) | ≤50 |
 |
|

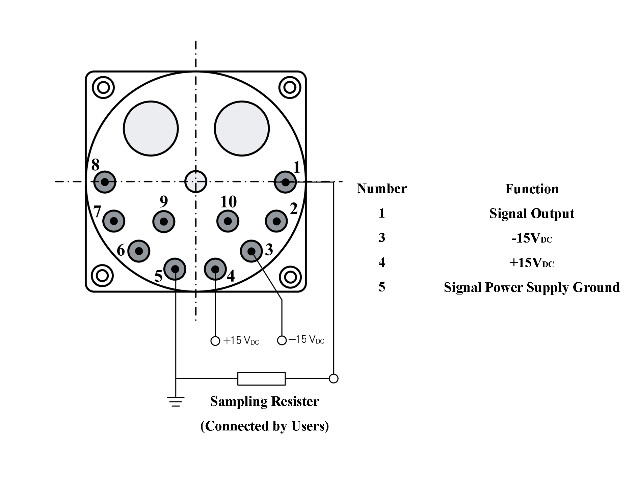

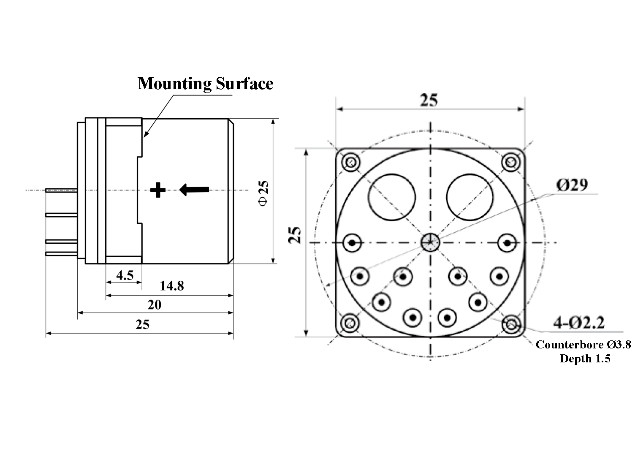

| KSQA11 Configuration Drawings | KSQA11 Pin & Wiring Diagram |
| Environment | |
| Vibration Peak Sine | 25g@30Hz ~ 500Hz |
| Shock | 500g, half-sine, 1ms ~ 3ms |
| Storage Temperature | -55℃ ~ +80℃ |
The Kacise KSQA11 Accelerometer Sensor is a revolutionary gravity force monitor, linear acceleration meter and accelerometer detector. It is designed to detect and measure the acceleration of motion, vibration and shock with a size of Ø25×25(mm). It is certified with a certificate of explosion-proof and CE, and each unit has individual box and all boxes are packed in standard packages or customers requests available. The minimum order quantity is 1pcs. And the delivery time is 5-8 working days.
The Kacise KSQA11 Accelerometer Sensor has a shock rating of 100g, Half-sine, 8ms ~ 12ms and a weight of ≤50(g). It features a scale factor of 1.0 ~ 1.6(mA/g) and a bias of ≤8mg. It is suitable for various applications such as automotive, aerospace, industrial, energy, marine, medical, robotics, and consumer electronics.
The Kacise KSQA11 Accelerometer Sensor is reliable and durable, and it is able to provide accurate measurements in harsh conditions. With its advanced technology, it is able to detect subtle changes in gravity force, linear acceleration and accelerometer. It can be used in various applications including automotive, aerospace, industrial, energy, marine, medical, robotics, and consumer electronics.
The Kacise KSQA11 Accelerometer Sensor is available at a competitive price, and the payment terms are T/T, Western Union, MoneyGram. It has a supply ability of 1000 Pieces per Week. It is an ideal choice for those who need an efficient and reliable gravity force monitor, linear acceleration meter and accelerometer detector.
Accelerometer Sensor Technical Support and Service
Packaging and Shipping for Accelerometer Sensor
The Accelerometer Sensor is packaged in a single box or multiple boxes, depending on order size. The box is made of corrugated cardboard and includes all necessary packing materials to ensure the product arrives safely. The box should be marked with the product name, weight, and address of the recipient.
The product is shipped with a reputable courier or postal service, with tracking available. All orders are tracked and insured against loss or damage. The customer is notified when the product is shipped and has been delivered.
