| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSQA12 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Linearity: | ≤50 (μg/g2) | Vibration Peak Sine: | 15g@20Hz ~ 2000Hz |
|---|---|---|---|
| Storage Temperature: | -55~ +80(℃) | Bias: | ≤5mg |
| Range: | ±80g | Bias One-month Composite Repeatability: | ≤40(1σ) (μg) |
| Scale Factor: | 0.6 ~ 1.3(mA/g) | Scale Factor Temperature Sensitivity: | ≤60 (ppm/℃) |
| Resolution: | ≤5(μg) | Threshold: | ≤5(μg) |
| High Light: | Motion Detection Flexible Accelerometer,Threshold Accelerometer Sensor,High Resolution Accelerometer Sensor |
||

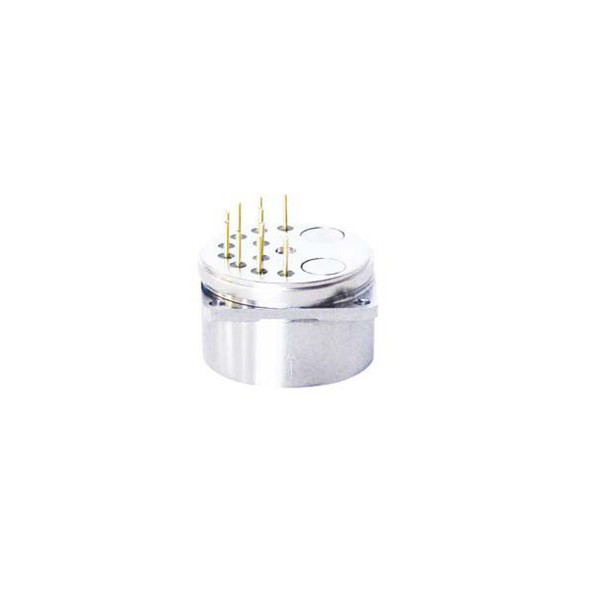

The quartz accelerometer, distinguished by its construction from high-quality quartz material, surpasses metal counterparts in material performance, displaying superior fatigue resistance. This results in heightened accuracy, strong anti-disturbance capabilities, an expansive measuring range, and robust overload resistance. The widespread applications of quartz accelerometers encompass the measurement of various parameters such as linear acceleration, vibration acceleration, speed, distance, angular velocity, and angular displacement. Notable application areas include the oil logging field, inertial navigation system field, and aerospace field.
● Small size and light weight
● Analog output
● Wide load resistance range
● Square precision mounting flanges
● Application in unmanned aircraft and petroleum pipeline
| Performance | KSQA12A | KSQA12B |
| Input Range (g) | ±80 | ±30 |
| Bias (mg) | ≤5 | ≤5 |
| Temperature Sensitivity (μg/℃) | ≤40 | ≤50 |
| One-month Composite Repeatability (1σ) (μg) | ≤40 | ≤80 |
| Scale Factor (mA/g) | 0.6 ~ 1.3 | 0.9 ~ 1.3 |
| Temperature Sensitivity (10-6/℃) | ≤60 | ≤60 |
| One-month Composite Repeatability (1σ) (10-6) | ≤40 | ≤80 |
| Linearity (μg/g2) | ≤50 | ≤50 |
| Threshold (μg) | Less than 5 | Less than 5 |
| Resolution (μg) | Less than 5 | Less than 5 |
| Input Voltage (V) | ±12 ~ ±18 | ±12 ~ ±18 |
| Operating Temperature (℃) | -45 ~ +80 | -45 ~ +80 |
| Size (mm) | Ø18.2×23.6 | Ø18.2×23.6 |
| Weight (g) | ≤35 | ≤35 |
 |
|

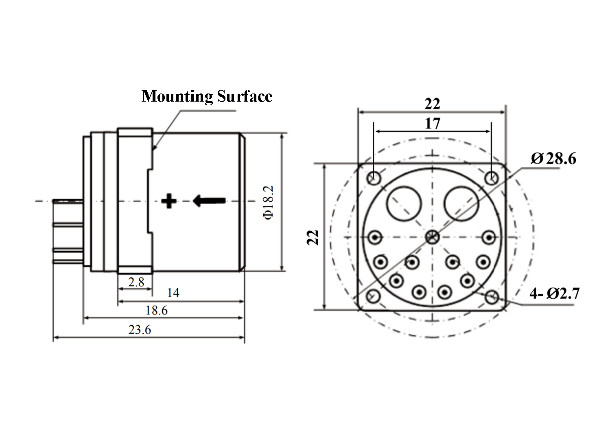

| KSQA12 Configuration Drawings | KSQA12 Pin & Wiring Diagram |
| Environment | |
| Vibration Peak Sine | 15g@20Hz ~ 2000Hz |
| Shock | 100g, half-sine, 8ms ~ 12ms |
| Storage Temperature | -55℃ ~ +80℃ |
The Kacise KSQA12 Accelerometer Sensor is an advanced gravity force monitor with explosion-proof certification, providing unparalleled accuracy and precision. This device is designed to detect and measure vibration, providing peak sine and bias one-month composite repeatability up to 15g@20Hz ~ 2000Hz and ≤40 (1σ) (μg), respectively. Its scale factor ranges from 0.6 ~ 1.3(mA/g) and its linearity measures up to ≤50 (μg/g2). With a minimum order quantity of 1pcs and shipment within 5-8 working days, the Kacise KSQA12 Accelerometer Sensor is easy to purchase. In addition, its low weight of ≤35(g) makes it easy to carry and transport.
The Kacise KSQA12 Accelerometer Sensor is an ideal choice for a variety of applications. It is suitable for detecting vibration in construction sites, factories, and laboratories, allowing users to ensure safety and optimize performance. It can also be used to measure acceleration, gravity, and tilt in vehicles, aircraft, and marine vessels. It is even capable of monitoring seismic activity, motion control, and structural health analysis. The Kacise KSQA12 Accelerometer Sensor is capable of providing reliable and accurate measurements in any environment.
The Kacise KSQA12 Accelerometer Sensor is an advanced and reliable gravity force monitor, providing unparalleled accuracy and precision. With its explosion-proof certification, low weight, and dependable measurements, it is the perfect choice for a variety of applications.
At XYZ, we strive to provide excellent technical support and service for our Accelerometer Sensor. Our team of experienced technicians can help you with any issue you may have. Here are some of the features we provide:
If you have any questions or need assistance, please don’t hesitate to contact us. We look forward to helping you get the most out of your Accelerometer Sensor.
Packaging and Shipping the Accelerometer Sensor:
