| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSQA13 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Shock: | 500g, Half-sine, 8ms ~ 12ms | Size: | Ø25×25(mm) |
|---|---|---|---|
| Weight: | ≤60(g) | Input Voltage: | ±12 ~ ±18(V) |
| Vibration Peak Sine: | 15g@20Hz ~ 2000Hz | Bias One-month Composite Repeatability: | ≤100(1σ) (μg) |
| Bias Temperature Sensitivity: | ≤100(μg/℃) | Scale Factor: | 2.3 ~ 3.5(mA/g) |
| Operating Temperature: | -45 ~ +100(℃) | ||
| High Light: | High Shock Quartz Flexible Accelerometer,Oil Drilling Platform Quartz Accelerometer,High Temperature Resistant Quartz Accelerometer |
||
Quartz flexible accelerometers are typically uniaxial torque feedback sensors that utilize mass detection to identify external acceleration signals. These signals are then demodulated and amplified through a servo circuit. The resultant output current signal is directly proportional to the detected acceleration. Widely applied in aerospace high-precision navigation systems, as well as in inclinometers for oil drilling and strapdown inertial navigation systems in geological exploration. The key components include a differential capacitance sensor, a detection mass pendulum assembly, an electromagnetic torque device, and an electronic amplifier. Upon acceleration along the sensitive axis, the detection mass undergoes a positional shift, detected by a position detector. The signal is then input to the amplifier, which in turn drives the force generator to reset the detection mass to its original position.
● Small size and light weight
● Analog output
● Shock, vibration and high temperature resistance
● Wide load resistance range
● Square precision mounting flanges
| Performance | KSQA13 |
| Input Range (g) | ±10 |
| Bias (mg) | ≤10 |
| Temperature Sensitivity (μg/℃) | ≤100 |
| Three-hour Stability (1σ) (10-6) | ≤100 |
| Scale Factor (mA/g) | 2.3 ~ 3.5 |
| Temperature Sensitivity (10-6/℃) | ≤100 |
| Three-hour Stability (1σ) (10-6) | ≤100 |
| Input Voltage (V) | ±12 ~ ±18 |
| Operating Temperature (℃) | -45 ~ +100 |
| Size (mm) | Ø25×25 |
| Weight (g) | ≤60 |
| Outline | |
 |
|

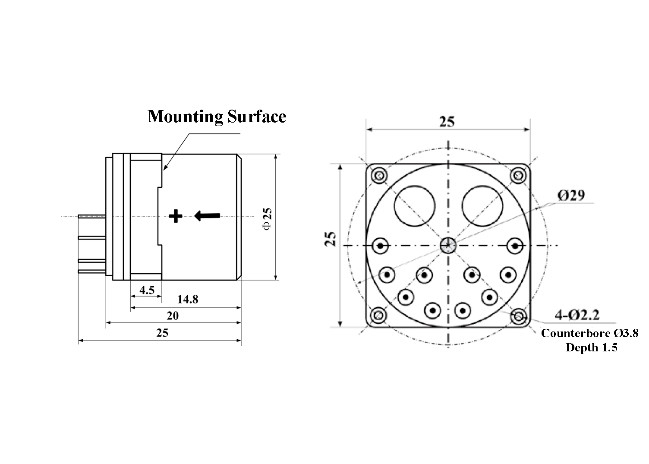

| JKSQA13 Configuration Drawings | KSQA13 Pin & Wiring Diagram |
| Environment | |
| Vibration Peak Sine | 15g@20Hz ~ 2000Hz |
| Shock | 500g, half-sine, 1ms ~ 3ms |
| Storage Temperature | -55℃ ~ +120℃ |
The KSQA13 linear acceleration meter is perfect for any environment as it has a wide range of applications. It can be used for industrial automation, machine vibration detection, medical diagnosis, vehicle detection, sports analysis, and many other purposes. It is an ideal choice for monitoring vibration in high temperature environments. The KSQA13 is also suitable for use in automotive, aerospace, and military industries. With its high accuracy and reliable performance, it is the perfect solution for detecting vibrations in any environment.
Kacise provides fast delivery and excellent customer service. The packaging details include individual box and all boxes are packed in standard packages or customers requests available. The payment terms are T/T, Western Union, MoneyGram and the supply ability is 1000 pieces per week. If you are looking for a reliable and accurate linear acceleration meter, Kacise's KSQA13 is the perfect choice.
At Kacise company, we are committed to providing our customers with the best quality Accelerometer Sensors and the highest level of technical support and service.
Our team of experienced engineers and technicians is available to answer any of your questions and provide assistance with installation, maintenance, and troubleshooting.
We also provide a comprehensive warranty and a range of after-sales services such as repair, replacement, and calibration.
If you have any questions or need assistance, please contact our customer service team.
The accelerometer sensor is safely packed in a carton.
The box also contains the following components:
