Product Description:

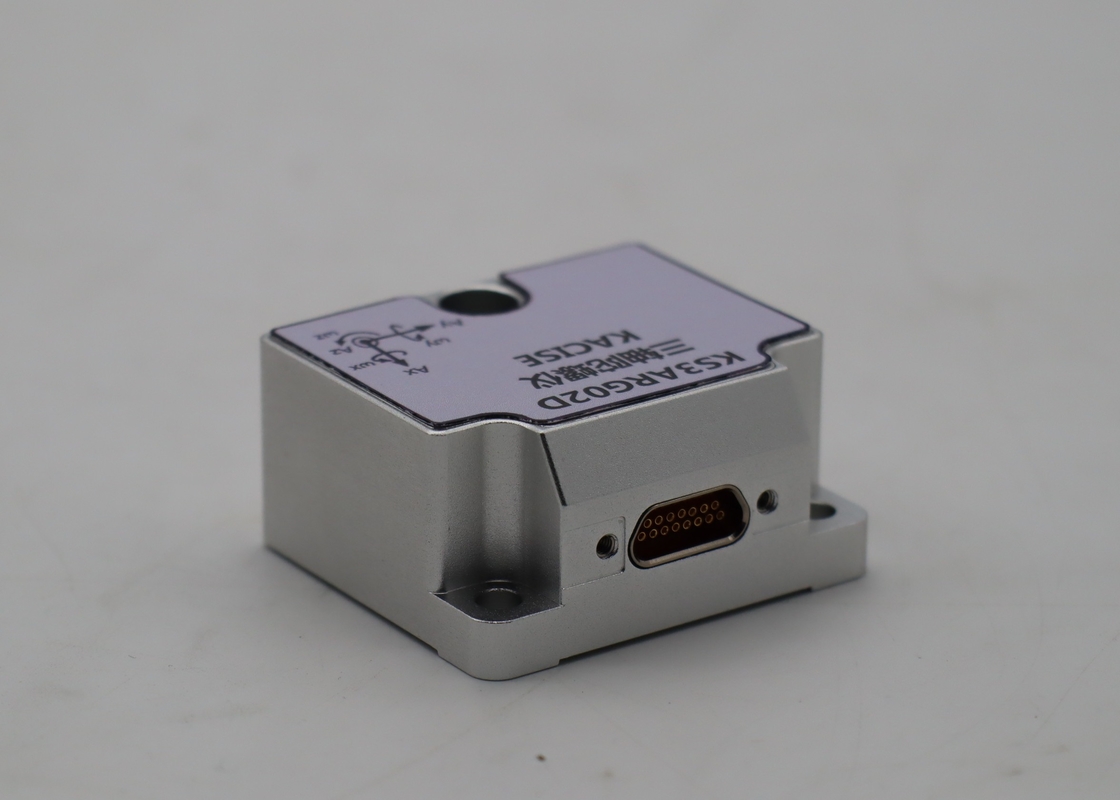

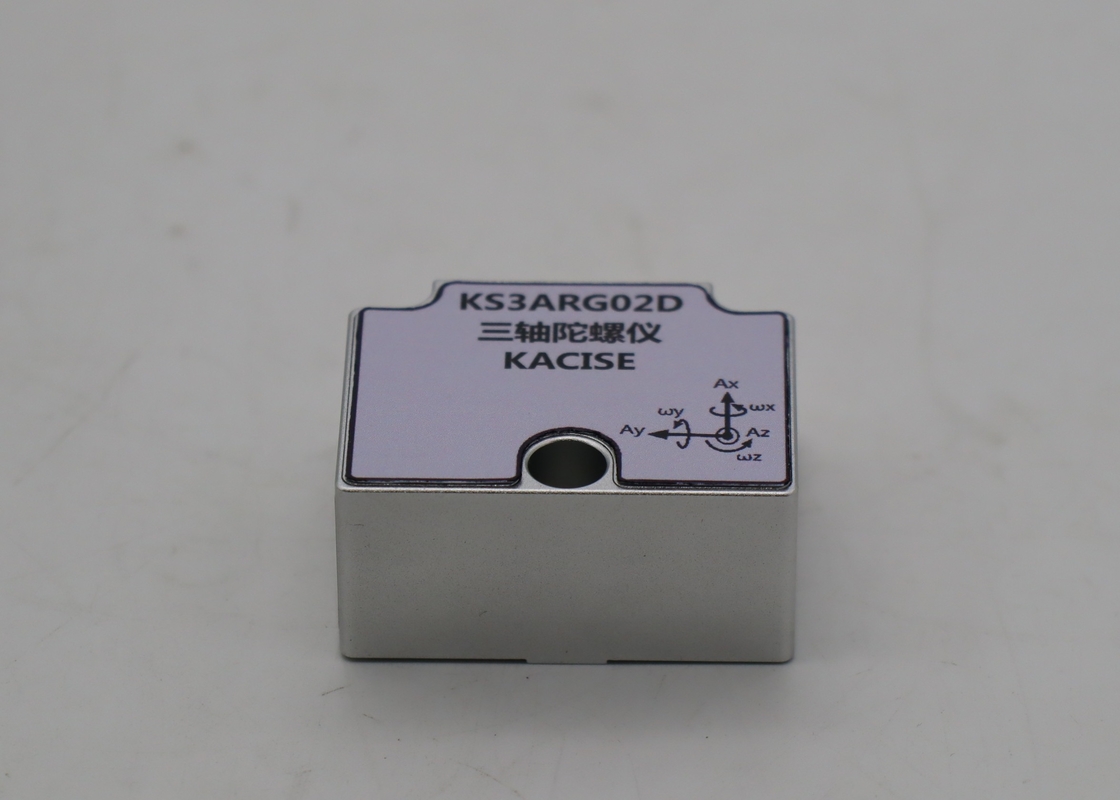

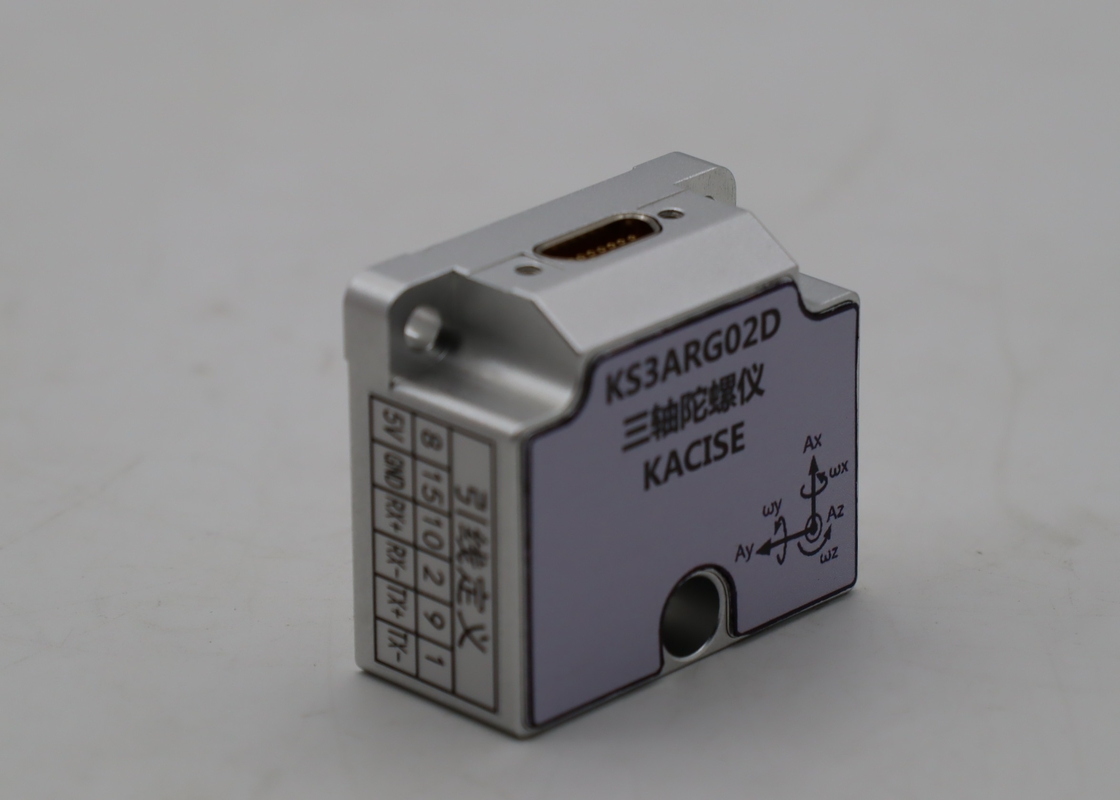

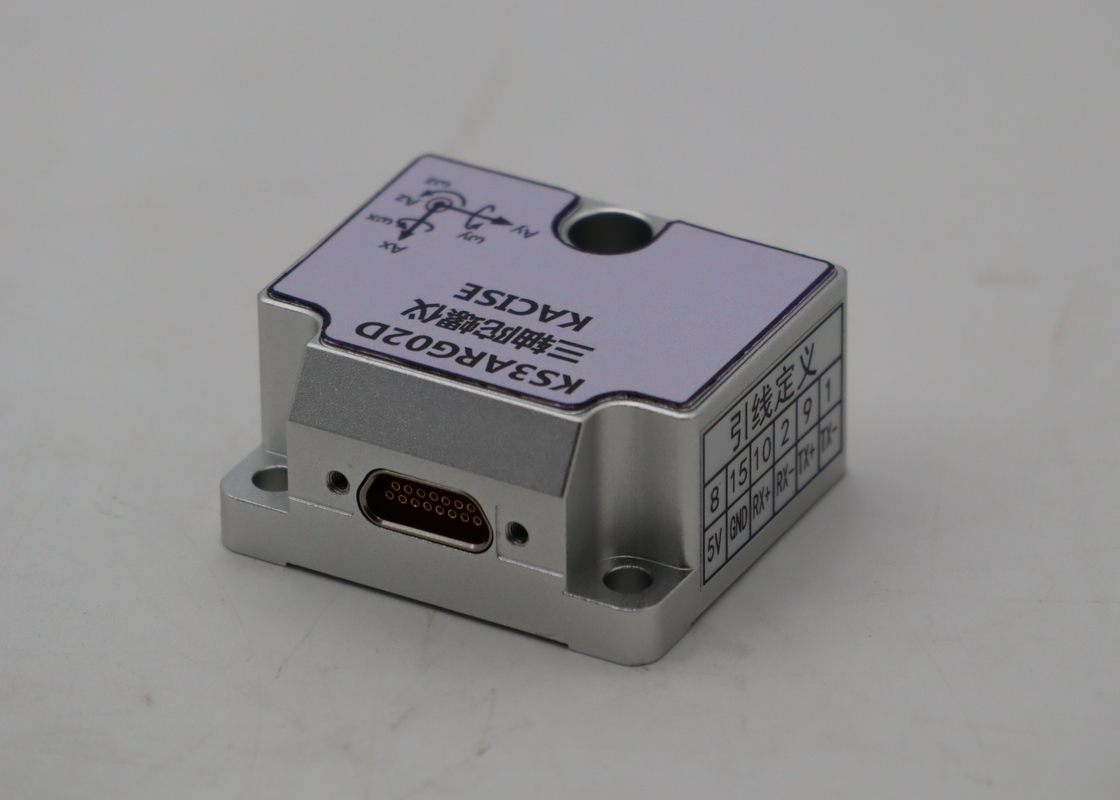

The KS3ARG-02D series is a solid-state angular rate sensor (gyro) meticulously designed for measuring angular rates. Employing micromechanoelectronic system (MEMS) technology chips, it utilizes a bipolar metal oxide semiconductor (BIMOS) production process and features a spherical grid arrangement of current carrier welding technology. Boasting high reliability and package ruggedness, along with a Self-Test function for in-machine detection (BIT), this product also incorporates zero bias calibration, temperature drift compensation, a wide measurement range, wide bandwidth, non-linear correction, and other advanced functionalities. Its characteristics include a wide operating temperature range, small size, light weight, and high resistance to impact acceleration.
Serving as a crucial inertial measurement component, this product finds widespread utility in diverse technical domains, including intelligent automobiles, geological exploration, robotics, missile guidance and control, aircraft stability control, strapdown inertial navigation, antenna stabilization, cameras, and various other applications.
Features:
- Small size
- Light weight
- Wide bandwidth
- Wide measurement range
- Temperature drift compensation
- Bias calibration
- High impact acceleration resistance
Technical Parameters:
| Performance parameter |
KS3ARG-02D |
| gyro |
range
(deg/s)
|
±500(triaxial) |
| Zero-bias(deg/s) |
≤±0.1(In 500°/s) |
| Zero-bias stability(deg/h) |
≤0.5allan deviation |
| Zero-bias repeatability(deg/s) |
≤0.05 |
| nonlinearity(%FR) |
≤0.05 |
| Random walk(°/√h) |
0.15 |
| Mean time between failures(Kh MTBF) |
10 |
| Interface characteristic |
power(V) |
DC5 |
| power dissipation(W @5V DC) |
≤1 |
| electrical interface |
RS422 |
| data updating rate(can set) |
2000(Hz@460800) |
| operating environment |
operating temperature(°C) |
-40~+80 |
| storage temperature(°C) |
-55~+85 |
| Vibration(g @ 20~2000 Hz) |
6.06 |
| Shock(g , 0.1 ms, 1/2 Sine) |
5000 |
| physical property |
Size(mm) |
45×39×20 |
| Weight(g) |
≤60 |
Dimension figure
