Product Description:

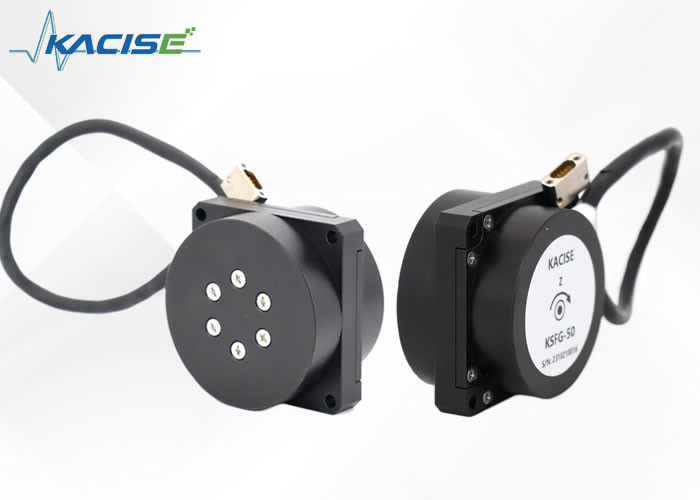

Overview of Inertial Angle Rate Sensor

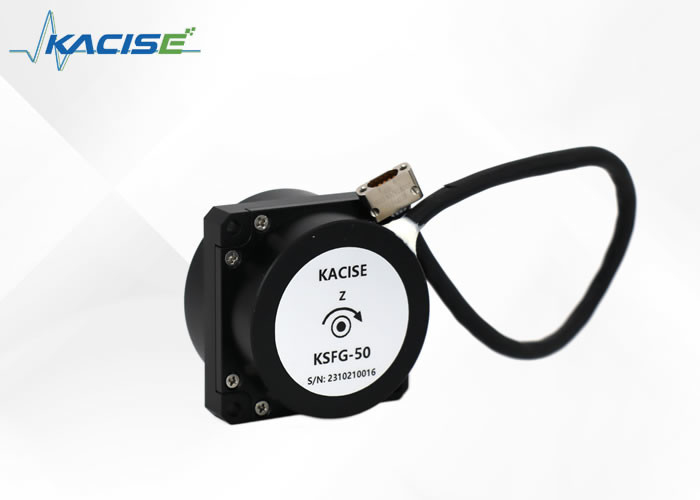

The device in question is an inertial angle rate sensor harnessing the optical Sagnac effect to gauge rotational angular velocity on its sensitively tuned axis. It has been meticulously designed to register the rate at which an object rotates, offering precise measurements that are crucial in various technological applications. The sensor showcases a state-of-the-art approach to detecting subtle changes in orientation and speed.
Advanced Detection Mechanism
To capture the angular velocity with accuracy, a sophisticated digital closed-loop detection circuit is employed. This circuit functions by discerning the optical path disparity induced by the rotation of the object. The clockwise propagation of the light within the system is interrupted by any external rotation, leading to a change in the optical path difference. This variation is then transformed into a modulated voltage signal. The subsequent demodulation of this signal, coupled with closed-loop feedback and control, facilitates the real-time capture and analysis of angular velocity data.
Functional Components
The product comprises two integral components. The first is an optical angular velocity sensitive unit that is the core of the sensor's capability to detect rotational movements. The second is the signal detection mechanism that processes the captured information. Together, these components provide users with valuable data on uniaxial angular movements as well as the internal temperature, ensuring comprehensive monitoring for a wide array of applications.
Features:
- Product Name: Gyroscope Sensor
- Good magnetic shielding performance
- High installation accuracy
- Features advanced gyro technology
- Incorporates a high-precision gyroscope for accurate angular rate measurement
- Utilizes fiber optic gyroscope (FOG) technology for reliability and accuracy
Technical Parameters:
| Sn# |
Test item |
H |
L |
| 1 |
Dimensions (mm) |
50×50×36 |
50×50×36 |
| 2 |
Start time (s) |
5 |
5 |
| 3 |
Bias drift (°/h) (10s smooth, fix temperature) |
≤0.1 |
≤0.3 |
| 4 |
Bias drift (°/h) (10s smooth -45~+70℃) |
≤0.3 |
≤0.5 |
| 5 |
Bias repeatability (°/h) |
≤0.05 |
≤0.1 |
| 6 |
Random walk coefficient(°/h1/2) |
≤0.01 |
≤0.02 |
| 7 |
Scale factor non-linearity (ppm) |
≤10 |
≤20 |
| 8 |
Scale factor repeatability (ppm) |
≤10 |
≤20 |
| 9 |
Operate temperature (℃) |
-45～+70 |
-45～+70 |
| 10 |
Storage temperature (℃) |
-50～+80 |
-50～+80 |
| 11 |
Dynamic range (°/s) |
±900 |
±900 |
| 12 |
Supply voltage (V) |
+5 |
+5 |
| 13 |
Steady-state power consumption (full temperature) (W) |
<4 |
<4 |
| 14 |
Weight (g) |
＜130 |
＜130 |

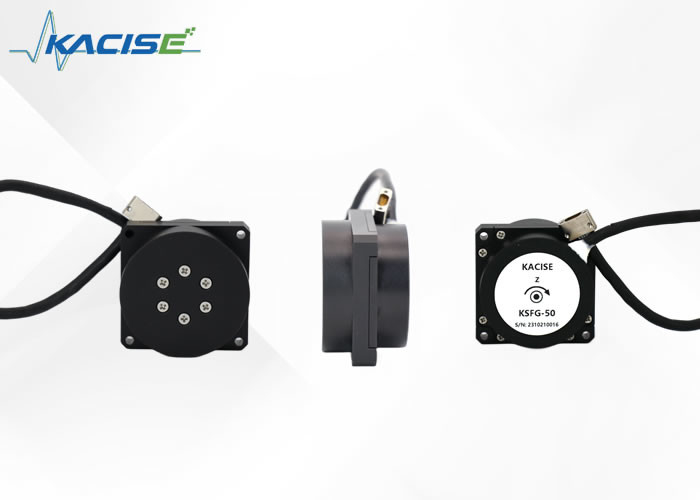

Dimensions
Applications:
Product Application Scope
Our range of products is specifically designed to meet the needs of a variety of specialized fields. They are highly suitable for integration with a selection of technologically advanced equipment commonly utilized in industry-specific applications.
In the realm of photoelectric technology, our products can be seamlessly incorporated with crane systems. This includes both static crane setups and those requiring more dynamic control, such as flying platforms, allowing for precise operation and control.
For the navigation and positioning sectors, our offerings are compatible with inertial navigation and measurement systems. These systems are essential in maintaining accuracy and reliability in environments where other navigation and measurement techniques may fail.
Furthermore, the products enhance the functionality of various optical and photographic instruments. They facilitate the accurate capture and recording of data, which is crucial in disciplines that require high precision and stability.
Lastly, our products also serve as critical components in platform stabilization devices and inertial measurement instruments. They are instrumental in ensuring the stability and accuracy of these devices across multiple applications.
Support and Services:
Welcome to our Technical Support and Services for the Electronic Gyroscope Sensor. We are dedicated to providing you with comprehensive support to ensure the optimal performance of your sensor. Our services include:
Product Documentation: Access detailed user manuals, installation guides, and datasheets to help you understand the functionalities and specifications of the Electronic Gyroscope Sensor.
FAQs and Troubleshooting: Find answers to frequently asked questions and step-by-step troubleshooting assistance to resolve common issues quickly.
Firmware Updates: Keep your sensor up-to-date with the latest firmware versions for enhanced features and improved performance.
Technical Inquiry: If you have specific technical questions or require expert advice, our skilled technical support team is ready to assist you.
Warranty Service: Learn about the warranty terms for your product and how to process a warranty claim should your sensor encounter any defects.
Replacement Parts: Obtain information on how to order replacement parts or additional accessories for your Electronic Gyroscope Sensor.
Product Training: We offer training sessions to help you and your team get the most out of the Electronic Gyroscope Sensor, ensuring you are proficient in its use and maintenance.
Our commitment is to provide you with exceptional support and services to maintain the high performance and longevity of your Electronic Gyroscope Sensor. Thank you for choosing our product.
Packing and Shipping:
The Electronic Gyroscope Sensor is meticulously packaged to ensure maximum protection during shipping. Each sensor is enclosed in an anti-static bag to prevent electrostatic discharge damage. The bag is then cushioned with custom-fitted foam inserts that snugly secure the sensor within a sturdy, corrugated cardboard box. This packaging is designed to withstand the rigors of transit and to protect the delicate electronic components from any external pressure, shock, or vibration.
Before shipping, each box is sealed with tamper-evident tape and labeled with clear handling instructions. The exterior of the box is marked with the appropriate warning stickers to indicate that the contents are fragile and should be handled with care. We ensure that our shipping partners are informed of the package's sensitivity, and we select shipping options that minimize transit time to reduce the potential for damage en route.
Upon dispatch, customers will receive a tracking number to monitor the shipping progress. We encourage customers to inspect the Electronic Gyroscope Sensor immediately upon arrival and to report any issues to our customer service team so that we can address them promptly. Our packaging and shipping protocols are designed to deliver the product in perfect condition, ready for use in a variety of applications.
