| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSFG-50 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Steady-state Power Consumption (full Temperature): | <4(W) | Dimensions: | 50×50×36 (mm) |
|---|---|---|---|
| Bias Drift (10s Smooth, Fix Temperature): | ≤0.1(°/h) | Weight: | <130 (g) |
| Scale Factor Non-linearity: | ≤10 (ppm) | Operate Temperature: | -45～+70 (℃) |
| Scale Factor Repeatability: | ≤10 (ppm) | Supply Voltage: | +5 (V) |
| High Light: | Start Time 5s Electronic Gyroscope Sensor,Weight 130g Electronic Gyroscope Sensor,4W Electronic Gyroscope Sensor |
||

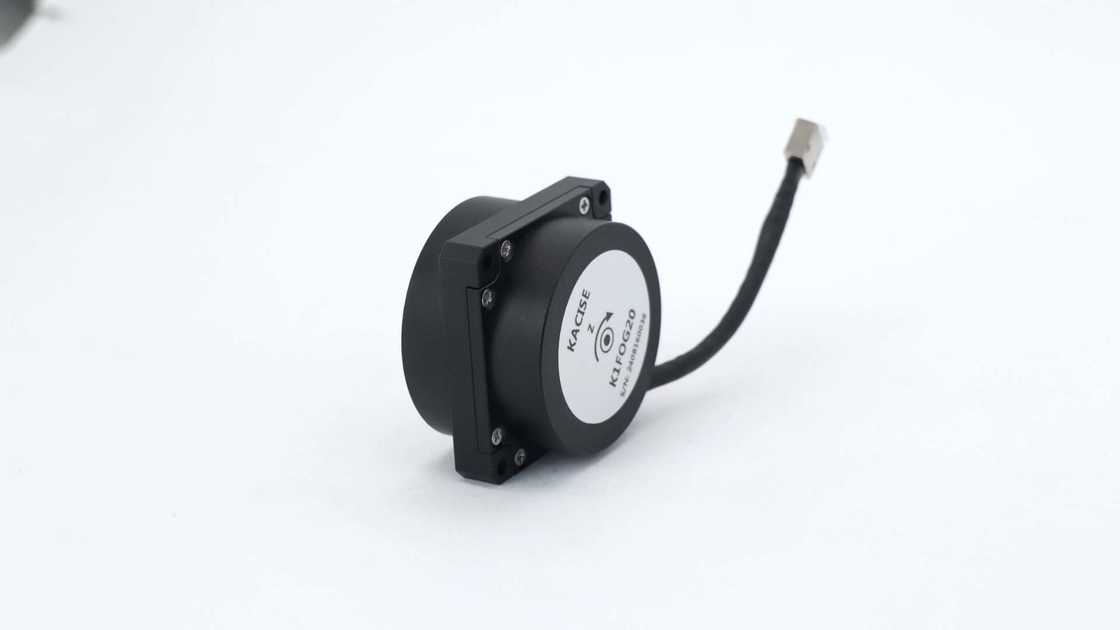

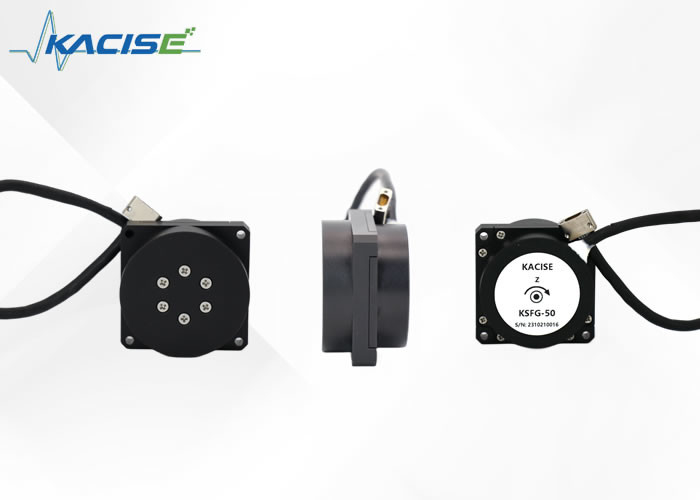

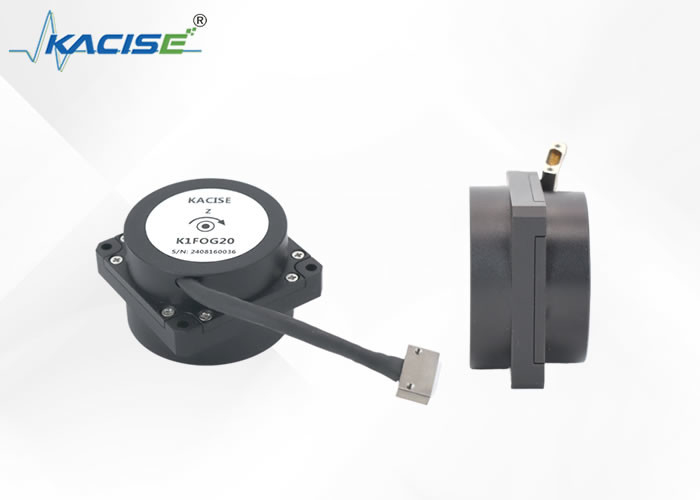

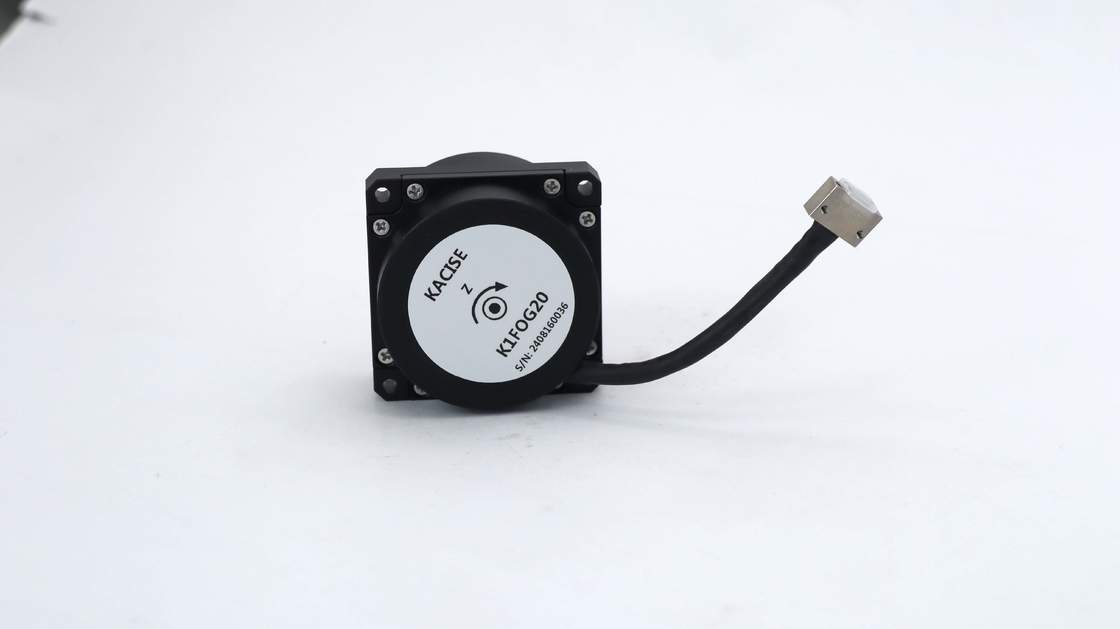

The product under discussion is a sophisticated inertial angle rate sensor that operates on the principles of the optical Sagnac effect. This technological breakthrough is specially designed to measure the rotational angular velocity of the object it is attached to along a predefined sensitive axis.
At the core of its functionality, the sensor employs a digital closed-loop detection circuit. The primary role of this circuit is to keenly detect and discern the optical path difference. This difference arises due to the effect of the external physical angular speed on the clockwise-propagating light within the system. In order to capture the optical path signal, modulation and demodulation techniques are applied to the corresponding voltage signal. Subsequently, a meticulous closed-loop feedback and control system is integrated. The amalgamation of these processes culminates in the capacity for real-time angular velocity signal detection, offering a high degree of precision and reliability.
Functionally, the product is bifurcated into two primary segments: the optical angular velocity sensitive unit and the signal detection module. Each of these components plays a pivotal role in the overall utility of the sensor. The optical angular velocity sensitive unit is responsively tuned to measure and provide information on uniaxial angle increments. Alongside, signal detection contributes to the sensor's operational efficacy by providing key data on internal temperature variations. These elements together facilitate a comprehensive understanding of the dynamic conditions affecting the carrier.
| Sn# | Test item | H | L |
| 1 | Dimensions (mm) | 50×50×36 | 50×50×36 |
| 2 | Start time (s) | 5 | 5 |
| 3 | Bias drift (°/h) (10s smooth, fix temperature) | ≤0.1 | ≤0.3 |
| 4 | Bias drift (°/h) (10s smooth -45~+70℃) | ≤0.3 | ≤0.5 |
| 5 | Bias repeatability (°/h) | ≤0.05 | ≤0.1 |
| 6 | Random walk coefficient(°/h1/2) | ≤0.01 | ≤0.02 |
| 7 | Scale factor non-linearity (ppm) | ≤10 | ≤20 |
| 8 | Scale factor repeatability (ppm) | ≤10 | ≤20 |
| 9 | Operate temperature (℃) | -45～+70 | -45～+70 |
| 10 | Storage temperature (℃) | -50～+80 | -50～+80 |
| 11 | Dynamic range (°/s) | ±900 | ±900 |
| 12 | Supply voltage (V) | +5 | +5 |
| 13 | Steady-state power consumption (full temperature) (W) | <4 | <4 |
| 14 | Weight (g) | ＜130 | ＜130 |
Dimensions
The range of applications for our products is expansive and diverse, catering to a variety of technological and industrial needs. Our offerings are primarily designed for integration with systems that demand a high level of precision and stability.
Key areas of utilization include photoelectric cranes. These sophisticated pieces of machinery require consistent performance and our products ensure they operate seamlessly. Cranes and flying platforms also benefit greatly from our state-of-the-art technology, which enhances their functionality and safety.
When it comes to navigation and measurement, our products provide essential support for inertial navigation and inertial measurement systems. They offer the accuracy and reliability needed for these complex applications.
Optical and photographic instruments are another pivotal use case for our line of products. By employing our technology, these instruments can achieve greater precision and clarity, which is crucial in fields that rely heavily on the minutiae of imagery and data.
Lastly, platform stabilization devices and inertial measurement instruments are significantly improved with the application of our products. These devices are integral in various sectors where stability and exactitude are paramount.
Our Electronic Gyroscope Sensor is designed with precision engineering and is built to deliver reliable performance for a range of applications. To ensure you get the most out of your sensor, we offer comprehensive technical support and services. Our support includes detailed product documentation, a robust FAQ section on our website, and a suite of diagnostic tools to assist in troubleshooting.
If you encounter any issues or have technical questions, our dedicated team of experts is ready to provide you with step-by-step guidance to resolve your queries efficiently. We are committed to providing ongoing support to help you integrate our gyroscope sensor into your projects seamlessly.
For developers, we provide an extensive library of development resources, including sample code, integration guides, and application notes. Our goal is to help you reduce development time and get to market faster. Additionally, we offer customization services for specific use-cases and can provide expert advice on how to optimize the sensor for your unique needs.
We place a high value on customer feedback and continually work to improve our products and services. You are welcome to share your user experience with us so that we can serve you better. Thank you for choosing our Electronic Gyroscope Sensor, and we look forward to supporting your success.
The Electronic Gyroscope Sensor is packaged in an anti-static bag to prevent electrostatic discharge damage during handling and transport. The bag is then placed within a sturdy, custom-fit cardboard box with foam inserts that secure the sensor in place, providing additional shock absorption. For added protection, the box is sealed with tamper-evident tape, ensuring the product's integrity upon arrival.
For shipping, the boxed sensor is placed in a larger, durable corrugated box with ample cushioning material on all sides to prevent movement and absorb impact. This outer box is clearly labeled with fragile handling instructions and the necessary orientation arrows. Each shipping package includes a packing slip with product details and a unique tracking number to allow customers to monitor the delivery progress.
