| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSFG-60 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Storage Temperature: | -50～+80(℃) | Scale Factor Non-linearity: | ≤10 (ppm) |
|---|---|---|---|
| Bias Drift (10s Smooth, Fix Temperature): | ≤0.1(°/h) | Bias Drift (10s Smooth) -45~ + 70℃: | ≤0.5(°/h) |
| Operate Temperature: | -45～+70 (℃) | Scale Factor Repeatability: | ≤10 (ppm) |
| Bias Repeatability: | ≤0.1(°/h) | Dynamic Range: | ±500(°/s) |
| High Light: | autonomous driving systems Fiber optic gyroscopes,10 ppm Fiber optic gyroscopes |
||

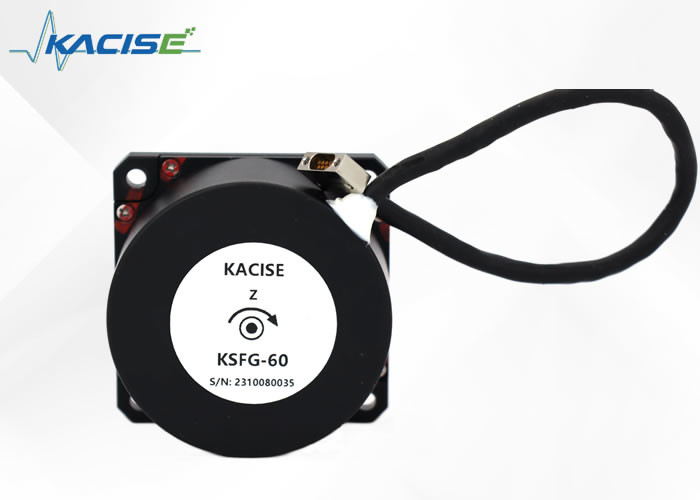

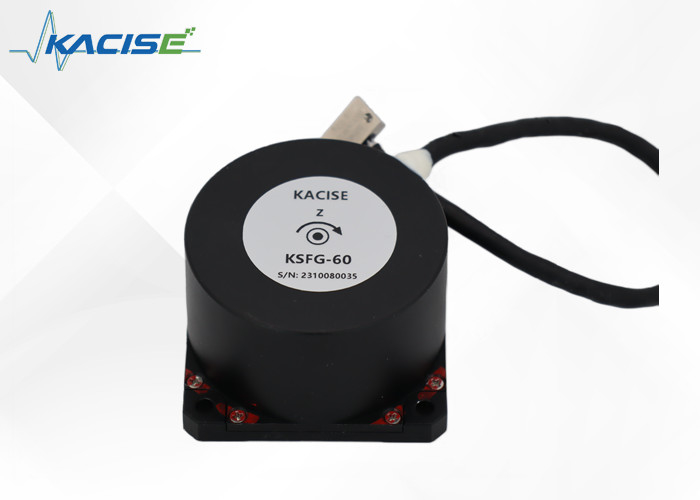

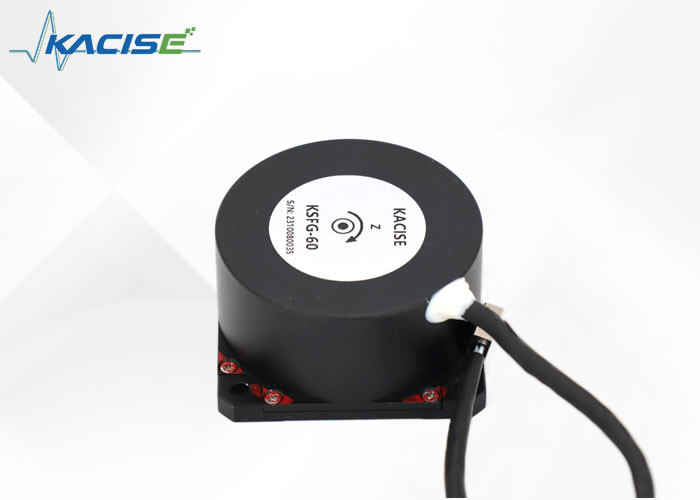

The product featured here is an inertial angle rate sensor that leverages the optical Sagnac effect. Its primary function is to measure the rotational angular velocity of an object along a specified sensitive axis. This measurement process is vital for applications that require precise orientation control and navigation.
A digital closed-loop detection circuit lies at the heart of the device and is responsible for accurately determining the optical path difference. This difference arises due to the clockwise light being affected by the external physical angular speed. By modulating and demodulating the resultant voltage signal of the optical path, the device can effectively perform closed-loop feedback and control. This operation is crucial for the detection of real-time angular velocity signals.
Constructed from two main components, the sensor boasts an optical angular velocity sensitive unit and a signal detection mechanism. Together, these modules provide valuable output, including the uniaxial angle increment data as well as internal temperature readings. Such comprehensive functionality makes it an indispensable tool in sophisticated control systems.
| Sn# | Test item | H |
| 1 | Dimensions (mm) | 60×60×32 |
| 2 | Start time (s) | 3 |
| 3 | Bias drift (°/h) (10s smooth, fix temperature) | ≤0.1 |
| 4 | Bias drift (°/h) (10s smooth -45~+70℃) | ≤0.5 |
| 5 | Bias repeatability (°/h) | ≤0.1 |
| 6 | Random walk coefficient(°/h1/2) | ≤0.01 |
| 7 | Scale factor non-linearity (ppm) | ≤10 |
| 8 | Scale factor repeatability (ppm) | ≤10 |
| 9 | Operate temperature (℃) | -45～+70 |
| 10 | Storage temperature (℃) | -50～+80 |
| 11 | Dynamic range (°/s) | ±500 |
| 12 | Supply voltage (V) | +5 |
| 13 | Steady-state power consumption (full temperature) (W) | <4 |
| 14 | Weight (g) | ＜180 |
Our diverse range of products is primarily designed to cater to the needs of various photoelectric and lifting equipment. Specifically, they are well-suited for integration with photoelectric cranes. This includes all types of crane systems that require precise photoelectric controls to ensure efficient operation and safety.
Additionally, these products prove highly effective when implemented in aerial work platforms. These flying platforms benefit significantly from the advanced technology our products provide, enhancing stability and performance in aerial operations.
The field of inertial technology also sees a great advantage with our offerings. Applications such as inertial navigation and inertial measurement systems are areas where our high-precision instruments provide reliable data and support essential for accurate navigation and measurements.
Optics and photography are other industries that can achieve improved results with our product line. Devices like optical and photographic instruments attain greater accuracy and improved functionality when equipped with our state-of-the-art technology.
Lastly, platform stabilization devices and inertial measurement instruments are sectors where our products can be applied effectively. They offer innovative solutions that ensure consistent performance and reliability across different environmental conditions and use cases.
Our Electronic Gyroscope Sensor is designed to deliver reliable and accurate motion sensing for a wide range of applications. To ensure the best performance and longevity of your product, we offer comprehensive technical support and services tailored to meet your needs.
Technical Support: Our dedicated team of experts is available to assist you with any technical queries or challenges you may encounter. Whether you're experiencing issues with installation, integration, or operation, we are here to offer guidance and solutions to get your gyroscope sensor running smoothly.
Firmware Updates: Keep your sensor up to date with the latest firmware enhancements. We provide easy-to-follow instructions and support for updating your sensor's firmware, ensuring you benefit from the latest improvements and features.
Troubleshooting: In the event of a problem, our troubleshooting service is designed to diagnose and resolve issues promptly. We offer step-by-step support to identify the cause of any malfunction and provide clear instructions to rectify the problem.
Product Documentation: Access detailed product manuals, technical specifications, and application guides. Our comprehensive documentation is designed to support you through every stage of the product lifecycle, from setup to advanced use.
Service and Repairs: Should your Electronic Gyroscope Sensor require service or repairs, our skilled technicians are equipped to restore your device to its optimal condition. We use only genuine parts and adhere to the strictest standards of quality and care.
Training: We offer training sessions for individuals and teams to ensure you're getting the most out of your gyroscope sensor. Our training covers operational best practices, maintenance procedures, and in-depth product knowledge.
Our commitment to excellence in support and services ensures that you can rely on our Electronic Gyroscope Sensor to perform at its best, providing you with precise and dependable readings for all your motion sensing requirements.
The Electronic Gyroscope Sensor is meticulously packaged to ensure its safety and integrity during transit. The sensor is first enclosed in an anti-static bag to protect against electrostatic discharge. This bag is then cushioned within a robust, custom-fitted foam insert that absorbs shocks and vibrations. The foam insert, along with the sensor, is placed into a sturdy cardboard box designed to withstand the rigors of shipping. The box is sealed with reinforced tape and clearly labeled with "Fragile: Handle With Care" to alert carriers of the delicate nature of the contents.
For shipping, the packaged Electronic Gyroscope Sensor is dispatched through a reliable courier service with a trackable shipping method. Customers will receive a tracking number to monitor the shipment's progress until delivery. We take every precaution to ensure that the product arrives at its destination in perfect working condition.
