Product Description:
Product Overview

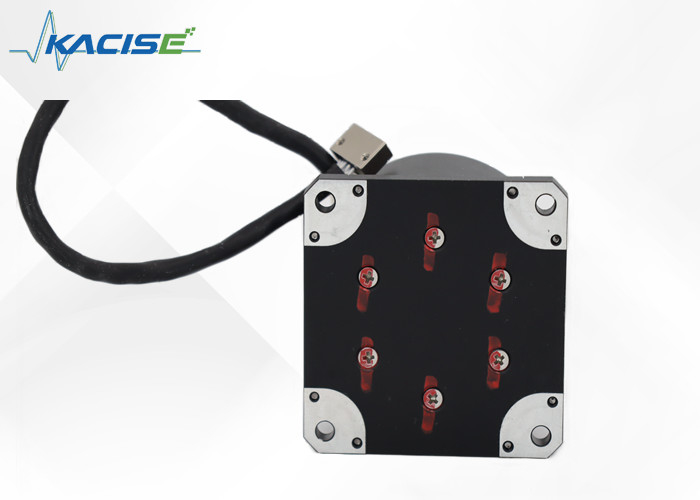

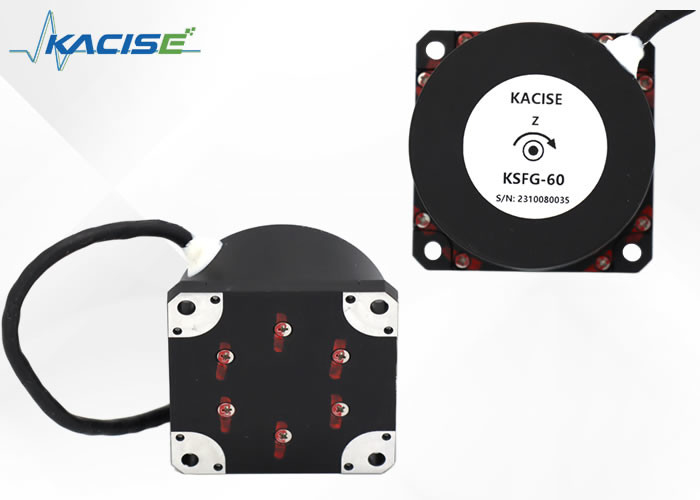

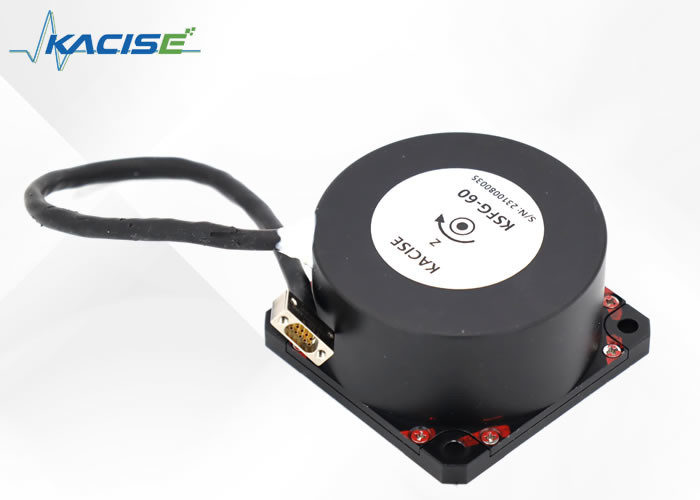

The product featured is a state-of-the-art inertial angle rate sensor that utilizes the optical Sagnac effect for the precise measurement of rotational angular velocity along its sensitivity axis. At its core, the sensor is designed to capture rotational movements of the carrier with high accuracy.
Technical Operation
Equipped with a sophisticated digital closed-loop detection circuitry, the device meticulously processes the optical path discrepancies. This occurs when external physical angular speed induces a difference in the clockwise light path. Subsequently, the system modulates the resultant voltage signal from the optical path signal. It also performs demodulation in conjunction with closed-loop feedback and control mechanisms. All this is done to facilitate the accurate detection of real-time angular velocity signals.
Key Functionalities
Our product is divided into two main components. First, there is the optical angular velocity sensitive unit, which is responsible for detecting the angle increments with precision. Second, the signal detection component captures and processes this data. Together, they provide users with critical one-dimensional angle increment data as well as internal temperature readings, ensuring comprehensive monitoring and control.
Features:
- Product Name: Gyroscope Sensor
- Good magnetic shielding performance
- High installation accuracy
- Features advanced gyro technology
- Incorporates a high-precision gyroscope for accurate angular rate measurement
- Utilizes fiber optic gyroscope (FOG) technology for reliability and accuracy
Technical Parameters:
| Sn# | Test item | H |
| 1 | Dimensions (mm) | 60×60×32 |
| 2 | Start time (s) | 3 |
| 3 | Bias drift (°/h) (10s smooth, fix temperature) | ≤0.1 |
| 4 | Bias drift (°/h) (10s smooth -45~+70℃) | ≤0.5 |
| 5 | Bias repeatability (°/h) | ≤0.1 |
| 6 | Random walk coefficient(°/h1/2) | ≤0.01 |
| 7 | Scale factor non-linearity (ppm) | ≤10 |
| 8 | Scale factor repeatability (ppm) | ≤10 |
| 9 | Operate temperature (℃) | -45～+70 |
| 10 | Storage temperature (℃) | -50～+80 |
| 11 | Dynamic range (°/s) | ±500 |
| 12 | Supply voltage (V) | +5 |
| 13 | Steady-state power consumption (full temperature) (W) | <4 |
| 14 | Weight (g) | ＜180 |
Dimensions
Applications:
Application Scope of Our Products
Our products find their primary use in a wide range of applications. They are adeptly designed to cater to the demanding needs of photoelectric devices, ensuring precise performance in various settings.
In the realm of construction and maintenance, they are highly suitable for both cranes and flying platforms. These high-stakes environments benefit from the reliability and accuracy that our products provide.
With a focus on navigation and measurement, our offerings are an ideal match for inertial navigation systems and inertial measurement systems. These critical systems require the stability and precision our products are known for.
Furthermore, our products excel in the optical and photographic industries. They enhance the capabilities of photographic instruments, aiding in the capture of flawless imagery regardless of external conditions.
Lastly, platform stabilization devices and inertial measurement instruments also heavily utilize our technology. These applications rely on our products for their steady and dependable performance.
Support and Services:
Welcome to our Technical Support and Services for the Electronic Gyroscope Sensor. Our team is dedicated to ensuring that you get the most out of your product. We offer comprehensive support services designed to provide you with the guidance and solutions you need to utilize your gyroscope sensor to its fullest potential.
Our Technical Support includes:
Online Troubleshooting Guide: A detailed resource to help you diagnose and resolve common issues that may arise during the use of your gyroscope sensor.
Detailed Product Documentation: Access to a library of documents that include the product manual, technical specifications, and application notes to help you understand and implement your sensor effectively.
Our Services include:
Technical Inquiry Support: Our team of experts is available to answer any technical questions you may have regarding the gyroscope sensor. We aim to provide detailed and helpful responses to ensure your queries are resolved.
Warranty Service: We stand by the quality of our product and offer a warranty service for the Electronic Gyroscope Sensor. Should you encounter any defects, we will guide you through the warranty process to find a resolution.
We are committed to providing you with exceptional support and service to enhance your experience with our product. Should you need any further assistance, please visit our support section on the website or reach out to our customer service team for help.
Packing and Shipping:
Product Packaging for Electronic Gyroscope Sensor:
The Electronic Gyroscope Sensor is securely enclosed within a static-free, cushioned package to ensure the integrity of the sensitive components. The primary packaging is a rigid, form-fitting plastic shell that prevents movement during transit. This is then placed within a secondary, durable cardboard box that is clearly labeled with the product name, handling instructions, and any pertinent warning symbols. Each box includes a desiccant packet to minimize moisture and preserve the sensor's functionality.
Shipping for Electronic Gyroscope Sensor:
All orders of the Electronic Gyroscope Sensor are dispatched using trusted courier services to ensure timely and safe delivery. Each shipment is tracked, with the tracking number provided to the customer upon dispatch. The outer packaging is sealed with tamper-evident tape and labeled with "Fragile" and "Handle with Care" to alert carriers to the delicate nature of the contents. We offer both standard and expedited shipping options to meet various delivery timeframes and budget requirements. Customers are encouraged to inspect their delivery upon arrival and report any issues within 48 hours.
