| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSFG-70 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Steady-state Power Consumption (full Temperature): | <4(W) | Storage Temperature: | -45～+80 (℃) |
|---|---|---|---|
| Start Time: | 5 (s) | Scale Factor Repeatability: | ≤10 (ppm) |
| Bias Drift (10s Smooth, Fix Temperature): | ≤0.03(°/h) | Dimensions: | 70×70×32(mm) |
| Bias Repeatability: | ≤0.03(°/h) | Weight: | ＜290(g) |
| High Light: | Inertial Navigation Systems Fiber Optic Gyroscopes,Lightweight Fiber Optic Gyroscopes |
||

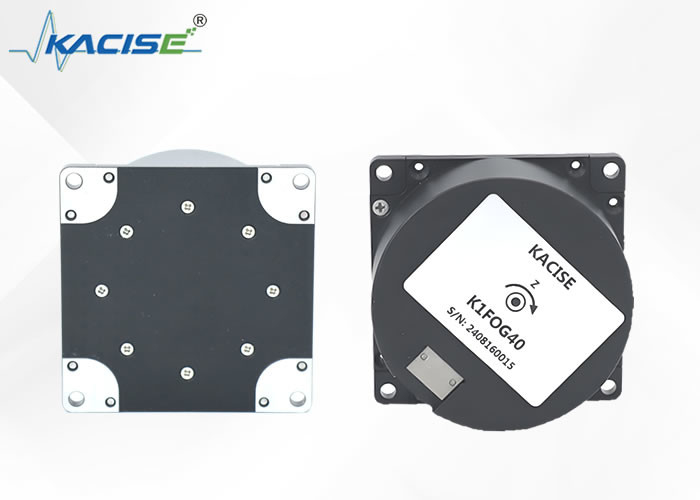

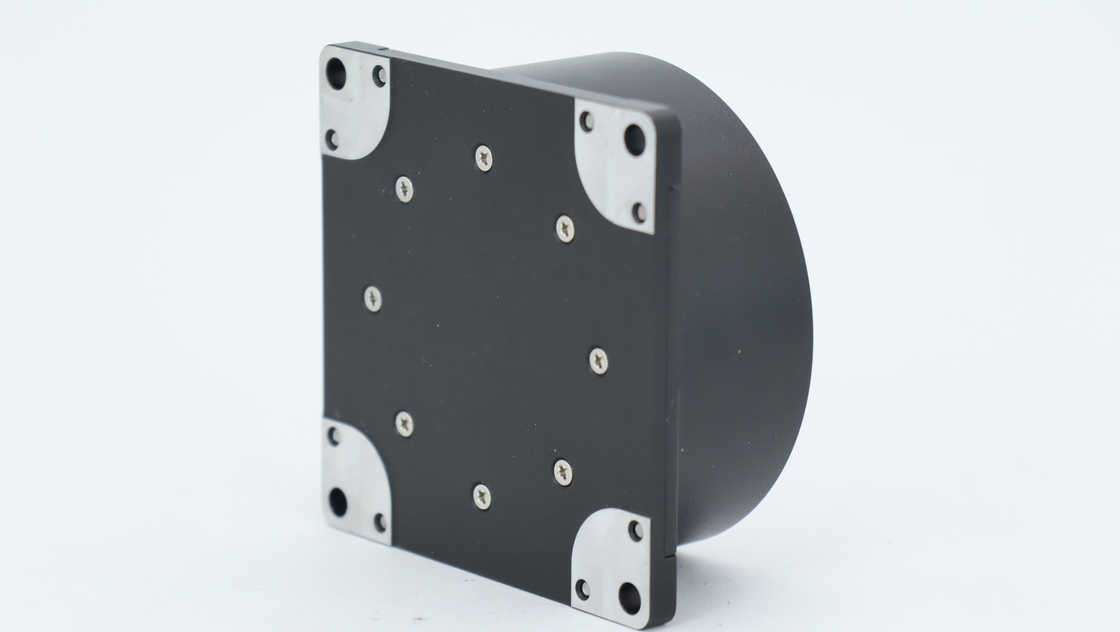

The product on offer is a sophisticated inertial angle rate sensor which leverages the principles of the optical Sagnac effect. It is specifically designed to capture and measure the rotational angular velocity that a vehicle experiences around its sensitive axis. This cutting-edge sensor marks a significant advance in the field of motion detection technology.
Our device incorporates a digital closed-loop detection circuit at its core. This innovative circuitry is adept at discerning the optical path difference induced by the carrier's angular speed. Particularly, it focuses on the path difference generated in the clockwise light path. By adeptly modulating and demodulating the resultant optical path voltage signal, our sensor achieves paramount precision.
Additionally, the sensor does not merely stop at measurement; it executes closed-loop feedback and control . This results in the facilitation of real-time detection of angular velocity signals. Thus, enabling users to monitor and react to dynamic changes in rotational movement with exceptional agility.
Apart from the aforementioned functionalities, the product is bifurcated into two main components. The first is the optical angular velocity sensitive unit which is primarily responsible for the detection of angular velocity. The second is the signal detection module, which is instrumental in delivering uniaxial angle increment data complemented with internal temperature readings. These attributes together make our product an invaluable asset for diverse applications requiring precise motion analytics.
| Sn# | test item | H | M | L |
| 1 | Dimensions (mm) | 70×70×32 | 70×70×32 | 70×70×32 |
| 2 | start time (s) | 5 | 5 | 5 |
| 3 | Bias drift (°) / h (10s and 100s smoothing, fix temperature) |
≤0.03(10s) ≤0.01(100s) |
≤0.05 | ≤0.3 |
| 4 | Bias drift (°) / h (10s smoothing) -45~ + 70℃ | ≤0.1 | ≤0.15 | ≤0.5 |
| 5 | Bias repeatability (°) / h | ≤0.03 | ≤0.05 | ≤0.3 |
| 6 | Random walk coefficient(º)/h1/2 | ≤0.005 | ≤0.01 | ≤0.02 |
| 7 | Scale factor non-linearity (ppm) | ≤10 | ≤20 | ≤50 |
| 8 | Scale factor repeatability (ppm) | ≤10 | ≤20 | ≤50 |
| 9 | Operate temperature (℃) | -40～+70 | -40～+70 | -40～+70 |
| 10 | Storage temperature of (℃) | -45～+80 | -45～+80 | -45～+80 |
| 11 | Dynamic range (°) / s | ±500 | ±500 | ±500 |
| 12 | Supply voltage (V) | ±5 | ±5 | ±5 |
| 13 | Steady-state power consumption (full temperature) (W) | <4 | <4 | <4 |
| 14 | weight (g) | <290 | <290 | <290 |
The products we offer are designed to cater to an extensive range of applications. Primarily, they are ideal for integration with various systems and devices in sectors relying heavily on precision and stability.
Additionally, our products find their use in:
All these applications benefit from the advanced technology and reliability of our products, which are engineered to meet the stringent demands of each specialized field.
The Electronic Gyroscope Sensor is designed to provide precise rotational motion detection across various axes. Our technical support and services are committed to ensuring you get the most out of your sensor through the following offerings:
Product Documentation: Comprehensive guides and manuals are available to help you understand the installation, operation, and maintenance of the Electronic Gyroscope Sensor.
Firmware Updates: We provide regular firmware updates to enhance the sensor's performance, add new features, and address any known issues.
Troubleshooting Assistance: If you encounter any operational difficulties, our dedicated team is ready to provide step-by-step troubleshooting support to resolve your issues promptly.
Technical Inquiry: For any technical queries regarding the Electronic Gyroscope Sensor, our experts are available to provide you with detailed explanations and support.
Warranty Service: The Electronic Gyroscope Sensor comes with a limited warranty. For warranty claims or questions, please refer to the warranty documentation provided with your product.
Repair Services: Should your sensor require repair, our skilled technicians are equipped to diagnose and restore your device to its full functionality, subject to service terms and conditions.
Replacement Parts: We offer a selection of genuine replacement parts to ensure your sensor maintains its performance and longevity.
Knowledge Base: Access our online knowledge base for FAQs, technical articles, and best practices for using the Electronic Gyroscope Sensor.
Community Forum: Join our community forum to connect with other users, share experiences, and find solutions to common challenges.
Our aim is to provide exceptional support and services to enhance your experience with the Electronic Gyroscope Sensor. For more personalized assistance or to escalate any concerns, please reach out to our customer service team during our business hours.
The Electronic Gyroscope Sensor is meticulously packaged to ensure its safety and integrity during transit. The product is housed in an anti-static bag, which guards against electrostatic discharges that could potentially damage the sensitive electronic components. Surrounding the anti-static bag is a layer of bubble wrap providing cushioning against physical shocks and vibrations.
For added protection, the wrapped sensor is then placed into a sturdy, custom-fit cardboard box. The box is filled with additional packing material, such as foam peanuts or air cushions, to prevent any movement within the package during shipping. This box is then sealed with heavy-duty packing tape to maintain its integrity and security.
Prior to dispatch, the package is labeled with all necessary shipping information, including a barcode and handling instructions, to ensure the package is properly tracked and treated with care throughout its journey. The package is shipped with a reliable courier service to provide timely and safe delivery to the customer, with options for shipping insurance and expedited service available upon request.
