| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSFG-70 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Dynamic Range: | ±500 (°/s) | Bias Repeatability: | ≤0.03 (°/h) |
|---|---|---|---|
| Dimensions: | 70×70×32 (mm) | Bias Drift (10s Smooth, Fix Temperature): | ≤0.03(°/h) |
| Operate Temperature: | -40～+70 (℃) | Weight: | ＜290 (g) |
| Start Time: | 5 (s) | Scale Factor Non-linearity: | ≤10 (ppm) |
| High Light: | Industrial Fiber Optic Gyroscope,Inertial Angle Rate Fiber Optic Gyroscope,Precision Inertial Angle Rate Sensor |
||

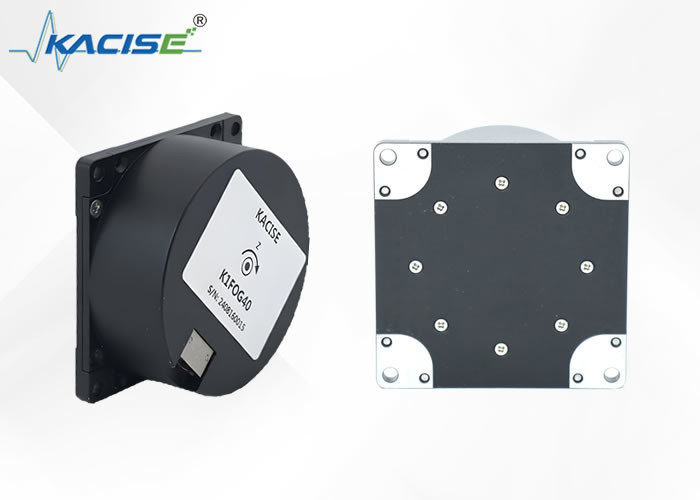

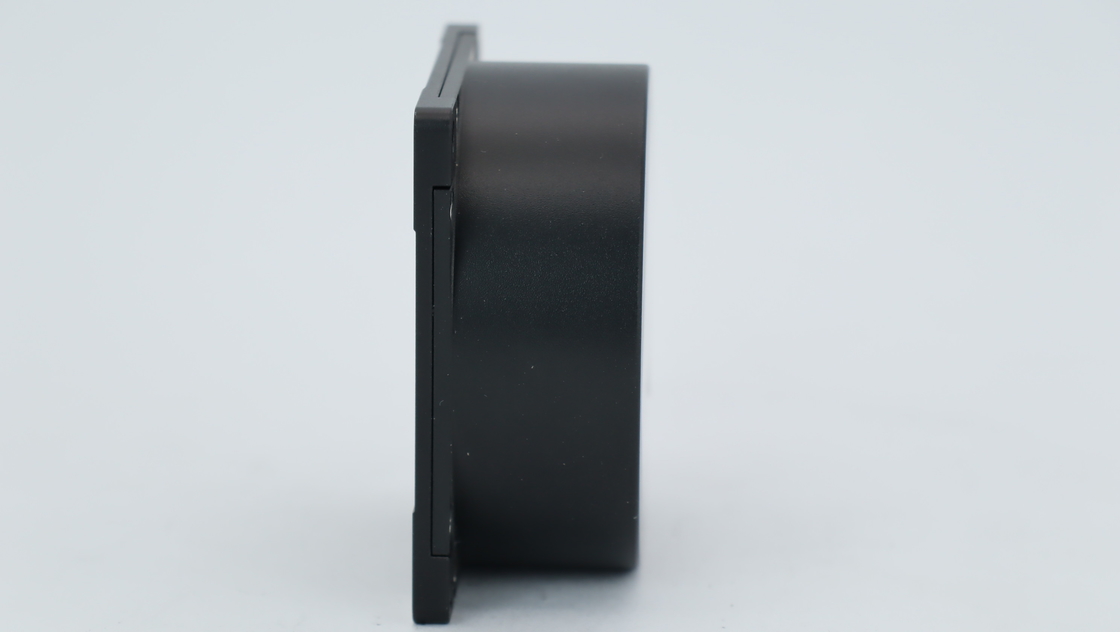

The sensor at hand incorporates state-of-the-art technology to gauge the rotation of a carrier relative to its sensitive axis. It draws on the sophisticated optical Sagnac effect to measure the rotational angular velocity with precision.
A digital closed-loop detection circuitry forms the core of this device, efficiently capturing the optical path difference precipitated by the clockwise light movement. This occurs as a result of any angular speed exerted from the outside. The subsequent process involves a two-step modulation and demodulation of the optical path's voltage signal.
Upon modulation, a closed-loop feedback system springs into action, fulfilling the crucial role of control and facilitation of real-time monitoring of the angular velocity signal.
Our product boasts a dual-component design. The first is the optical angular velocity sensitive unit, pivotal for its central function. The second element consists of a sophisticated signal detection mechanism. Together, they provide the user with vital data - specifically the uniaxial angle increment and internal temperature readings, essential in various applications.
| Sn# | test item | H | M | L |
| 1 | Dimensions (mm) | 70×70×32 | 70×70×32 | 70×70×32 |
| 2 | start time (s) | 5 | 5 | 5 |
| 3 | Bias drift (°) / h (10s and 100s smoothing, fix temperature) |
≤0.03(10s) ≤0.01(100s) |
≤0.05 | ≤0.3 |
| 4 | Bias drift (°) / h (10s smoothing) -45~ + 70℃ | ≤0.1 | ≤0.15 | ≤0.5 |
| 5 | Bias repeatability (°) / h | ≤0.03 | ≤0.05 | ≤0.3 |
| 6 | Random walk coefficient(º)/h1/2 | ≤0.005 | ≤0.01 | ≤0.02 |
| 7 | Scale factor non-linearity (ppm) | ≤10 | ≤20 | ≤50 |
| 8 | Scale factor repeatability (ppm) | ≤10 | ≤20 | ≤50 |
| 9 | Operate temperature (℃) | -40～+70 | -40～+70 | -40～+70 |
| 10 | Storage temperature of (℃) | -45～+80 | -45～+80 | -45～+80 |
| 11 | Dynamic range (°) / s | ±500 | ±500 | ±500 |
| 12 | Supply voltage (V) | ±5 | ±5 | ±5 |
| 13 | Steady-state power consumption (full temperature) (W) | <4 | <4 | <4 |
| 14 | weight (g) | <290 | <290 | <290 |
Our products are optimally designed for a broad range of applications. Primarily, they serve the needs of various systems and devices that require precision and stability. These include, but are not limited to:
These applications emphasize the versatility and reliability of our products, making them indispensable components in these sectors.
Our Electronic Gyroscope Sensor is designed to provide precise rotational rate measurements, ensuring high performance and reliability for your applications. To enhance your experience and maintain the optimal operation of your sensor, we offer comprehensive technical support and services.
Technical Support:
Services:
Please refer to the documentation provided with your sensor for specific support and service details. Our dedication to customer satisfaction means that we are constantly striving to improve our support services to meet your needs.
The Electronic Gyroscope Sensor is meticulously packaged in a static-resistant bag to ensure its delicate components remain unaffected by electrostatic discharges during transit. The sensor is then cushioned within a sturdy, custom-fitted foam insert that cradles it securely, reducing the risk of damage from vibrations or impacts.
For the outer packaging, we utilize a durable, high-quality cardboard box that is sized appropriately for the product to minimize unnecessary movement. The box is sealed with heavy-duty packing tape to maintain its integrity and protect against the elements during shipping.
Each box is clearly labeled with the product name, part number, and a barcode for easy identification and tracking. We also include a pack list on the exterior for quick verification of contents without the need to open the box, thus preserving the integrity of the packaging until it reaches its final destination.
To ensure prompt and safe delivery, the packaged Electronic Gyroscope Sensor is shipped through a reliable courier service with options for tracking and insurance. Customers will receive a tracking number as soon as the item is dispatched, allowing for real-time updates on the shipping status.
