| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSFG-70 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Scale Factor Repeatability: | ≤10 (ppm) | Dynamic Range: | ±500 (°) / S |
|---|---|---|---|
| Scale Factor Non-linearity: | ≤10 (ppm) | Steady-state Power Consumption (full Temperature): | <4(W) |
| Start Time: | 5(s) | Bias Drift (10s Smooth, Fix Temperature): | ≤0.03 (°/h) |
| Operate Temperature: | -40～+70 (℃) | Weight: | ＜290 (g) |
| High Light: | High-grade Inertial Angle Rate Sensor,Industrial Grade Electronic Gyroscope Sensor,290 g Electronic Gyroscope Sensor |
||

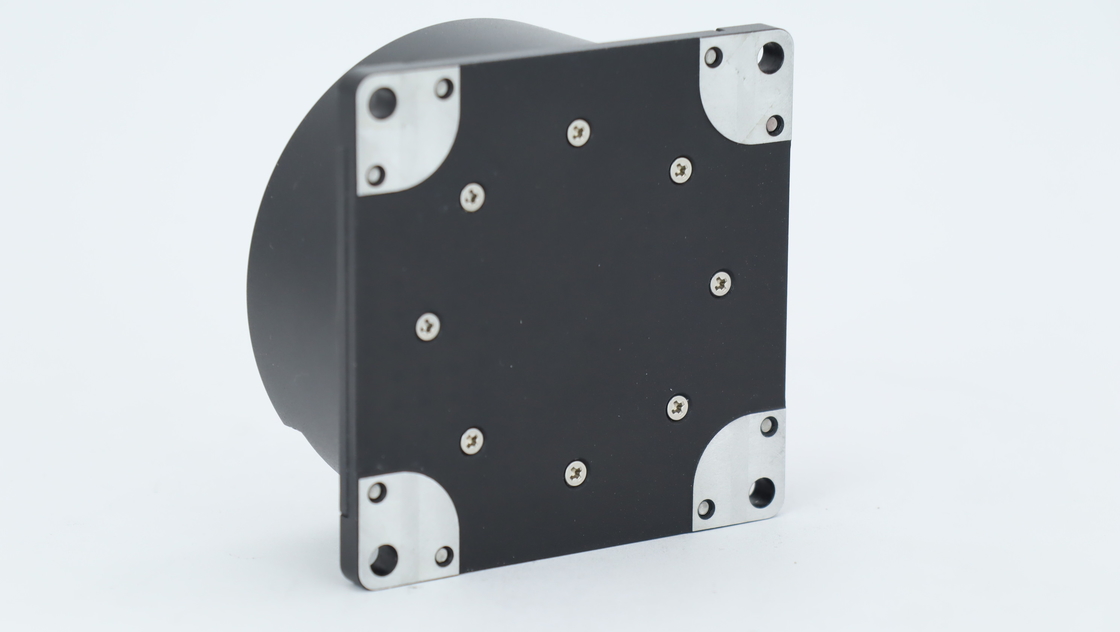

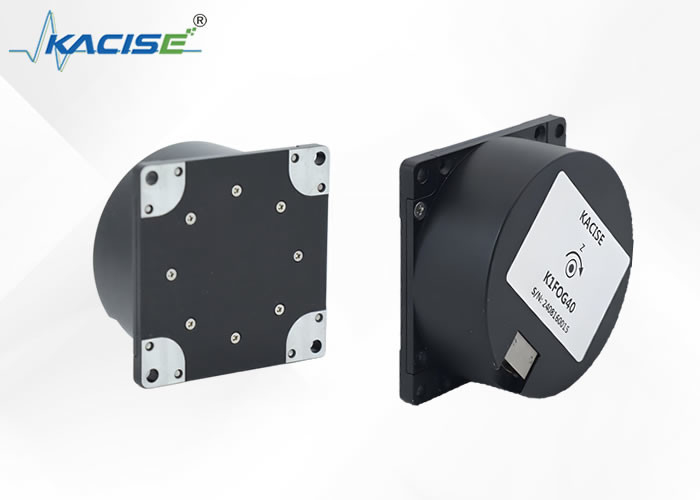

The product on offer is a high-grade inertial angle rate sensor, designed to accurately measure the rotational angular velocity experienced by a moving carrier. Its operation is rooted in the principles of the optical Sagnac effect that occurs along the sensor's sensitive axis. By leveraging a state-of-the-art digital closed-loop detection circuit, the device is capable of discerning the differences in the optical path of light beams that rotate in a clockwise direction - an effect induced by any external physical angular velocity.
To ensure maximum precision, the voltage signal resultant from the optical path is subject to both modulation and demodulation processes. This is paired with a robust closed-loop feedback and control system. Such meticulous design ensures the relentless and accurate detection of the angular velocity signal, thereby affording real-time monitoring capabilities. This is essential for applications demanding high fidelity with their sensory inputs.
At the heart of this product lies a dual-component system, comprising an optical angular velocity-sensitive unit alongside a signal detection mechanism. This integration not only furnishes the end-user with valuable uniaxial angle increment data but also provides key insights into the device’s internal temperature state. Such comprehensive diagnostics are beneficial for ensuring the sensor's optimal performance across different operating environments.
| Sn# | test item | H | M | L |
| 1 | Dimensions (mm) | 70×70×32 | 70×70×32 | 70×70×32 |
| 2 | start time (s) | 5 | 5 | 5 |
| 3 | Bias drift (°) / h (10s and 100s smoothing, fix temperature) |
≤0.03(10s) ≤0.01(100s) |
≤0.05 | ≤0.3 |
| 4 | Bias drift (°) / h (10s smoothing) -45~ + 70℃ | ≤0.1 | ≤0.15 | ≤0.5 |
| 5 | Bias repeatability (°) / h | ≤0.03 | ≤0.05 | ≤0.3 |
| 6 | Random walk coefficient(º)/h1/2 | ≤0.005 | ≤0.01 | ≤0.02 |
| 7 | Scale factor non-linearity (ppm) | ≤10 | ≤20 | ≤50 |
| 8 | Scale factor repeatability (ppm) | ≤10 | ≤20 | ≤50 |
| 9 | Operate temperature (℃) | -40～+70 | -40～+70 | -40～+70 |
| 10 | Storage temperature of (℃) | -45～+80 | -45～+80 | -45～+80 |
| 11 | Dynamic range (°) / s | ±500 | ±500 | ±500 |
| 12 | Supply voltage (V) | ±5 | ±5 | ±5 |
| 13 | Steady-state power consumption (full temperature) (W) | <4 | <4 | <4 |
| 14 | weight (g) | <290 | <290 | <290 |
Our products are engineered to cater to a broad range of applications in various industries. They are specifically designed to enhance performance and precision across different sectors.
These are just a few examples of the vast possibilities our products enable. They are tailored to meet the high-quality demands of modern technology and industry standards.
Our Electronic Gyroscope Sensor is designed for precision and reliability. To ensure the best performance of your product, we offer comprehensive technical support and services. Here's a brief overview of the support services available for your Electronic Gyroscope Sensor:
Product Documentation: We provide a detailed user manual and installation guide with every purchase. These documents are also available for download from our product support website. They include step-by-step instructions, technical specifications, and troubleshooting tips to help you get the most out of your gyroscope sensor.
Firmware Updates: Keep your sensor up-to-date with the latest firmware, which includes enhancements and bug fixes that improve the functionality and longevity of your device. Visit our support site to check for the latest firmware version and update instructions.
FAQs and Troubleshooting: Our support site offers an extensive list of Frequently Asked Questions (FAQs) that provide quick answers to common issues. If you encounter a problem, you can also access our troubleshooting guide for step-by-step solutions.
Technical Support Forums: Join our community forums to connect with other users and industry experts. Here, you can share experiences, ask questions, and find solutions to more complex issues. Our technical staff also monitors these forums and provides additional support when needed.
Email Support: For direct assistance, you can reach out to our technical support team via email. Our trained professionals are ready to help you with any technical issue you may encounter. Please describe your issue in detail, and include your product model and serial number in your message for faster service.
Warranty Service: Our Electronic Gyroscope Sensor comes with a standard manufacturer's warranty covering defects in materials and workmanship. If you believe your sensor is not functioning correctly due to a manufacturing defect, please contact us to learn more about our warranty service and return process.
We are committed to providing exceptional support and services to ensure your satisfaction with our Electronic Gyroscope Sensor. Our team is dedicated to helping you maximize the performance and lifespan of your product.
Product Packaging for Electronic Gyroscope Sensor:
The Electronic Gyroscope Sensor is securely packaged in a static-resistant bag to prevent electrostatic discharge damage during handling. The sensor is then placed within a custom-molded foam insert that fits snugly within a durable cardboard box, ensuring maximum protection against physical shocks during transit. The box is sealed with tamper-evident security tape, and the exterior is clearly labeled with the product name, handling instructions, and any necessary warning symbols.
Shipping Information for Electronic Gyroscope Sensor:
Our Electronic Gyroscope Sensors are shipped via a trusted courier to ensure timely and safe delivery. Each package is assigned a unique tracking number, which will be provided to you upon dispatch, allowing for real-time tracking of your shipment. The sensors are shipped with insurance coverage against loss or damage during transit. Standard shipping typically takes 3-5 business days, depending on the destination. Expedited shipping options are available upon request. Please handle the package with care upon its arrival, and inspect the product immediately for any signs of mishandling.
