Place of Origin:
China (Mainland)
Brand Name:
Kacise
Certification:
certificate of explosion-proof, CE
Model Number:
K1FOG40

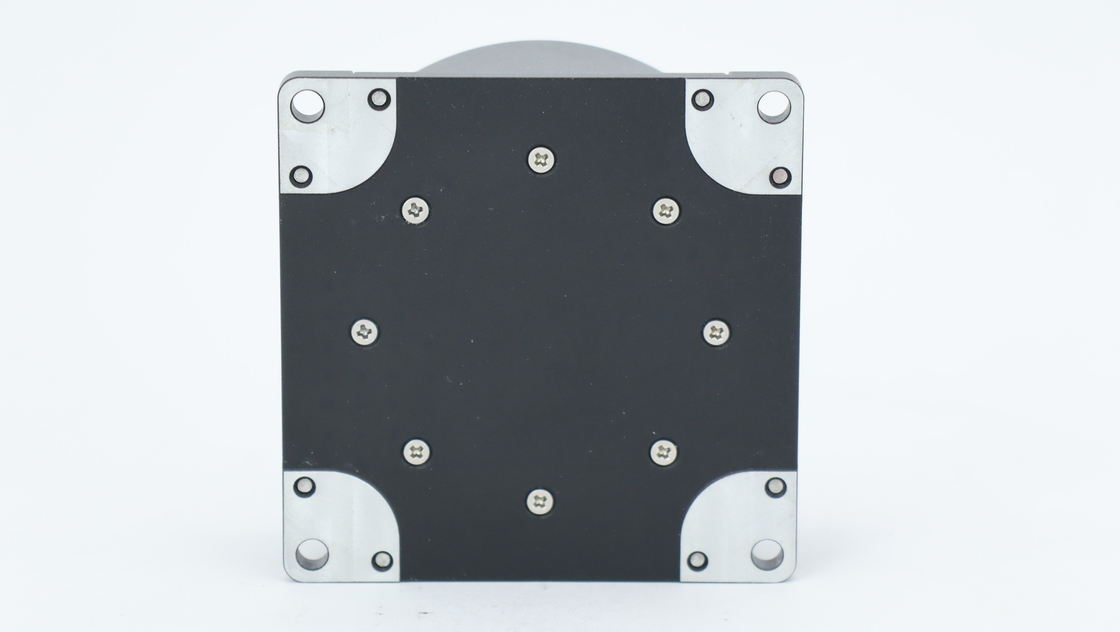

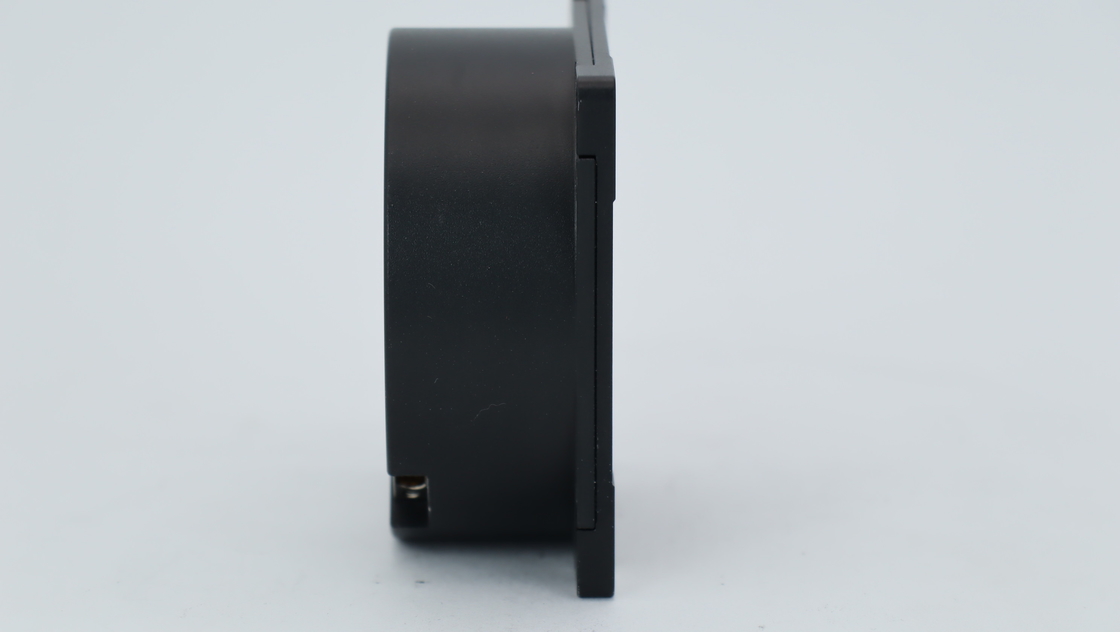

The product featured here is designed to accurately measure rotational angular velocity. Utilizing the optical Sagnac effect, it captures the motion of the carrier along its sensitivity axis. At the core of this technology lies an advanced digital closed-loop detection circuit. This sophisticated component is key to discerning the optical path variation instigated by the external angular velocity. Specifically, it modulates and demodulates the voltage signal associated with the optical path.
To secure a consistent and reliable measure of angular velocity, this sensor incorporates a closed-loop feedback system. This innovative approach ensures not only the accurate detection of real-time angular velocity signals but also their meticulous control. By doing so, the device guarantees precision in performance and response.
Divided into two primary components, the product boasts an optical angular velocity sensitive unit alongside a signal detection mechanism. Its capabilities include delivering information on both the uniaxial angle increment and the sensor's internal temperature. These functions underline the sensor's suitability for a wide range of applications that demand precise angular movement detection and monitoring.
| Sn# | test item | H | M | L |
| 1 | Dimensions (mm) | 70×70×32 | 70×70×32 | 70×70×32 |
| 2 | start time (s) | 5 | 5 | 5 |
| 3 | Bias drift (°) / h (10s and 100s smoothing, fix temperature) |
≤0.03(10s) ≤0.01(100s) |
≤0.05 | ≤0.3 |
| 4 | Bias drift (°) / h (10s smoothing) -45~ + 70℃ | ≤0.1 | ≤0.15 | ≤0.5 |
| 5 | Bias repeatability (°) / h | ≤0.03 | ≤0.05 | ≤0.3 |
| 6 | Random walk coefficient(º)/h1/2 | ≤0.005 | ≤0.01 | ≤0.02 |
| 7 | Scale factor non-linearity (ppm) | ≤10 | ≤20 | ≤50 |
| 8 | Scale factor repeatability (ppm) | ≤10 | ≤20 | ≤50 |
| 9 | Operate temperature (℃) | -40～+70 | -40～+70 | -40～+70 |
| 10 | Storage temperature of (℃) | -45～+80 | -45～+80 | -45～+80 |
| 11 | Dynamic range (°) / s | ±500 | ±500 | ±500 |
| 12 | Supply voltage (V) | ±5 | ±5 | ±5 |
| 13 | Steady-state power consumption (full temperature) (W) | <4 | <4 | <4 |
| 14 | weight (g) | <290 | <290 | <290 |
Our products are designed with versatility in mind, to cater to a diverse range of industry requirements. They are primed for integration into systems that demand precision and reliability.
Specifically, they are an excellent fit for the photovoltaic industry and craning operations. Whether used in cranes or aerial work platforms, our solutions provide the necessary support for seamless operations.
Moreover, our products play a critical role in the navigation sector, enhancing inertial navigation and measurement systems. They contribute to the accuracy and stability needed in these complex fields.
The realm of optics and photography also benefits from our offerings. Photographic instruments and platform stabilization devices rely on our technology to maintain high-quality performance standards.
Lastly, the precision of our inertial measurement instruments makes them indispensable for other similar applications. Each product is crafted to deliver consistent results that our clients can trust.
Thank you for choosing our Electronic Gyroscope Sensor. Our product is designed to deliver precise rotational motion detection and is built with reliability in mind. To ensure that you get the most out of your sensor, we offer a comprehensive suite of technical support and services.
Our technical support includes an online knowledge base with detailed documentation and FAQs that can help you troubleshoot common issues. We also provide firmware updates and software tools to keep your sensor performing at its best. For more complex questions or issues, our technical support team is available to assist you through our dedicated customer support portal.
In addition to technical support, we offer calibration services to help maintain the accuracy of your gyroscope sensor over time. Our state-of-the-art facilities are equipped to provide factory calibration and certifications to meet industry standards.
We also provide training services for individuals and teams looking to enhance their understanding and skills in working with our gyroscope sensors. Our training programs cover product features, best practices for integration, and advanced troubleshooting techniques.
For customers who require a higher level of support, we offer customized service packages that include extended warranties, on-site support, and rapid replacement services to minimize downtime.
Our commitment to customer satisfaction ensures that you have access to the support and services you need to keep your operations running smoothly. We are dedicated to providing you with the assistance necessary to fully leverage the capabilities of our Electronic Gyroscope Sensor.
The Electronic Gyroscope Sensor is securely encased in anti-static packaging to ensure the integrity of the sensitive components. Each unit is individually packed in a custom-fit foam insert that cradles the sensor, providing shock absorption during transit. The foam is then placed inside a durable cardboard box designed to withstand the rigors of shipping.
For added protection, the boxed sensor is sealed in a waterproof plastic wrap that guards against moisture and environmental damage. This wrap is also tamper-evident, ensuring that the product reaches you without interference.
Prior to dispatch, each package is labeled with handling instructions and the necessary shipping information, including a barcode for tracking during delivery. We use reputable courier services to ensure timely and safe delivery of your Electronic Gyroscope Sensor to your preferred destination. Shipping options with insurance are available upon request to provide additional security and peace of mind.
