Place of Origin:
China (Mainland)
Brand Name:
Kacise
Certification:
certificate of explosion-proof, CE
Model Number:
K1FOG40

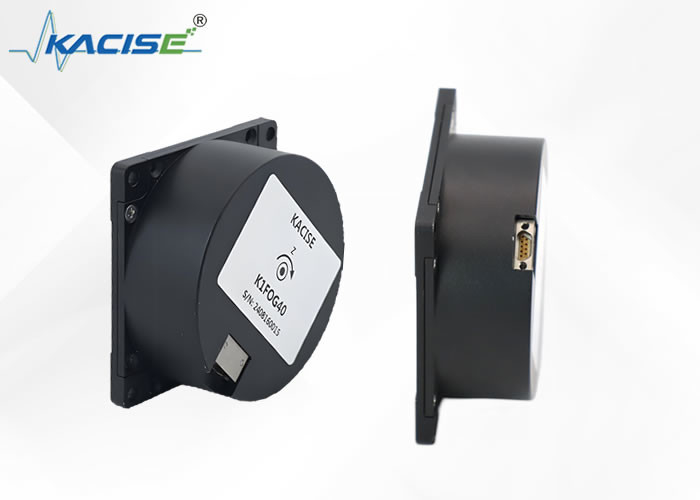

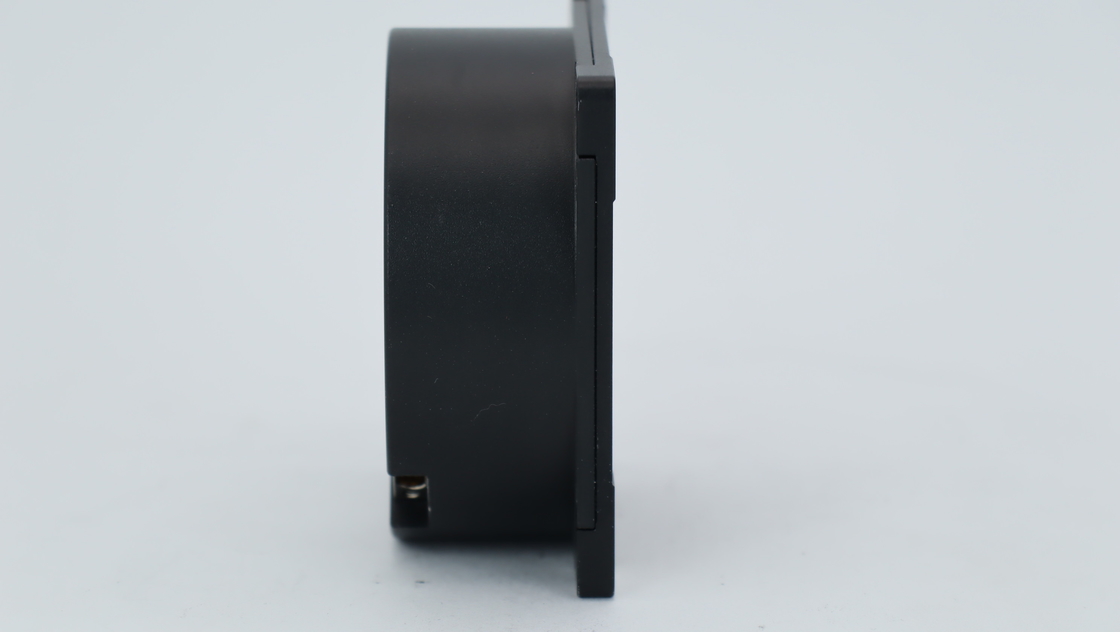

The product presented is an inertial angle rate sensor that utilizes the optical Sagnac effect to accurately measure the rotational angular velocity experienced by a carrier along its sensitive axis. By employing an advanced digital closed-loop detection circuit, it adeptly captures the optical path differences induced by the external physical angular velocity.
The detection circuit within the sensor modulates and demodulates the voltage signal derived from the optical path. This process, combined with closed-loop feedback and control, ensures that the angular velocity signal is detected in real-time with precision.
Comprising two integral components, the optical angular velocity sensitive unit and the signal detection module , this product offers vital information on uniaxial angle increments. Additionally, it has the capability to provide data regarding the internal temperature, enhancing its utility and reliability.
| Sn# | test item | H | M | L |
| 1 | Dimensions (mm) | 70×70×32 | 70×70×32 | 70×70×32 |
| 2 | start time (s) | 5 | 5 | 5 |
| 3 | Bias drift (°) / h (10s and 100s smoothing, fix temperature) |
≤0.03(10s) ≤0.01(100s) |
≤0.05 | ≤0.3 |
| 4 | Bias drift (°) / h (10s smoothing) -45~ + 70℃ | ≤0.1 | ≤0.15 | ≤0.5 |
| 5 | Bias repeatability (°) / h | ≤0.03 | ≤0.05 | ≤0.3 |
| 6 | Random walk coefficient(º)/h1/2 | ≤0.005 | ≤0.01 | ≤0.02 |
| 7 | Scale factor non-linearity (ppm) | ≤10 | ≤20 | ≤50 |
| 8 | Scale factor repeatability (ppm) | ≤10 | ≤20 | ≤50 |
| 9 | Operate temperature (℃) | -40～+70 | -40～+70 | -40～+70 |
| 10 | Storage temperature of (℃) | -45～+80 | -45～+80 | -45～+80 |
| 11 | Dynamic range (°) / s | ±500 | ±500 | ±500 |
| 12 | Supply voltage (V) | ±5 | ±5 | ±5 |
| 13 | Steady-state power consumption (full temperature) (W) | <4 | <4 | <4 |
| 14 | weight (g) | <290 | <290 | <290 |
The range of products we offer primarily serves a broad spectrum of industrial and technological applications. These advanced products are impeccably suited for use in systems and devices that operate within the following areas:
Welcome to the Product Technical Support and Services for the Electronic Gyroscope Sensor. Our dedicated team is here to assist you with any technical issues or questions you may have regarding the operation, integration, and troubleshooting of your sensor.
To ensure you get the most out of your Electronic Gyroscope Sensor, we offer a comprehensive range of services:
Technical Documentation: Access detailed product manuals, installation guides, and specifications to help you understand the functionality and capabilities of your sensor.
FAQs and Knowledge Base: Find quick answers to common questions and explore our knowledge base for troubleshooting tips and best practices for sensor usage.
Firmware Updates: Keep your sensor up-to-date with the latest firmware versions to ensure optimal performance and access to new features.
Product Training: Our expert trainers provide online and in-person workshops to help you and your team get familiar with the sensor and learn how to integrate it effectively into your projects.
Technical Support: If you encounter any technical difficulties or require assistance, our support team is available to provide expert advice and solutions. Please refer to our contact page for how to reach us.
Repair Services: In the unlikely event of a fault, we offer repair services to get your sensor back in working condition. Contact our support team for instructions on how to proceed with repairs.
Our goal is to provide you with the support you need to ensure your Electronic Gyroscope Sensor operates reliably and meets your application requirements. We are committed to delivering high-quality support and services to enhance your experience with our product.
Product Packaging for Electronic Gyroscope Sensor:
The Electronic Gyroscope Sensor is securely encased in a high-quality anti-static bag to prevent electrostatic discharge damage. The sensor is then cushioned with foam padding to absorb shock and vibrations during transport. The padded sensor is placed in a sturdy cardboard box designed to fit the product precisely, minimizing movement and potential damage. The box is sealed with tamper-evident security tape, ensuring the product's integrity upon arrival.
Shipping Information for Electronic Gyroscope Sensor:
The packaged Electronic Gyroscope Sensor is shipped in a weather-resistant outer container to protect against environmental elements during transit. The shipping label includes a tracking number for real-time monitoring, and the package is insured for its full value to provide peace of mind. We use reliable courier services to ensure timely and safe delivery to your destination. Please inspect the package upon arrival and report any signs of damage immediately for prompt resolution.
