| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSFG-70 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Scale Factor Repeatability: | ≤10 (ppm) | Dimensions: | 70×70×32 (mm) |
|---|---|---|---|
| Random Walk Coefficient: | ≤0.005(º/h1/2) | Steady-state Power Consumption (full Temperature): | <4 (W) |
| Scale Factor Non-linearity: | ≤10 (ppm) | Bias Repeatability: | ≤0.03 (°/ H) |
| Supply Voltage: | +5(V) | Operate Temperature: | -40～+70 (℃) |
| High Light: | oil drilling platforms gyroscopes,oil drilling platforms Fiber optic gyroscopes,10 ppm Scale factor repeatability gyroscopes |
||

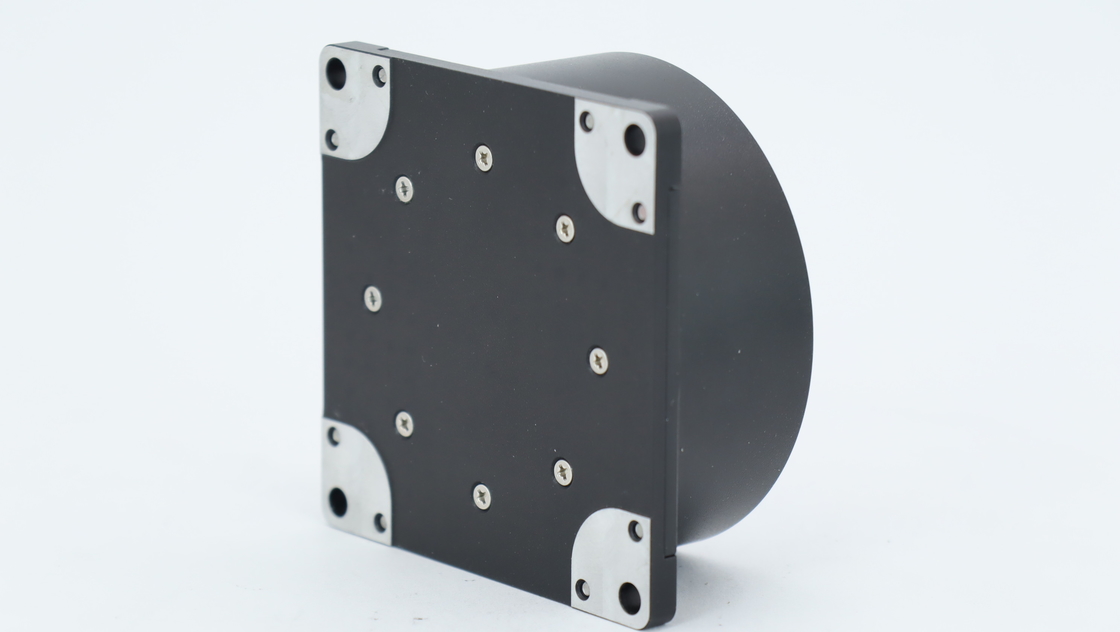

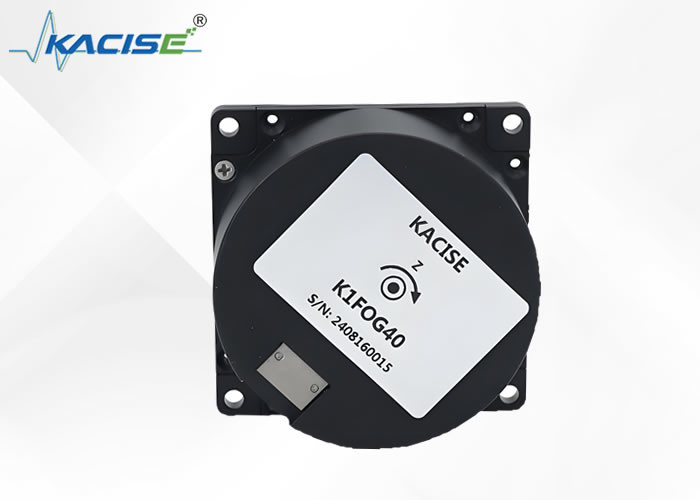

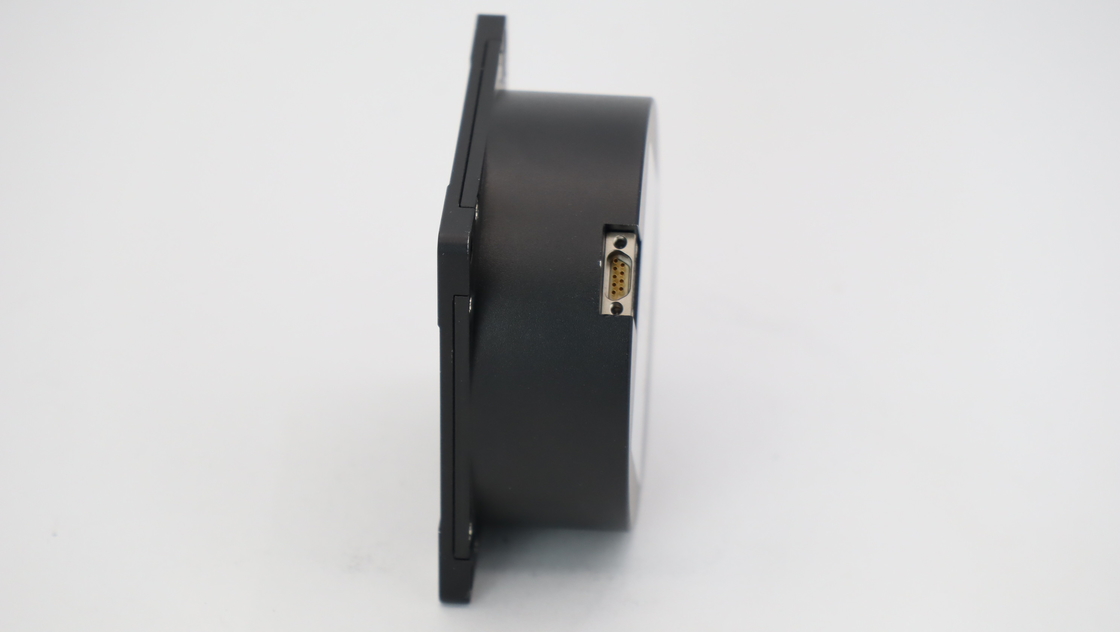

Our cutting-edge product is an inertial angle rate sensor that operates on the principles of the optical Sagnac effect . It is designed primarily to measure the rotational angular velocity of various carriers. The measurements are taken along the axis that is sensitive to the sensor's orientation.
The core functionality involves a digital closed-loop detection circuit . This sophisticated circuitry actively extracts the difference in optical path length of the clockwise light. The differentiation is brought about as a result of the carrier's physical angular velocity. Consequent to this, the voltage signal associated with the optical path is carefully modulated and demodulated.
Furthermore, a robust system of closed-loop feedback and control is implemented within the device. This system is crucial for accomplishing the goal of real-time angular velocity signal detection , thereby offering reliable and accurate performance in dynamic environments.
The sensor is composed of two interconnected parts. One is the optical angular velocity sensitive unit , and the other is the signal detection module . Together, they provide valuable data. The sensor is capable of delivering precise information regarding the uniaxial angle increment . Additionally, it monitors and reports on the internal temperature of the device, which can be crucial for specific operational conditions.
| Sn# | test item | H | M | L |
| 1 | Dimensions (mm) | 70×70×32 | 70×70×32 | 70×70×32 |
| 2 | start time (s) | 5 | 5 | 5 |
| 3 | Bias drift (°) / h (10s and 100s smoothing, fix temperature) |
≤0.03(10s) ≤0.01(100s) |
≤0.05 | ≤0.3 |
| 4 | Bias drift (°) / h (10s smoothing) -45~ + 70℃ | ≤0.1 | ≤0.15 | ≤0.5 |
| 5 | Bias repeatability (°) / h | ≤0.03 | ≤0.05 | ≤0.3 |
| 6 | Random walk coefficient(º)/h1/2 | ≤0.005 | ≤0.01 | ≤0.02 |
| 7 | Scale factor non-linearity (ppm) | ≤10 | ≤20 | ≤50 |
| 8 | Scale factor repeatability (ppm) | ≤10 | ≤20 | ≤50 |
| 9 | Operate temperature (℃) | -40～+70 | -40～+70 | -40～+70 |
| 10 | Storage temperature of (℃) | -45～+80 | -45～+80 | -45～+80 |
| 11 | Dynamic range (°) / s | ±500 | ±500 | ±500 |
| 12 | Supply voltage (V) | ±5 | ±5 | ±5 |
| 13 | Steady-state power consumption (full temperature) (W) | <4 | <4 | <4 |
| 14 | weight (g) | <290 | <290 | <290 |
Our versatile range of products finds extensive use in a variety of fields and equipments. These are primarily designed and optimized for the advanced technological necessities of industries that rely on precision and stability.
The practical applications include, but are not limited to:
The Electronic Gyroscope Sensor is equipped with state-of-the-art technology designed for stability and precision in various applications. Our product technical support and services are dedicated to providing you with the assistance you need to integrate and maintain the sensor's performance in your projects.
Our Technical Support Services include:
In addition to technical support, we offer a range of services to enhance your experience with the Electronic Gyroscope Sensor:
We are committed to providing exceptional support and services to ensure that your Electronic Gyroscope Sensor operates at peak performance. Our dedicated team is ready to assist you with any technical queries or requirements you may have regarding the product.
The Electronic Gyroscope Sensor is packaged with utmost care to ensure it reaches you in perfect working condition. The sensor is first enclosed in a static-free bag to prevent electrostatic discharge damage. It is then cushioned with high-quality, impact-absorbing foam that conforms to its shape, providing added protection against mechanical shock and vibration during transit. The foam is placed within a sturdy, corrugated cardboard box that is appropriately sized for the sensor's dimensions, ensuring minimal movement while in transit.
For shipping, the boxed sensor is sealed with heavy-duty packing tape and labeled with "Fragile" and "Handle with Care" stickers to alert carriers of the delicate contents. The package is then dispatched using a trusted courier service that specializes in electronics delivery, offering tracking capabilities and insurance options for added security. Upon shipment, you will receive a tracking number to monitor your Electronic Gyroscope Sensor's journey to your destination.
