| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSFG-70 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Storage Temperature: | -45～+80(℃) | Bias Drift (10s Smooth, Fix Temperature): | ≤0.03(°/ H) |
|---|---|---|---|
| Weight: | ＜290 (g) | Steady-state Power Consumption (full Temperature): | <4 (W) |
| Start Time: | 5 (s) | Scale Factor Repeatability: | ≤10 (ppm) |
| Random Walk Coefficient: | ≤0.005(º/h1/2) | Dimensions: | 70×70×32 (mm) |
| High Light: | 5s Start Time FOG Sensor,Motion Sensing FOG Sensor,Inertial Angle Rate Sensor |
||

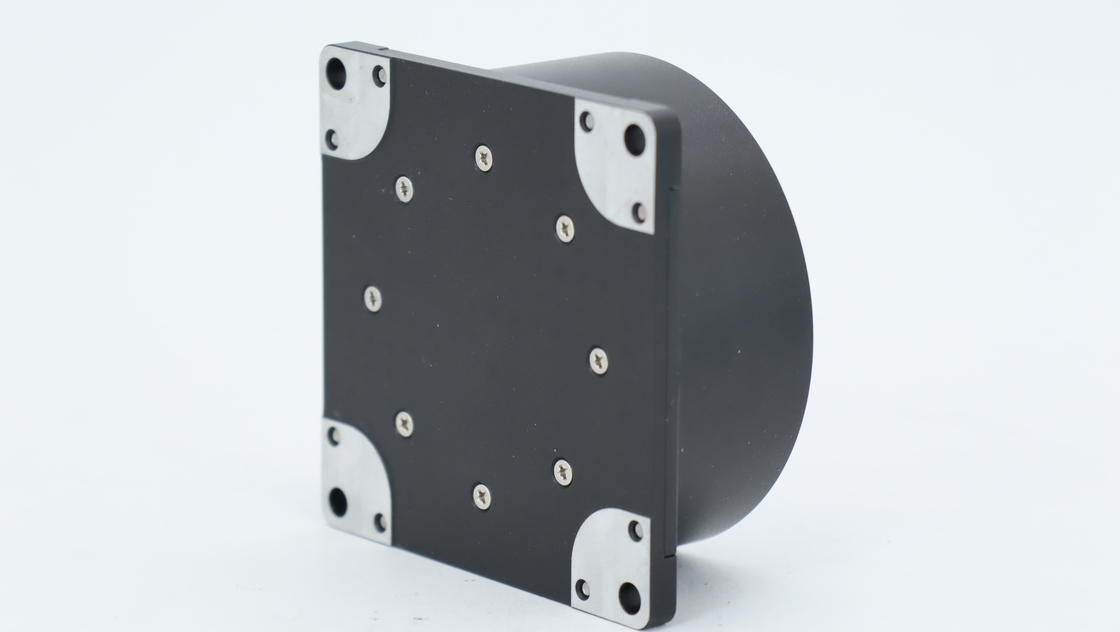

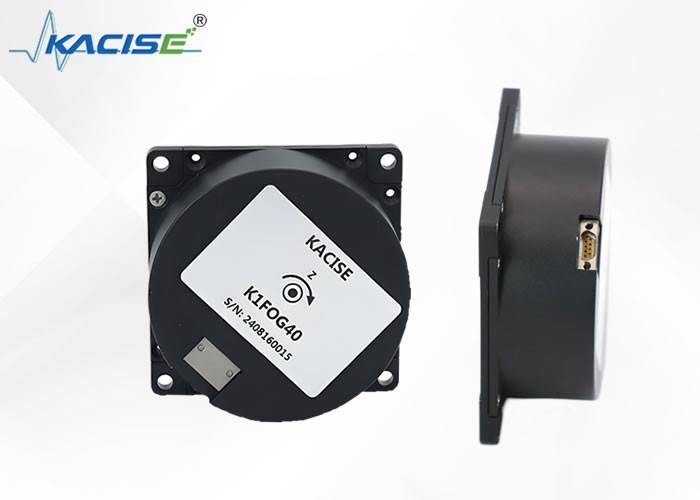

The product in question is an advanced inertial angle rate sensor that employs the optical Sagnac effect as its foundational principle. Designed to measure the rotational angular velocity of an object along its sensitive axis, this sensor operates seamlessly to provide accurate readings essential for various applications.
At the heart of its operation lies a digital closed-loop detection circuit. This innovative feature is responsible for discerning the optical path difference induced by the external physical angular speed. Specifically, it accomplishes this by accurately evaluating the alterations in clockwise light propagation within the system. Following the collection of this data, the sensor undergoes a process of modulation and demodulation of the voltage signal correlating to the optical path signal. Furthermore, it employs a sophisticated closed-loop feedback and control system. This integral mechanism is vital, as it allows for the real-time detection of the angular velocity signal, ensuring the prompt and precise assessment of the dynamics being observed.
The product is ingeniously divided into two main components: the optical angular velocity sensitive unit and the signal detection module. The optical angular velocity sensitive unit is the core element designed to capture uniaxial angle increment information with high fidelity. Concurrently, the signal detection module contributes substantially by providing valuable internal temperature data. Together, these parts constitute a comprehensive system, capable of delivering a level of performance that meets the demanding requirements of contemporary rotational velocity measurements.
| Sn# | test item | H | M | L |
| 1 | Dimensions (mm) | 70×70×32 | 70×70×32 | 70×70×32 |
| 2 | start time (s) | 5 | 5 | 5 |
| 3 | Bias drift (°) / h (10s and 100s smoothing, fix temperature) |
≤0.03(10s) ≤0.01(100s) |
≤0.05 | ≤0.3 |
| 4 | Bias drift (°) / h (10s smoothing) -45~ + 70℃ | ≤0.1 | ≤0.15 | ≤0.5 |
| 5 | Bias repeatability (°) / h | ≤0.03 | ≤0.05 | ≤0.3 |
| 6 | Random walk coefficient(º)/h1/2 | ≤0.005 | ≤0.01 | ≤0.02 |
| 7 | Scale factor non-linearity (ppm) | ≤10 | ≤20 | ≤50 |
| 8 | Scale factor repeatability (ppm) | ≤10 | ≤20 | ≤50 |
| 9 | Operate temperature (℃) | -40～+70 | -40～+70 | -40～+70 |
| 10 | Storage temperature of (℃) | -45～+80 | -45～+80 | -45～+80 |
| 11 | Dynamic range (°) / s | ±500 | ±500 | ±500 |
| 12 | Supply voltage (V) | ±5 | ±5 | ±5 |
| 13 | Steady-state power consumption (full temperature) (W) | <4 | <4 | <4 |
| 14 | weight (g) | <290 | <290 | <290 |
The range of applications for our products is diverse and extends across multiple fields. Notably, they are designed to integrate seamlessly with a variety of systems and devices. Below is a detailed breakdown of their potential uses:
The FOG Gyroscope Sensor is a state-of-the-art device designed for precise motion detection and stability control. Our product support and services are committed to providing customers with the necessary tools and assistance to ensure optimal performance and longevity of the sensor.
Technical Support:
Our dedicated team of technical support specialists is available to assist with any questions or concerns regarding the Electronic Gyroscope Sensor. We offer comprehensive troubleshooting assistance, guidance on product usage, and advice on best practices for integration and maintenance.
Firmware Updates:
We provide regular firmware updates to enhance the functionality of the Electronic Gyroscope Sensor and to introduce new features. Customers can download the latest firmware from our official product support web page.
Product Documentation:
Detailed product manuals, technical specifications, and installation guides are available for download. These documents provide valuable information to help users understand and effectively utilize the Electronic Gyroscope Sensor.
Warranty Service:
The Electronic Gyroscope Sensor comes with a standard warranty that covers defects in materials and workmanship. If you encounter any issues within the warranty period, please reach out to our support team for assessment and service options.
Repair Services:
In the event that your Electronic Gyroscope Sensor requires repair outside of the warranty period, we offer repair services at a reasonable cost. Our skilled technicians will diagnose and restore your sensor to its full functionality.
Online Resources:
We maintain a repository of FAQ, knowledge base articles, and how-to videos, which can be accessed online 24/7. These resources are designed to provide immediate assistance and to answer common questions about the Electronic Gyroscope Sensor.
Community Forum:
Join our community forum to connect with other users of the Electronic Gyroscope Sensor. Share experiences, solutions, and get advice from our active user community and product experts.
Customer Feedback:
We value customer feedback and continually strive to improve our products and services. Please feel free to share your product experiences and suggestions with us to help us serve you better.
Product Packaging:
The Electronic Gyroscope Sensor is securely enclosed in an anti-static bag to prevent electrostatic discharge damage. It is cushioned with foam padding to protect against shocks and vibrations during transit. The product is then placed in a sturdy, corrugated cardboard box designed to withstand the rigors of shipping. Each box is sealed with tamper-evident tape to ensure the integrity of the product upon delivery.
Shipping:
Our Electronic Gyroscope Sensor is shipped via a trusted courier service to ensure timely and safe delivery. We provide tracking information for every shipment, allowing customers to monitor their package's progress. The product is insured during transit to protect against loss or damage. Customers are required to inspect the package upon arrival and report any issues within 48 hours. We strive to dispatch orders within 24 hours of receiving payment, and shipping times vary depending on the destination.
