Place of Origin: | China (Mainland) |
Brand Name: | Kacise |
Certification: | certificate of explosion-proof, CE |
Model Number: | KS3ARG01D |
Minimum Order Quantity: | 1pcs |
---|---|
Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
Delivery Time: | 5-8 working days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 1000 Pieces per Week |
Range: | ±300(options)(°/s) | Nonlinearity: | ≤0.1(%F.R) |
---|---|---|---|
Starting Time: | ≤1(s) | Data Update Rate (optional): | 400(Hz@460800) |
Electrical Interface: | RS422 | Cross Coupling: | ≤1(%) |
Power Supply: | 5V±5%(V) | Bias Repeatability: | ≤0.15(deg/s) |
High Light: | Rugged gyroscope MEMS sensor,Precise Navigation gyroscope MEMS sensor,RS422 gyroscope MEMS sensor |

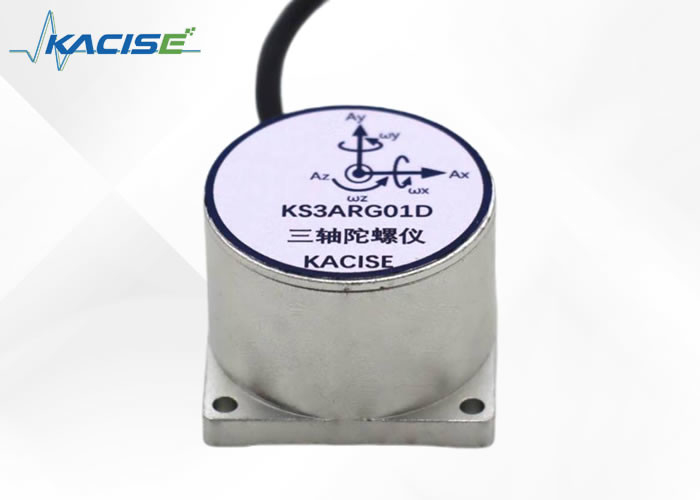

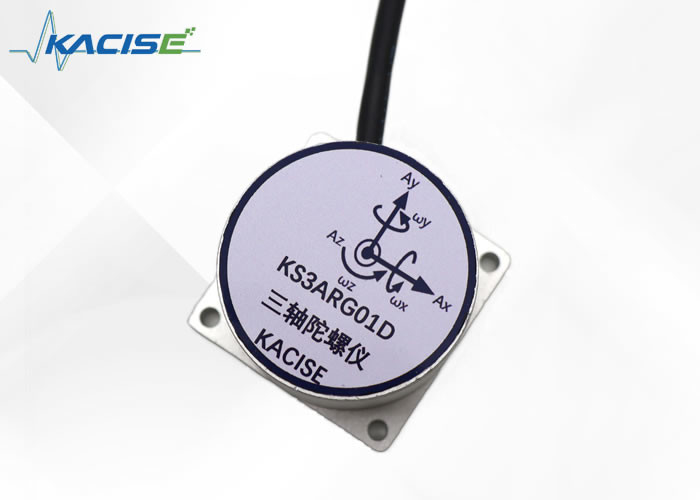

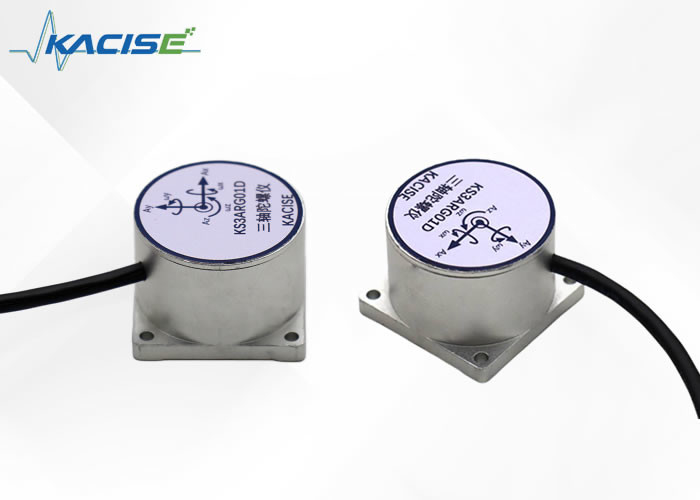

The KS3ARG01D represents a compact, high-performance three-axis digital gyroscope designed with versatility in mind. Boasting robust overload resistance, it serves a wide array of applications, including precise navigation and dynamic control measurement tasks for various weapons systems.
Our product line features advanced, stable, and reliable MEMS inertial sensors. These sensors are adept at capturing accurate angular velocity data from carriers in motion, even when operating under extreme environmental conditions.
● High stability
● High precision
● Analog and digital outputs are optional
● Wide range
● Fast start
Performance parameter | KS3ARG-01D | |
range(°/s) | ±300(options) | |
Bias stability(deg/h,allan deviation) | ≤12 | |
Bias repeatability(deg/s) | ≤0.15 | |
Nonlinearity(%F.R) | ≤0.1 | |
Resolution(deg/s) | ≤0.05 | |
Bandwidth(Hz) | ≥80 | |
Cross coupling(%) | ≤1 | |
Starting time(s) | ≤1 | |
Interface characteristic | Power supply(V) | 5V±5% |
Electrical interface | RS422 | |
Data update rate (optional) | 400(Hz@460800) | |
Operating environment | Operating temperature(°C) | -40~+85 |
Tolerated acceleration(g) | 10000(0.1ms) | |
Physical property
|
Size(mm) | Φ39.5×28.5 |
Weight(g) | ≤100 |
The KS3ARG01D is distinguished by its broad operating temperature spectrum, ensuring reliable performance across diverse environmental conditions. This makes it suitable for various applications where temperature fluctuations are a common challenge.
With its expansive bandwidth, the device caters to a multitude of operational demands, facilitating seamless functionality. The compact design of the KS3ARG01D allows for easy integration into systems where space is limited, without compromising on performance.
Another defining feature of the KS3ARG01D is its rapid initialization capability. This allows for quicker system readiness, which is critical in time-sensitive applications. Precision is paramount with the KS3ARG01D, offering high accuracy levels that are essential for critical applications.
The versatile nature of the KS3ARG01D renders it ideal for use in precision weapon guidance and control systems, where both speed and accuracy are crucial. It also serves as an integral component in the control systems of engineering machinery, ensuring operational efficiency and stability.
In situations requiring enhanced stability, such as on various platforms, the KS3ARG01D provides the necessary support to maintain consistent operation. The device is also well-suited for specialized applications such as pipeline inspection robots and underwater vehicles, where its small footprint and robust performance are particularly beneficial.
The Gyroscope Sensor is designed to provide precise measurement of angular rates with high stability and accuracy. Our product technical support and services are dedicated to ensuring that you can integrate and utilize the gyroscope sensor effectively in your applications.
Our technical support includes detailed product documentation, which covers the installation process, specifications, and usage instructions. The documentation also provides troubleshooting guidelines to help you resolve any issues you might encounter during the operation of the sensor.
Please refer to our product support page for detailed FAQs that cover common questions and solutions related to the Electronic Gyroscope Sensor. This resource is designed to provide you with quick and easy access to information that can help you troubleshoot minor issues on your own.
For continuous improvement of our support services, we welcome and appreciate any feedback regarding the performance of the Gyroscope Sensor and the support provided. Your input helps us to identify areas for enhancement and ensure we meet your expectations.
Our commitment to providing exceptional technical support and services is unwavering. We strive to ensure that you have all the resources necessary to achieve success with our Electronic Gyroscope Sensor.
The Gyroscope Sensor is meticulously packaged to ensure its safety and functionality upon delivery. The packaging consists of a static-free bag to prevent electrostatic discharge damage, surrounded by foam padding that fits snugly within a sturdy cardboard box. This box is then sealed with tamper-evident security tape to guarantee product integrity from our warehouse to your doorstep.
For shipping, we utilize reliable courier services that offer tracking and insurance options. The package is clearly labeled with fragile handling instructions to ensure careful transit. Upon dispatch, we provide you with a tracking number so you can monitor your shipment's progress until it arrives safely at your chosen destination.
