Product Description:

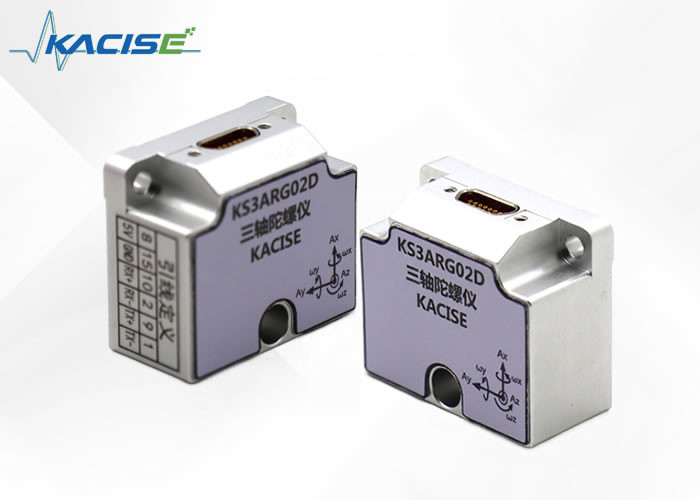

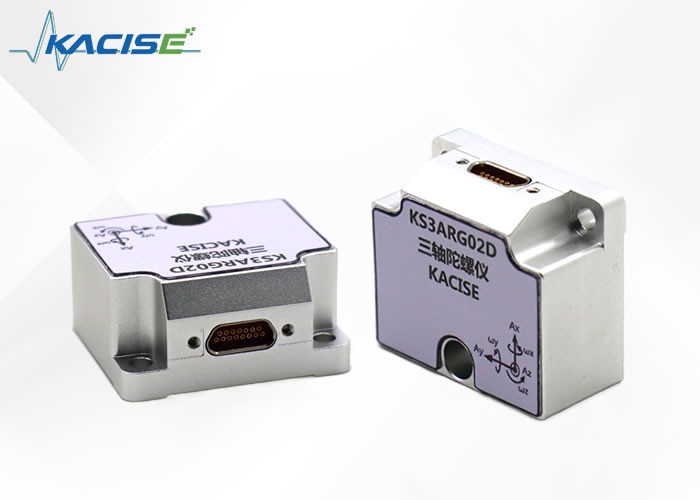

KS3ARG02D Series Solid State Angular Rate Sensor Overview
The KS3ARG02D series encompasses state-of-the-art solid state angular rate sensors, commonly referred to as gyroscopes. These devices are expertly engineered to measure the angular rate of rotation around a particular axis. The cornerstone of their technology is the adoption of micromechanical electronic systems, also known as MEMS technology. MEMS chips allow for the miniaturization and enhancement of sensor performance.
Manufacturing Excellence
The gyroscopes are produced using the sophisticated bipolar metal oxide semiconductor (BIMOS) technology. This advanced production process is coupled with a spherical grid arrangement, a technique that involves precision welding of current carriers. These manufacturing methods contribute to both the high reliability and the exceptional ruggedness of the sensor's package.
Interactive Functionalities
One of the standout features of the KS3ARG02D series is its Self-Test function. This built-in capability facilitates on-board Built-In Test (BIT) procedures, allowing for real-time in-machine diagnostics without the need for external equipment. This ensures operational confidence and ease of maintenance.
Advanced Compensation and Correction Features
The products within this series come equipped with a range of sophisticated capabilities designed to enhance performance under varying conditions. These include zero bias calibration to maintain accuracy, temperature drift compensation to ensure stability across temperature changes, and non-linear correction for enhanced precision. With these features, the sensors deliver exceptional measurement accuracy even in challenging environments.
Robust Measurement Capabilities
The gyros boast a broad measurement range and wide bandwidth, making them suitable for a wide array of applications. Furthermore, thanks to their extensive operating temperature range, compact size, lightweight design, and high resistance to impact acceleration, these sensors are incredibly versatile and can withstand harsh operating conditions.
Features:
The product has zero bias calibration, temperature drift compensation, wide measurement range, wide bandwidth, non-linear correction and other functions, wide operating temperature range, small size, light weight, high impact acceleration resistance.
Dimensions
Technical Parameters:
| Performance parameter |
KS3ARG02D |
| gyro |
range
(deg/s)
|
±500(triaxial) |
| Zero-bias(deg/s) |
≤±0.1(In 500°/s) |
| Zero-bias stability(deg/h) |
≤0.5allan deviation |
| Zero-bias repeatability(deg/s) |
≤0.05 |
| nonlinearity(%FR) |
≤0.05 |
| Random walk(°/√h) |
0.15
|
| Mean time between failures(Kh MTBF) |
10 |
| Interface characteristic |
power(V) |
DC5 |
| power dissipation(W @5V DC) |
≤1 |
| electrical interface |
RS422 |
| data updating rate(can set) |
2000(Hz@460800) |
| operating environment |
operating temperature(°C) |
-40~+80 |
| storage temperature(°C) |
-55~+85 |
| Vibration(g @ 20~2000 Hz) |
6.06 |
| Shock(g , 0.1 ms, 1/2 Sine) |
5000 |
| physical property |
Size(mm) |
45×39×20 |
| Weight(g) |
≤60 |
Applications:
The Kacise KS3ARG02D is a state-of-the-art electronic gyroscope sensor, meticulously crafted in the Mainland of China. This advanced sensor is designed to provide high-precision rotational motion detection and is ideal for a myriad of applications where accurate angular measurements are critical. Each Kacise sensor is backed by a certificate of explosion-proof and CE certification, ensuring adherence to the highest safety and quality standards. With a minimum order quantity of just 1pcs, this sensor is accessible to a wide range of customers, from research institutions to industrial enterprises.
One of the hallmark features of the KS3ARG02D model is its small size, allowing for seamless integration into a variety of compact systems without compromising performance. The sensor's power dissipation is impressively low at ≤1(W @5V DC), making it an energy-efficient choice for continuous operation. Additionally, the nonlinearity of ≤0.05(%FR) and a random walk of 0.15(°/√h) ensure that measurements are not only precise but also consistent over time.
The Kacise KS3ARG02D is particularly well-suited for applications requiring antenna stability, where maintaining a precise orientation is paramount. Its robust design, featuring a vibration tolerance of 6.06(g @ 20~2000 Hz), along with a significant mean time between failures of 10(Kh MTBF), ensures reliability even in the most demanding environments. This makes it an excellent choice for aerospace, maritime, and communication systems where equipment must perform accurately despite external disturbances.
Each KS3ARG02D is equipped with a zero bias calibration feature, which is essential for applications that cannot tolerate angular drift over time. This calibration guarantees that the sensor maintains its accuracy, providing dependable data for critical applications such as robotics, automotive navigation systems, and stabilization platforms.
Understanding the needs of our clients, Kacise offers expedient delivery times of 5-8 working days, with each unit having its individual box. Packaging details are meticulously attended to, with all boxes packed in standard packages, and customization to meet customers' requests is also available. Our payment terms include T/T, Western Union, and MoneyGram, offering flexibility and convenience. With a supply ability of 1000 pieces per week, Kacise is committed to meeting the demands of our diverse clientele promptly.
In summary, the Kacise KS3ARG02D electronic gyroscope sensor stands out for its small size, energy efficiency, and high precision, complemented by the zero bias calibration feature. Its rugged design and quick delivery make it an ideal choice for various industrial and research applications where reliability and accuracy are paramount. Kacise's commitment to quality and customer satisfaction is evident in every aspect of the KS3ARG02D, from its manufacturing in China to its comprehensive certification and customer-oriented service.
Support and Services:
Welcome to the Product Technical Support and Services page for the Electronic Gyroscope Sensor. Our dedicated team is committed to providing you with the highest quality support to ensure your device functions at its best. We offer a wide range of services to help you get the most out of your sensor, including:
User Manuals and Documentation: Access comprehensive user manuals, data sheets, and detailed product documentation to understand your sensor's capabilities fully and optimize its use.
FAQs and Knowledge Base: Our extensive FAQs and knowledge base contain answers to common questions and provide valuable information to troubleshoot issues quickly and independently.
Our commitment to excellence ensures that you receive the support you need when you need it. For any further assistance, please refer to our contact page for ways to get in touch with our support team.
Packing and Shipping:
Product Packaging: The Electronic Gyroscope Sensor is securely enclosed in an anti-static bag to prevent electrostatic discharge during handling. The bag is then cushioned within a custom-fit foam insert that provides additional shock absorption. The foam and sensor are placed in a sturdy, corrugated cardboard box that is designed to withstand the rigors of transit. Tamper-evident seals are applied to ensure the integrity of the product upon delivery.
Shipping: The packaged Electronic Gyroscope Sensor is shipped using a trusted courier service that offers tracking and delivery confirmation. The package is labeled with the appropriate handling instructions to ensure that it is transported in the correct orientation and kept away from potential hazards. Signature confirmation is required upon delivery to ensure that the product reaches the intended recipient securely. Customers will receive a tracking number to monitor their shipment's progress until it arrives safely at its destination.
