| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KS3ARG02D |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Electrical Interface: | RS422 | Range: | ±500(triaxial)(deg/s) |
|---|---|---|---|
| Shock: | 5000(g , 0.1 Ms, 1/2 Sine) | Mean Time Between Failures: | 10(Kh MTBF) |
| Nonlinearity: | ≤0.05(%FR) | Zero-bias: | ≤±0.1(In 500°/s)(deg/s) |
| Zero-bias Repeatability: | ≤0.05(deg/s) | Random Walk: | 0.15(°/√h) |
| Power Dissipation: | ≤1(W @5V DC) | ||
| High Light: | intelligent automobile Mems Gyroscope,ems Gyroscope For Intelligent Automobile,5V DC Mems Gyroscope |
||

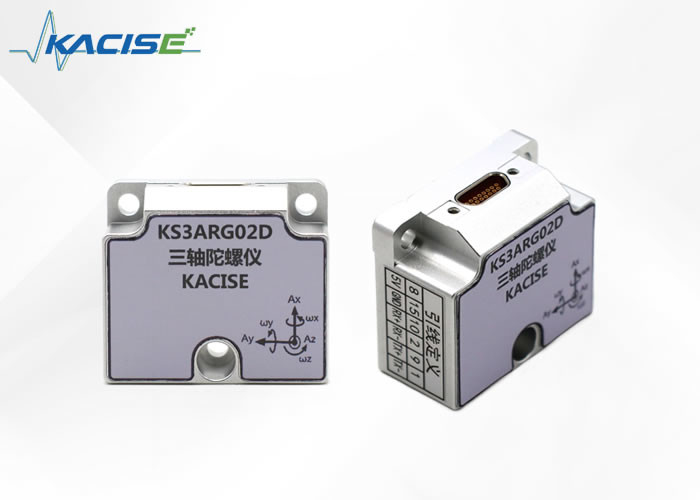

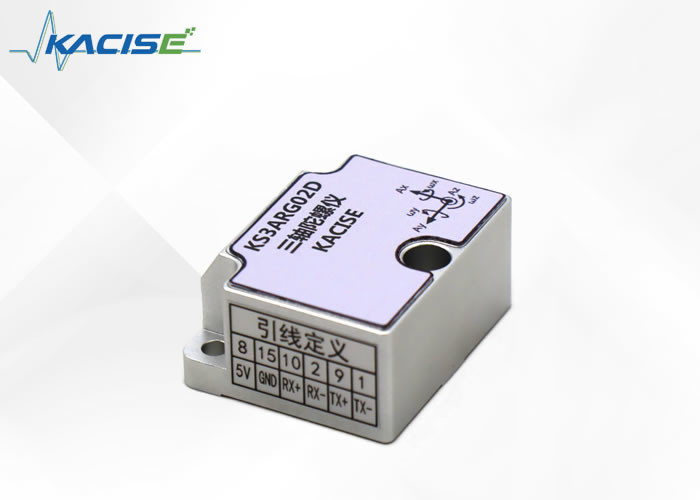

The KS3ARG02D series solid state angular rate sensor, commonly referred to as a gyro, is engineered to measure the angular rate with great precision. It incorporates advanced microelectromechanical system (MEMS) technology, ensuring cutting-edge performance and accuracy.
Renowned for its manufacturing, the sensor employs a sophisticated bipolar metal oxide semiconductor (BIMOS) technology during its production process. Additionally, it boasts an innovative spherical grid arrangement for the welding of current carriers, further enhancing its robust features.
Reliability is a hallmark of the KS3ARG02D series, thanks to its exceptionally durable packaging. An integrated Self-Test function enables this gyro to perform built-in tests (BIT), ensuring consistent in-device verification of performance.
Moreover, this versatile product provides numerous operational benefits, including zero bias calibration and temperature drift compensation. A broad measurement range, extensive bandwidth, and meticulous non-linear correction underline its sophistication. Other features include a wide operating temperature spectrum, a compact size for easy integration, a lightweight build for optimal performance, and a formidable resistance to high impact acceleration.
Dimensions
| Performance parameter | KS3ARG02D | |
| gyro |
range (deg/s) |
±500(triaxial) |
| Zero-bias(deg/s) | ≤±0.1(In 500°/s) | |
| Zero-bias stability(deg/h) | ≤0.5allan deviation | |
| Zero-bias repeatability(deg/s) | ≤0.05 | |
| nonlinearity(%FR) | ≤0.05 | |
| Random walk(°/√h) | 0.15 | |
| Mean time between failures(Kh MTBF) | 10 | |
| Interface characteristic | power(V) | DC5 |
| power dissipation(W @5V DC) | ≤1 | |
| electrical interface | RS422 | |
| data updating rate(can set) | 2000(Hz@460800) | |
| operating environment | operating temperature(°C) | -40~+80 |
| storage temperature(°C) | -55~+85 | |
| Vibration(g @ 20~2000 Hz) | 6.06 | |
| Shock(g , 0.1 ms, 1/2 Sine) | 5000 | |
| physical property | Size(mm) | 45×39×20 |
| Weight(g) | ≤60 | |
The Kacise KS3ARG02D electronic gyroscope sensor is a high-precision instrument designed for a variety of applications where accurate angular rate measurement is crucial. With its origin in China (Mainland) and backed by certifications such as the certificate of explosion-proof and CE, this product ensures reliability and quality in tough environments. Ideal for a minimum order of just 1 piece, Kacise offers flexibility for both small-scale projects and large volume requirements. Each unit is shipped within 5-8 working days in a carefully packed individual box, and larger orders can be accommodated with standard package options or packaging according to customer's requests.
With a robust supply capability of 1000 pieces per week, the KS3ARG02D caters to urgent and ongoing project demands. Transactions are seamless with payment terms that accept T/T, Western Union, and MoneyGram. The electronic gyroscope sensor ensures consistent performance with an electrical interface of RS422, an operating temperature range of -40 to +80(°C), and a weight of ≤60100 grams, making it suitable for both stationary and mobile applications.
The KS3ARG02D is characterized by its high impact acceleration resistance, making it an excellent choice for applications in challenging environments including robotics, where reliability and endurance are paramount. Its zero-bias of ≤±0.1 (In 500°/s) and vibration tolerance of 6.06g at 20~2000 Hz signifies its capability to deliver precise readings even under demanding conditions.
Robots, especially those operating in industrial, military, or exploration settings, benefit from the KS3ARG02D's wide measurement range and durability. Whether it's for navigation, stabilization, or motion control, this electronic gyroscope sensor provides the essential data for advanced robotic systems to operate effectively. The sensor's resistance to high impact acceleration is particularly beneficial for robots that may encounter abrupt movements or need to operate in rugged terrain.
Overall, the KS3ARG02D from Kacise is an exemplary electronic gyroscope sensor for applications requiring high precision, reliability, and a wide measurement range. Its suitability for various scenarios, including robotics, vehicle navigation, and aerospace systems, coupled with its robust design, makes it an indispensable component for advanced technological solutions.
Welcome to the Product Technical Support and Services page for the Electronic Gyroscope Sensor. Our dedicated team is committed to providing you with the highest quality support to ensure your device functions at its best. We offer a wide range of services to help you get the most out of your sensor, including:
User Manuals and Documentation: Access comprehensive user manuals, data sheets, and detailed product documentation to understand your sensor's capabilities fully and optimize its use.
FAQs and Knowledge Base: Our extensive FAQs and knowledge base contain answers to common questions and provide valuable information to troubleshoot issues quickly and independently.
Our commitment to excellence ensures that you receive the support you need when you need it. For any further assistance, please refer to our contact page for ways to get in touch with our support team.
The Electronic Gyroscope Sensor is securely packaged in an anti-static bag to prevent electrostatic discharge damage during handling. The bag is then placed in a custom-fitted foam insert within a sturdy cardboard box, ensuring the sensor is immobilized and protected from shocks and vibrations during transit.
Each box is sealed with tamper-evident tape and clearly labeled with handling instructions and the contents. The exterior of the box includes a detailed packing list, the item's serial number for traceability, and a barcode for efficient logistics handling.
For shipping, the boxed sensor is placed within a larger, durable shipping container with additional cushioning material to accommodate multiple units or to provide extra protection for long-distance transportation. The shipping container is sealed and labeled according to international shipping standards, with all necessary documentation for customs clearance and compliance with electronic goods transport regulations.
