| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KS3ARG02D |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Power: | DC5(V) | Mean Time Between Failures: | 10(Kh MTBF) |
|---|---|---|---|
| Nonlinearity: | ≤0.05(%FR) | Vibration: | 6.06(g @ 20~2000 Hz) |
| Data Updating Rate(can Set): | 2000(Hz@460800) | Range: | ±500(triaxial)(deg/s) |
| Shock: | 5000(g , 0.1 Ms, 1/2 Sine) | Zero-bias: | ≤±0.1(In 500°/s)(deg/s) |
| High Light: | Industrial Mems gyroscope,3 axis Mems gyroscope,Mems Gyroscope for Industrial |
||

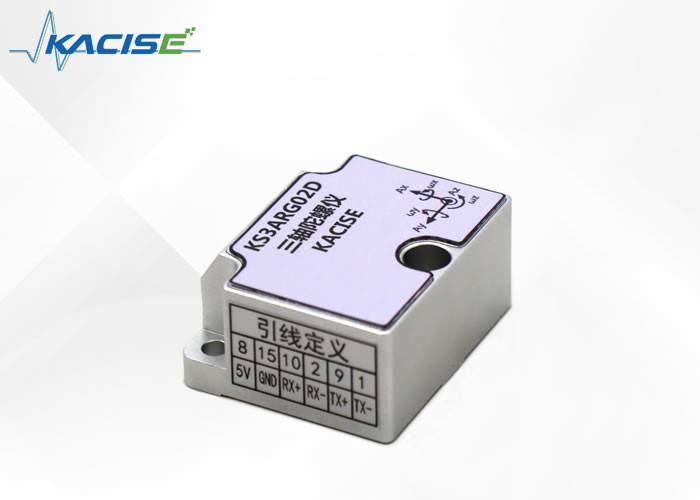

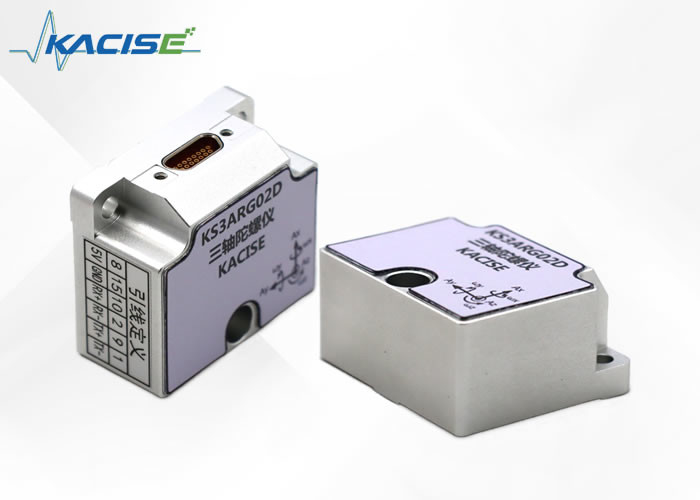

The KS3ARG02D series solid state angular rate sensor , also known as a gyro, is specifically designed for measuring angular rate . These sensors leverage state-of-the-art micromechanoelectronic system (MEMS) technology to ensure precision and durability. Developed utilizing cutting-edge bipolar metal oxide semiconductor (BIMOS) technology , these sensors incorporate a sophisticated production process that guarantees their exceptional performance and reliability.
One of the distinguishing features of the KS3ARG02D series is its spherical grid arrangement , which utilizes an advanced method of current carrier welding. This contributes significantly to the sensor's high dependability and the robustness of its packaging. Built to withstand demanding environments, the sensor includes a Self-Test function that facilitates Built-In Testing (BIT), allowing for efficient in-machine diagnostics.
Moreover, the product hosts a suite of enhancement features such as zero bias calibration and temperature drift compensation , which together ensure consistent performance under varying conditions. It has a wide measurement range , a wide bandwidth , and non-linear correction capabilities . The combination of these attributes enables accurate readings even under non-ideal circumstances.
The sensor operates across a broad temperature range , ensuring adaptability to different working environments. Its compact size and lightweight make it versatile for a variety of applications, while its capacity to resist high impact accelerations speaks to its resilience and suitability for scenarios where mechanical shocks are a concern.
Dimensions
| Performance parameter | KS3ARG02D | |
| gyro |
range (deg/s) |
±500(triaxial) |
| Zero-bias(deg/s) | ≤±0.1(In 500°/s) | |
| Zero-bias stability(deg/h) | ≤0.5allan deviation | |
| Zero-bias repeatability(deg/s) | ≤0.05 | |
| nonlinearity(%FR) | ≤0.05 | |
| Random walk(°/√h) | 0.15 | |
| Mean time between failures(Kh MTBF) | 10 | |
| Interface characteristic | power(V) | DC5 |
| power dissipation(W @5V DC) | ≤1 | |
| electrical interface | RS422 | |
| data updating rate(can set) | 2000(Hz@460800) | |
| operating environment | operating temperature(°C) | -40~+80 |
| storage temperature(°C) | -55~+85 | |
| Vibration(g @ 20~2000 Hz) | 6.06 | |
| Shock(g , 0.1 ms, 1/2 Sine) | 5000 | |
| physical property | Size(mm) | 45×39×20 |
| Weight(g) | ≤60 | |
The Kacise KS3ARG02D electronic gyroscope sensor, originating from China (Mainland), is a state-of-the-art device designed for a multitude of applications requiring precise motion detection and stability control. With a certification of explosion-proof and CE, this product is not only reliable but also adheres to stringent safety standards. The gyroscope sensor is ideal for occasions where aircraft stability control is paramount. This is attributed to its exceptional zero-bias stability of less than or equal to 0.5 Allan Deviation (deg/h) and a random walk of 0.15 (°/√h), ensuring that the aircraft's orientation is maintained with utmost precision.
With a robust resistance to high impact acceleration, the Kacise KS3ARG02D is well-suited for scenarios such as automotive crash testing, where sensors must withstand extreme forces while providing accurate readings. This sensor's high impact acceleration resistance guarantees that it continues to operate flawlessly even under the most challenging conditions. The wide bandwidth of the sensor allows it to capture a broad range of frequencies, making it versatile for applications in robotics, industrial machinery, and even in the entertainment industry for motion capture systems.
The Kacise KS3ARG02D boasts a triaxial range of ±500 (deg/s), ensuring comprehensive motion detection in all three dimensions. This feature is especially useful in the field of marine navigation, where the sensor can contribute to the stabilization of vessels on choppy waters. Furthermore, its low power dissipation of less than or equal to 1W at 5V DC makes it an energy-efficient choice for continuous operation in remote locations or for battery-powered applications.
Packaged meticulously in individual boxes with the option for standard packages or customer-specific requests, each Kacise KS3ARG02D unit is delivered with care. With a minimum order quantity of just one piece, acquiring this advanced sensor is accessible for both small and large-scale projects. The delivery time of 5-8 working days ensures that projects stay on schedule, while payment options such as T/T, Western Union, and MoneyGram provide convenience and flexibility. Kacise's promise of a supply ability of 1000 pieces per week reflects their commitment to meeting the demands of their clients without delay.
In environments with extreme temperatures, the Kacise KS3ARG02D remains reliable, with a storage temperature range of -55 to +85°C, making it suitable for both hot and cold climates. Whether it's used in unmanned aerial vehicles (UAVs), satellite positioning systems, or advanced agricultural machinery, the Kacise KS3ARG02D electronic gyroscope sensor stands out as a high-quality, versatile component for various high-tech applications.
Welcome to the Product Technical Support and Services page for the Electronic Gyroscope Sensor. Our dedicated team is committed to providing you with the highest quality support to ensure your device functions at its best. We offer a wide range of services to help you get the most out of your sensor, including:
User Manuals and Documentation: Access comprehensive user manuals, data sheets, and detailed product documentation to understand your sensor's capabilities fully and optimize its use.
FAQs and Knowledge Base: Our extensive FAQs and knowledge base contain answers to common questions and provide valuable information to troubleshoot issues quickly and independently.
Our commitment to excellence ensures that you receive the support you need when you need it. For any further assistance, please refer to our contact page for ways to get in touch with our support team.
The Electronic Gyroscope Sensor is securely encased in anti-static packaging to prevent electrostatic discharge that could damage the sensitive electronic components. The packaging is designed to fit the product snugly, with custom-formed foam inserts that cushion the sensor during transit.
For added protection, the sensor is sealed within a moisture barrier bag to protect against humidity and environmental factors. This is accompanied by a desiccant pack to absorb any incidental moisture that may be present inside the packaging during shipment.
The product box is constructed from high-quality, durable cardboard that provides structural strength and integrity, ensuring that the sensor arrives at its destination undamaged. The exterior of the box is clearly marked with fragile handling symbols and the orientation arrows to ensure proper handling by shipping carriers.
Each package includes a detailed instruction manual and specifications sheet to assist with proper installation and use of the Electronic Gyroscope Sensor. Additionally, the package contains all necessary mounting hardware and accessories required for installation.
Before shipping, each package is weighed and measured to ensure compliance with carrier regulations and to provide accurate shipping cost calculations. The sensor's serial number is recorded, and a tracking number is assigned to the package, enabling the customer to monitor the shipment's progress until delivery.
