| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KS3ARG02D |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Power: | DC5(V) | Storage Temperature: | -55~+85(°C) |
|---|---|---|---|
| Zero-bias: | ≤±0.1(In 500°/s)(deg/s) | Electrical Interface: | RS422 |
| Zero-bias Stability: | ≤0.5allan Deviation(deg/h) | Vibration: | 6.06(g @ 20~2000 Hz) |
| Weight: | ≤60100(g) | Range: | ±500(triaxial)(deg/s) |
| High Light: | Vibration Resistance Mems Gyro,RS422 Interface Mems Gyro,Temperature Drift Compensation Mems Gyro |
||

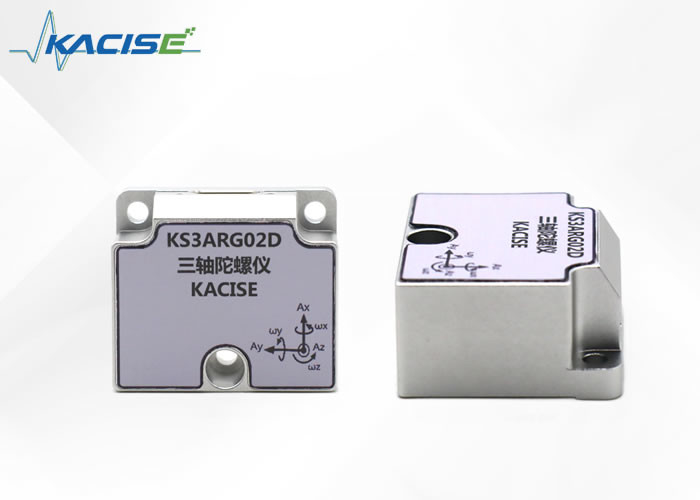

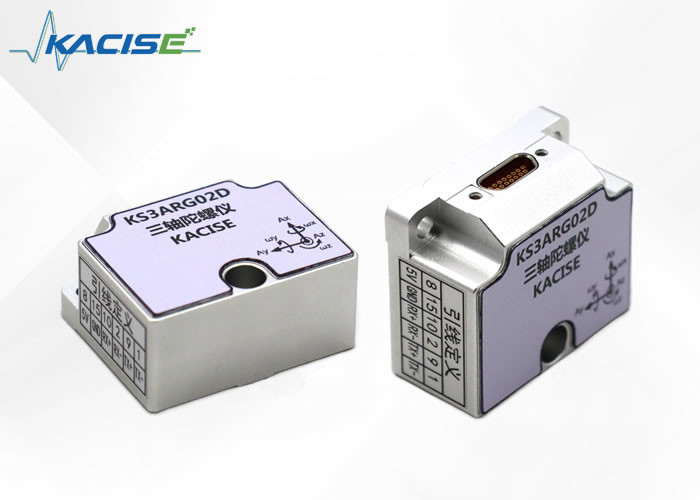

The KS3ARG02D series solid state angular rate sensor, commonly referred to as a gyro, is an advanced device designed to accurately measure angular rates. Utilizing cutting-edge micromechanical electronic system (MEMS) technology, this sensor incorporates chips created with the bipolar metal oxide semiconductor (BIMOS) technology production process. This innovative combination results in a highly reliable and durable sensor suited for various applications.
The construction of this sensor includes a spherical grid arrangement that utilizes current carrier welding technology, ensuring a high degree of structural integrity. One of the standout features of the KS3ARG02D series is its built-in Self-Test function, which facilitates onboard in-machine detection (BIT), enhancing the operational safety and maintenance of the system it's integrated into.
Moreover, this high-performance product is equipped with multiple functionalities to ensure precise measurements. It offers zero bias calibration for accuracy, temperature drift compensation for stability across temperature changes, and a wide measurement range for versatility. The sensor's wide bandwidth and non-linear correction features contribute to its high-grade performance in various conditions and applications. With a broad operating temperature range, the KS3ARG02D series is adaptable to diverse environmental conditions.
Its compact size, lightweight design, and high resistance to impact acceleration make it an ideal choice for use in space-constrained and dynamic environments where performance and reliability are paramount. Whether for industrial, aeronautic, or automotive applications, the KS3ARG02D solid state angular rate sensor stands out as a state-of-the-art solution for precise angular rate measurement.
Dimensions
| Performance parameter | KS3ARG02D | |
| gyro |
range (deg/s) |
±500(triaxial) |
| Zero-bias(deg/s) | ≤±0.1(In 500°/s) | |
| Zero-bias stability(deg/h) | ≤0.5allan deviation | |
| Zero-bias repeatability(deg/s) | ≤0.05 | |
| nonlinearity(%FR) | ≤0.05 | |
| Random walk(°/√h) | 0.15 | |
| Mean time between failures(Kh MTBF) | 10 | |
| Interface characteristic | power(V) | DC5 |
| power dissipation(W @5V DC) | ≤1 | |
| electrical interface | RS422 | |
| data updating rate(can set) | 2000(Hz@460800) | |
| operating environment | operating temperature(°C) | -40~+80 |
| storage temperature(°C) | -55~+85 | |
| Vibration(g @ 20~2000 Hz) | 6.06 | |
| Shock(g , 0.1 ms, 1/2 Sine) | 5000 | |
| physical property | Size(mm) | 45×39×20 |
| Weight(g) | ≤60 | |
The Kacise KS3ARG02D is a high-performance 3 axis MEMS gyroscope sensor, meticulously engineered to cater to a wide array of application occasions and scenarios. This sensor, with its brand name Kacise, is an exemplar of precision and reliability and is designed to suit the needs of various industries due to its robust features and specifications.
With its origin from China (Mainland), the Kacise KS3ARG02D is backed by quality assurance certifications like the certificate of explosion-proof and CE marking, ensuring that it meets the stringent international standards for safety and performance. Such certifications make this product suitable for use even in hazardous environments where safety is of paramount importance.
The Kacise KS3ARG02D boasts a zero bias calibration feature, which is critical for applications requiring high accuracy and stability. This attribute ensures that any drift or deviation in the sensor's output due to bias is minimized, providing users with consistent and precise readings over time, making it an ideal choice for navigation, robotics, and aerospace applications.
Given its small size, the KS3ARG02D can be effortlessly integrated into a variety of systems without adding significant weight or taking up excessive space. This feature is particularly beneficial for portable and handheld devices, where size and weight constraints are critical factors. The sensor's weight is ≤60100(g), making it one of the lightest in its category.
The robust design of the Kacise KS3ARG02D ensures that it can withstand extreme conditions with an operating temperature range of -40 to +80(°C) and a high shock resistance of 5000(g, 0.1 Ms, 1/2 Sine), making it reliable for use in outdoor and industrial settings. Additionally, the sensor's vibration endurance of 6.06(g @ 20~2000 Hz) further underscores its capability to perform in high-vibration environments without degradation of performance.
For those requiring the Kacise KS3ARG02D, the minimum order quantity is just one piece, and each unit is delivered in an individual box, with standard packages ensuring the safety and integrity of the product during transportation. Custom packaging requests can also be accommodated. With a delivery time of 5-8 working days, customers can expect prompt service. Plus, the supply ability stands at 1000 pieces per week, indicating the readiness to fulfill bulk orders as needed.
Payment for the Kacise KS3ARG02D is convenient and flexible, with options such as T/T, Western Union, and MoneyGram. This versatility in payment terms ensures that customers around the globe can secure their purchase in a manner that suits their preferences.
In summary, the Kacise KS3ARG02D, with its exceptional zero bias calibration, small size, and reliable 3 axis MEMS gyroscope functionality, is a versatile and essential component for precision-oriented systems in industries ranging from aerospace to automotive, and from robotics to consumer electronics, where accuracy and durability are non-negotiable.
Welcome to the Product Technical Support and Services page for the Electronic Gyroscope Sensor. Our dedicated team is committed to providing you with the highest quality support to ensure your device functions at its best. We offer a wide range of services to help you get the most out of your sensor, including:
User Manuals and Documentation: Access comprehensive user manuals, data sheets, and detailed product documentation to understand your sensor's capabilities fully and optimize its use.
FAQs and Knowledge Base: Our extensive FAQs and knowledge base contain answers to common questions and provide valuable information to troubleshoot issues quickly and independently.
Our commitment to excellence ensures that you receive the support you need when you need it. For any further assistance, please refer to our contact page for ways to get in touch with our support team.
Product Packaging for Electronic Gyroscope Sensor:
Our Electronic Gyroscope Sensor is securely encased in a static-free, cushioned package, ensuring the delicate components are well-protected against shocks and vibrations that may occur during handling. Each sensor is individually boxed with a custom-fit foam insert that cradles the sensor to prevent movement within the box. The outer packaging is a durable cardboard box that is sealed and labeled with the product information and handling instructions.
Shipping Instructions for Electronic Gyroscope Sensor:
All shipments of our Electronic Gyroscope Sensor are dispatched via trusted logistics partners to ensure timely and safe delivery. The products are shipped in sturdy, outer shipping cartons that can withstand the rigors of transit. Each carton is clearly marked with the appropriate shipping labels, including "Fragile" and "Handle with Care" to alert carriers of the sensitive nature of the contents. Tracking information is provided for each shipment, enabling both the sender and recipient to monitor the progress of the delivery. We recommend inspecting the package upon arrival and reporting any damage immediately to the carrier and our customer service team.
