| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KS3ARG02D |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Range: | ±500(triaxial)(deg/s) | Nonlinearity: | ≤0.05(%FR) |
|---|---|---|---|
| Storage Temperature: | -55~+85(°C) | Shock: | 5000(g , 0.1 Ms, 1/2 Sine) |
| Operating Temperature: | -40~+80(°C) | Weight: | ≤60100(g) |
| Electrical Interface: | RS422 | Random Walk: | 0.15(°/√h) |
| High Light: | mems Precision RS422 gyroscope,Shock Resistant Precision RS422 gyroscope,Mems Precision RS422 gyroscope |
||

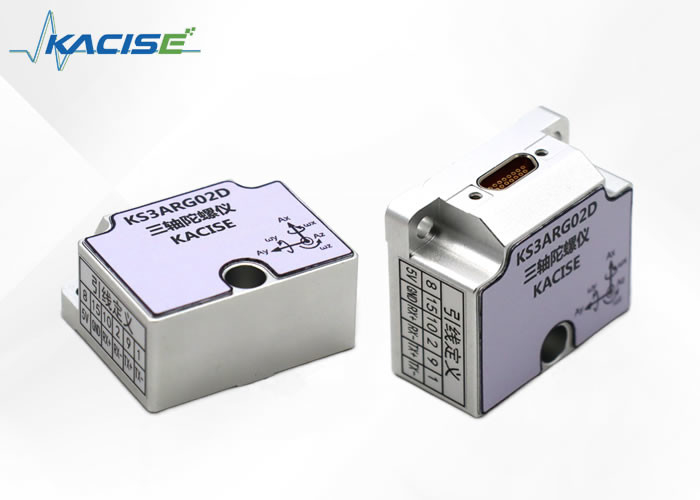

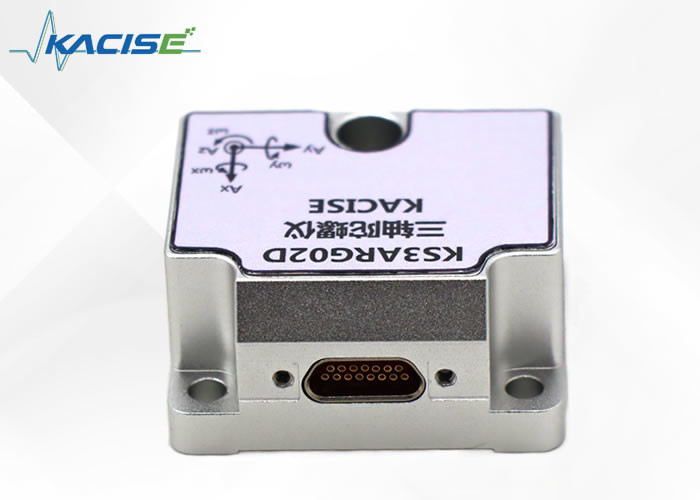

The KS3ARG02D series solid state angular rate sensor , also known as a gyro, is designed to precisely measure angular rates. This advanced sensor incorporates micromechanoelectronic system (MEMS) technology chips. These chips benefit from the cutting-edge bipolar metal oxide semiconductor (BIMOS) technology production process , along with a sophisticated spherical grid layout employed for current carrier welding.
Reputed for its high reliability and durability under rigorous conditions (high package ruggedness), this sensor enhances operational confidence. It includes a built-in Self-Test function , enabling it to perform internal diagnostics to ensure optimal functionality ( in-machine detection, or BIT ).
In its feature set, the KS3ARG02D sensor offers a range of functionalities. These include zero bias calibration , temperature drift compensation , wide measurement range , broad bandwidth capabilities , and non-linear correction . The versatility of these functions is complemented by the sensor's ability to operate across a broad temperature spectrum , its compact size , lightweight design , and exceptional resilience to high impact acceleration .
Dimensions
| Performance parameter | KS3ARG02D | |
| gyro |
range (deg/s) |
±500(triaxial) |
| Zero-bias(deg/s) | ≤±0.1(In 500°/s) | |
| Zero-bias stability(deg/h) | ≤0.5allan deviation | |
| Zero-bias repeatability(deg/s) | ≤0.05 | |
| nonlinearity(%FR) | ≤0.05 | |
| Random walk(°/√h) | 0.15 | |
| Mean time between failures(Kh MTBF) | 10 | |
| Interface characteristic | power(V) | DC5 |
| power dissipation(W @5V DC) | ≤1 | |
| electrical interface | RS422 | |
| data updating rate(can set) | 2000(Hz@460800) | |
| operating environment | operating temperature(°C) | -40~+80 |
| storage temperature(°C) | -55~+85 | |
| Vibration(g @ 20~2000 Hz) | 6.06 | |
| Shock(g , 0.1 ms, 1/2 Sine) | 5000 | |
| physical property | Size(mm) | 45×39×20 |
| Weight(g) | ≤60 | |
The Kacise KS3ARG02D Electronic Gyroscope Sensor is a cutting-edge sensor that offers precise angular rate measurement and outstanding zero bias calibration capabilities. Manufactured in China (Mainland), this device is a testament to the meticulous engineering and innovation that Kacise is known for. The KS3ARG02D model is ideal for a multitude of applications where accurate detection of motion is paramount.
This gyroscope sensor boasts a nonlinearity of less than or equal to 0.05(%FR), ensuring minimal deviation and high precision in the measurement of angular rates. Its range of ±500 (triaxial) (deg/s) makes it versatile for various demanding applications. With a compact size of 45×39×20(mm), the KS3ARG02D is an exemplar of small size and efficiency, making it suitable for integration in space-constrained environments.
One of the remarkable features of the Kacise gyroscope is its zero-bias stability of less than or equal to 0.5allan Deviation (deg/h), which means it maintains its accuracy over time, minimizing errors in readings. This level of stability is essential for applications such as geological exploration, where precise measurements can be the difference between success and failure.
Each KS3ARG02D unit comes with a certificate of explosion-proof and CE certification, underlining its safety and compliance with international standards. With a minimum order quantity of just 1 piece, Kacise makes it accessible for both small and large projects. Packaging details highlight the care with which each unit is handled, providing an individual box for every unit and standard packages for bulk orders, with customization available upon request.
Delivery of the KS3ARG02D is promised within 5-8 working days, demonstrating Kacise's commitment to efficiency. Payment terms are flexible, accepting T/T, Western Union, and MoneyGram, catering to a wide range of customer preferences. Moreover, with a supply ability of 1000 pieces per week, Kacise ensures that demand is met promptly, regardless of the scale of the requirement.
The KS3ARG02D is an ideal choice for intricate systems requiring reliable and consistent performance. The sensor's power requirement of DC5(V) allows for easy integration into various power configurations, making it a versatile component for numerous applications. From robotics to aerospace, automotive, and even consumer electronics, the precision and small size of the Kacise gyroscope sensor can significantly enhance the capabilities of these systems.
Our Electronic Gyroscope Sensor comes with comprehensive technical support and services designed to ensure your experience with our product is seamless and efficient. Our team of experts is dedicated to providing you with the following support services:
User Manual and Documentation: Our product comes with a detailed user manual that includes specifications, usage instructions, and troubleshooting tips. Additional documentation is available for advanced configurations and integration scenarios.
Customer Service: Our customer service team is dedicated to ensuring your satisfaction with our products and support. We are committed to providing prompt and courteous service to address any concerns you may have.
We strive to provide exceptional support and services to all our customers. Our goal is to ensure that your experience with our Electronic Gyroscope Sensor is positive and that our product meets your expectations for performance and reliability.
The Electronic Gyroscope Sensor is meticulously packaged to ensure maximum protection during transit. Each sensor is enclosed in an anti-static bag to safeguard against electrostatic discharges. This bag is then placed within a custom-molded foam insert that fits snugly into our durable, branded box, providing additional cushioning and stability.
For shipping, the individual boxes are grouped and placed into a larger, sturdy cardboard carton that is designed to withstand the rigors of transport. The carton is sealed with heavy-duty packing tape and labeled with all necessary shipping information, including a barcode for tracking and a fragile item warning to ensure careful handling. Each shipment is accompanied by a packing slip that details the contents and provides instructions for the proper handling and installation of the Electronic Gyroscope Sensor.
