| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KS3ARG02D |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Zero-bias Repeatability: | ≤0.05(deg/s) | Nonlinearity: | ≤0.05(%FR) |
|---|---|---|---|
| Random Walk: | 0.15(°/√h) | Range: | ±500(triaxial)(deg/s) |
| Vibration: | 6.06(g @ 20~2000 Hz) | Zero-bias: | ≤±0.1(In 500°/s)(deg/s) |
| Weight: | ≤60100(g) | Power Dissipation: | ≤1(W @5V DC) |
| High Light: | Solid State Angular Rate Sensors,Electronic Gyroscope Sensor for angular rate,Precision Electronic Gyroscope Sensor |
||

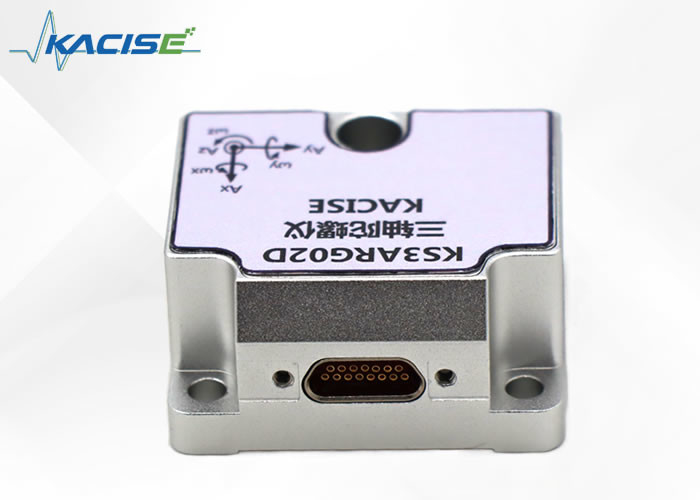

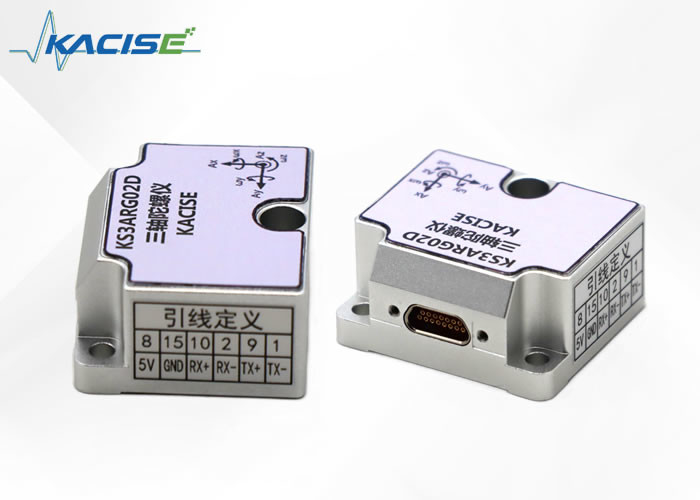

The KS3ARG02D series solid state angular rate sensors , commonly referred to as gyroscopes, are precision instruments designed for the measurement of angular rate. These sensors are at the cutting-edge of technology, employing Microelectromechanical Systems (MEMS) technology in their chip design.
The core of the MEMS technology used in KS3ARG02D series is built upon the Bipolar Metal Oxide Semiconductor (BIMOS) technology production process. This advanced manufacturing technique, coupled with a spherical grid arrangement for current carrier welding technology, ensures a superior level of performance.
One of the most notable attributes of these gyroscopes is their high reliability and high-package ruggedness , making them suitable for use in environments where durability is a necessity. In addition, the inclusion of a Self-Test functionality allows for on-the-fly in-machine diagnostics, commonly known as Built-In Test (BIT), enhancing the overall operational safety and reliability.
To further refine their performance, these sensors offer several calibration and compensation features such as zero bias calibration , temperature drift compensation , wide measurement range , wide bandwidth , and non-linear correction . As a result, the KS3ARG02D series maintains accuracy under varying conditions and over a broad spectrum of applications.
Furthermore, the products are designed to operate over a wide temperature range . Their compact size , lightweight build, and high impact acceleration resistance make them an ideal choice for applications where space efficiency and resilience to physical shocks are key considerations.
Dimensions
| Performance parameter | KS3ARG02D | |
| gyro |
range (deg/s) |
±500(triaxial) |
| Zero-bias(deg/s) | ≤±0.1(In 500°/s) | |
| Zero-bias stability(deg/h) | ≤0.5allan deviation | |
| Zero-bias repeatability(deg/s) | ≤0.05 | |
| nonlinearity(%FR) | ≤0.05 | |
| Random walk(°/√h) | 0.15 | |
| Mean time between failures(Kh MTBF) | 10 | |
| Interface characteristic | power(V) | DC5 |
| power dissipation(W @5V DC) | ≤1 | |
| electrical interface | RS422 | |
| data updating rate(can set) | 2000(Hz@460800) | |
| operating environment | operating temperature(°C) | -40~+80 |
| storage temperature(°C) | -55~+85 | |
| Vibration(g @ 20~2000 Hz) | 6.06 | |
| Shock(g , 0.1 ms, 1/2 Sine) | 5000 | |
| physical property | Size(mm) | 45×39×20 |
| Weight(g) | ≤60 | |
The Kacise KS3ARG02D is a high-precision electronic gyroscope sensor, known for its robustness and reliability. Manufactured in China (Mainland), this device holds a certificate of explosion-proof and CE certification, ensuring compliance with international safety and quality standards. The gyroscope in MEMS technology (Micro-Electro-Mechanical Systems) makes it an essential component in various applications where precision and stability are crucial.
Appropriate for a wide range of occasions and scenarios, the Kacise KS3ARG02D is particularly suited for industries that require accurate orientation and navigation information. Its MEMS gyrocompass capabilities make it an excellent choice for maritime navigation, helping ships maintain their course in the absence of external references. This sensor is also highly effective in unmanned aerial vehicles (UAVs), where stability and flight control are paramount for safe operation.
With a minimum order quantity of just one piece, the Kacise KS3ARG02D is accessible to both small and large-scale operations. Each unit comes in its individual box, with all boxes packed in standard packages, ensuring the product's safety during transportation. Custom packaging requests can also be accommodated. The delivery time for this sensor is within 5-8 working days after the confirmation of payment, which can be made through T/T, Western Union, or MoneyGram.
The Kacise KS3ARG02D boasts a wide operating temperature range from -40 to +80 (°C), and a storage temperature range from -55 to +85 (°C), making it suitable for extreme environmental conditions. Weighing less than 100 grams and with a vibration resistance of 6.06 g at 20~2000 Hz, this sensor is designed to withstand harsh environments without compromising its performance. The low random walk value of 0.15 (°/√h) further exemplifies the sensor's ability to provide stable and reliable readings over time.
With a supply ability of 1000 pieces per week, Kacise is prepared to meet the demands of various sectors requiring high-quality gyroscope sensors. The gyroscope in MEMS technology offers significant advantages in terms of size, power consumption, and reliability over traditional
